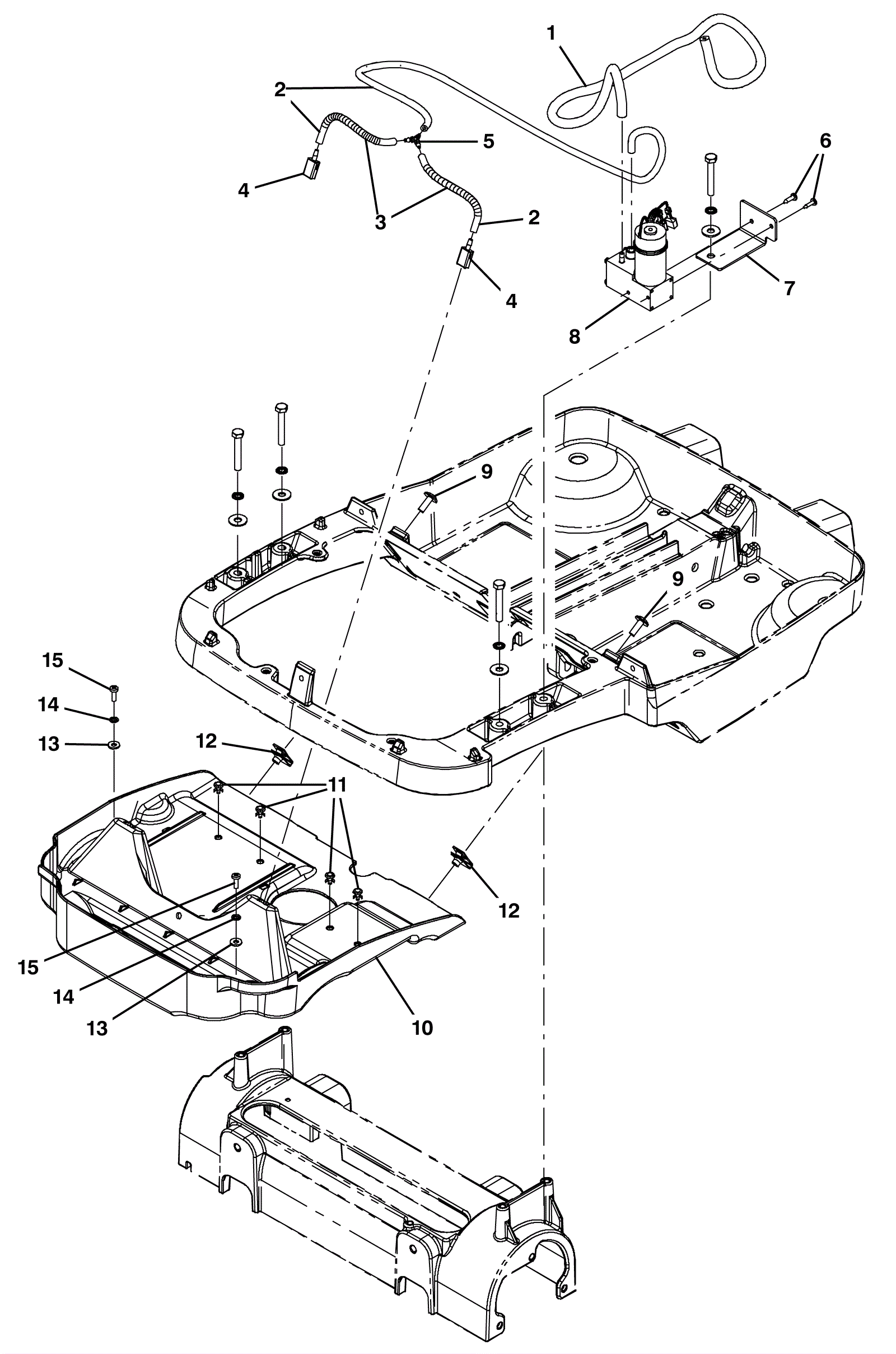

SPEED SCRUB 15 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6824 Tubing 3 7/40 x 9 inch $34.87 1 usually ships 5-16 days
2 275-6826 1/8 inch tubing $44.22 1 usually ships 5-16 days
3 275-6827 Sleeve $11.88 2 usually ships 1-5 days
4 275-6828 Nozzle $24.86 2 usually ships 5-16 days
5 275-6829 Y fitting $6.05 1 usually ships 5-16 days
6 175-2146 Screw 6-20 x 1/2 pan head $3.04 2 usually ships 5-16 days
7 275-6830 Solution pump mounting bracket $15.95 1 usually ships 1-5 days
8 275-7324 Liquid diaphragm pump $750.09 1 usually ships 5-16 days
9 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
10 275-6831 Nozzle splash shroud $18.15 1 usually ships 5-16 days
11 175-4600 Snap rivet $5.15 4 usually ships 1-5 days
12 175-2291 Nut 1/4-20 speed clip $3.96 2 ships same day
13 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
14 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
15 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 2 ships same day
