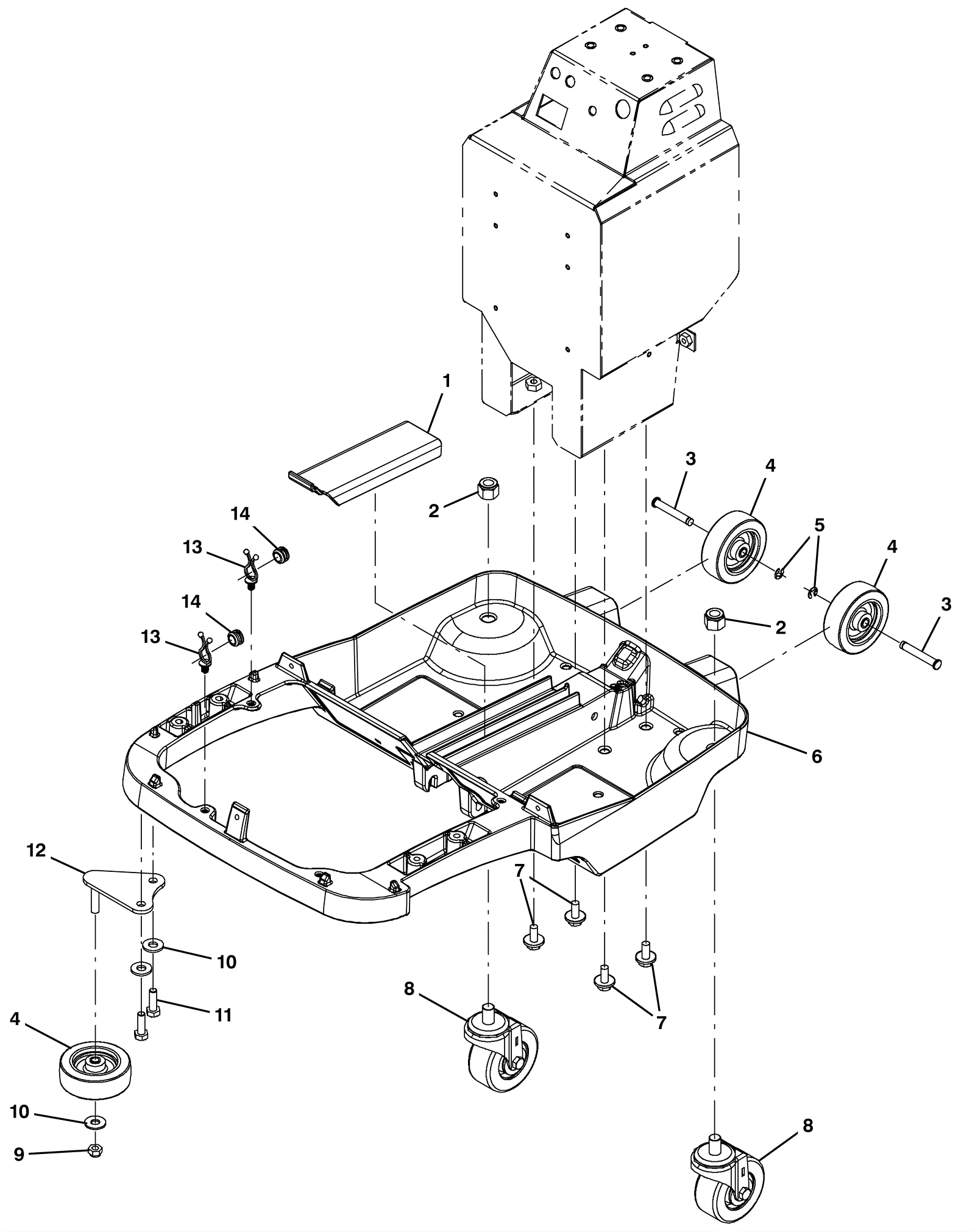

SPEED SCRUB 15 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6809 Rear frame cover $10.01 1 usually ships 10-16 days
2 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
3 275-2356 Clevis pin $9.13 2 ships same day
4 175-0117 Guide wheel with bushing $10.67 3 ships same day
5 275-2355 Retaining ring $3.30 2 ships same day
6 275-5257 Frame $343.31 1 usually ships 1-5 days
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 10-16 days
8 175-3508 3 inch swivel caster wheel $69.63 2 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
10 999-0024 Washer 5/16 flat stainless steel $1.34 3 usually ships 12-18 days
11 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
12 275-5258 Bumper wheel bracket $33.88 1 usually ships 10-16 days
13 175-2095 Keeper clip $4.22 2 usually ships 10-16 days
