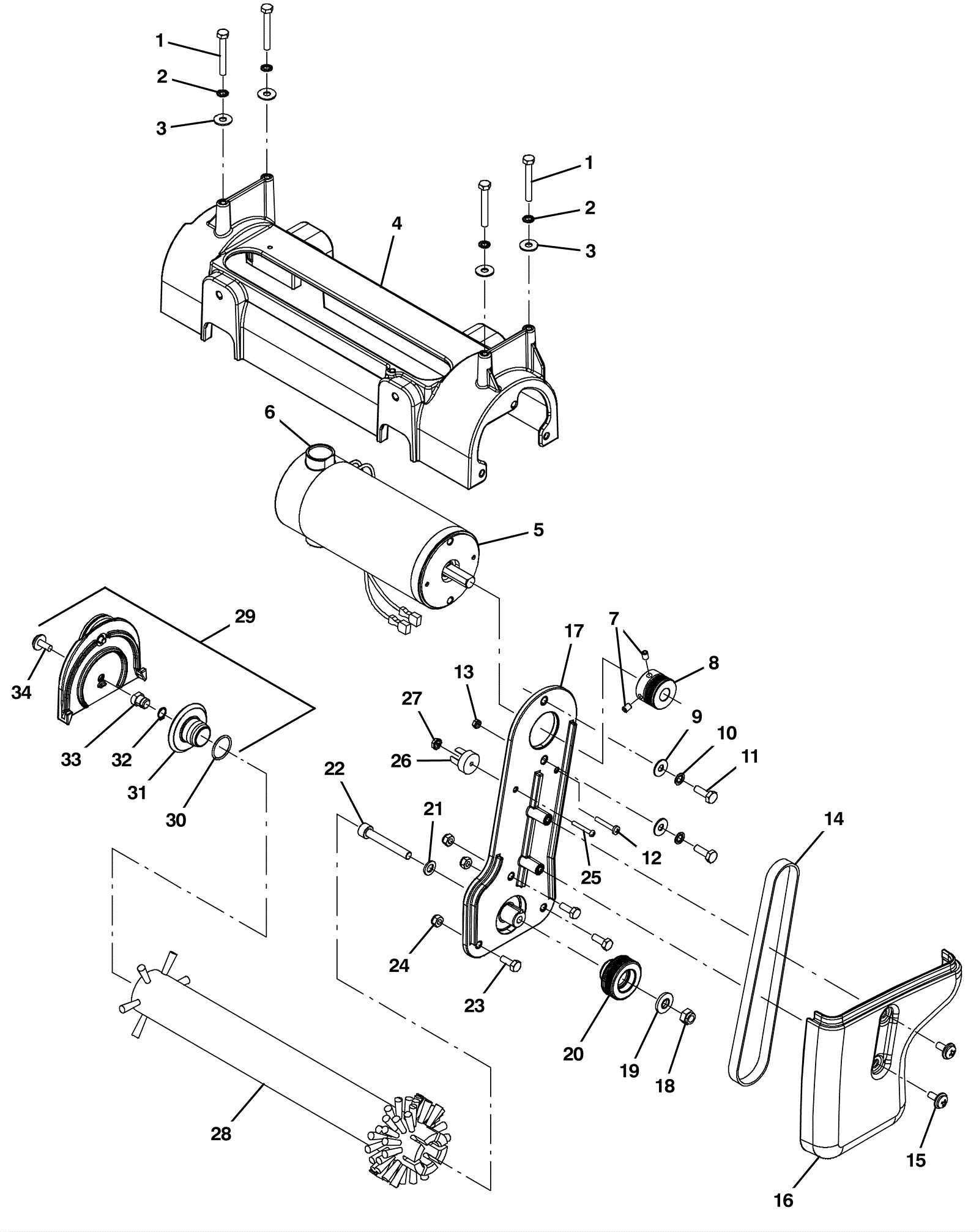

SS15 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0781 Screw M6-1 x 45mm hex head $0.99 4 ships same day
2 175-4544 Washer M6 locking $4.49 4 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
4 275-2401 Brush housing $234.63 1 usually ships 10-13 days
5a 275-2402 120V brush motor $478.72 1 (includes 6) ships same day
5b 375-1315 Motor sheave kit $853.93 1 (before SN 10507590) (before SN 60012391) usually ships 1-5 days
6 275-9190 Carbon brush (pkg of 2) $33.11 2 ships same day
7 175-9339 Screw M6-1 x 8mm set socket $5.28 2 usually ships 10-13 days
8a 275-6822 Sheave $36.52 1 usually ships 10-13 days
8b 475-2097 SHEAVE KIT, COVER [SS 15 inch] $170.50 1 (before SN 10507590) (before SN 60012391) usually ships 10-13 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 175-4544 Washer M6 locking $4.49 2 ships same day
11 275-2405 Screw 1/4-20 x 3/4 hex head $12.65 2 usually ships 10-13 days
12 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 1 ships same day
13 175-4290 Nut M4 x .70mm hex $3.17 1 usually ships 1-5 days
14 275-9126 Belt $70.62 1 usually ships 10-13 days
15 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $1.85 2 ships same day
16 375-1316 Belt cover $20.46 1 usually ships 1-5 days
17a 275-6823 Motor mount bracket kit $112.64 1 (includes 18-22) usually ships 10-13 days
17b 475-2205 BRACKET KIT, MOUNT, MOTOR, W/ BRG [T1] $232.76 1 (includes 18-22) (before SN 10507590) (before SN 60012391) usually ships 10-13 days
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
19 999-1407 Washer 5/16 belleville $3.04 1 ships same day
20a 275-9195 Sheave $5.28 1 usually ships 10-13 days
20b 475-2097 SHEAVE KIT, COVER [SS 15 inch] $170.50 1 (before SN 10507590) (before SN 60012391) usually ships 10-13 days
21 275-6722 Washer flat $1.98 1 usually ships 10-13 days
22 999-1828 Screw M8-1.25 x 55mm socket head stainless steel $4.54 1 ships same day
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
24 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
25 999-0102 Screw 6-32 x 1 round head slotted zinc plated $0.99 1 ships same day
26 175-4009 Rectifier $35.97 1 usually ships 10-13 days
27 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
28a 275-9141 15 inch nylon criss-cross scrubbing brush - CYLINDRICAL $237.82 1 usually ships 10-13 days
28b 275-5823 15 inch polypropylene scrubbing brush - CYLINDRICAL $283.14 1 usually ships 10-13 days
28c 275-2420 15 inch abrasive criss-cross stripping brush - CYLINDRICAL $395.45 1 usually ships 10-13 days
29 275-2412 Brush door kit with hardware $232.76 1 (includes 30a-34) ships same day
30a 675-9767 Brush repair door kit $68.09 1 (includes 30b-34) usually ships 10-13 days
30b 275-2413 Seal $3.56 1 ships same day
31 275-2414 Brush idler hub $20.57 1 ships same day
32 275-2415 Retaining ring $3.30 1 ships same day
33 275-2416 Shaft idler plug $22.77 1 ships same day
34 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $1.85 1 ships same day
