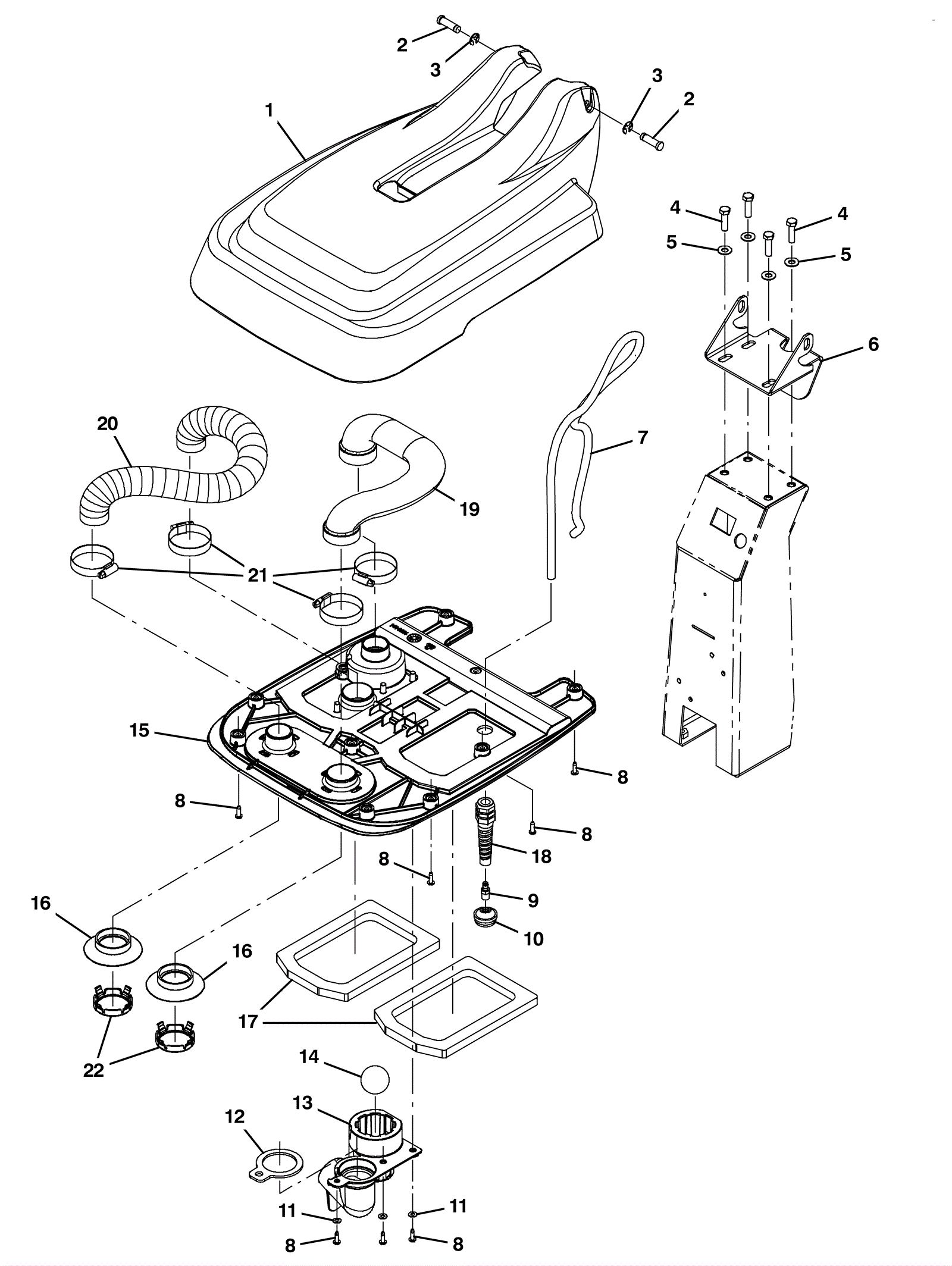

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1318
|
Upper tank cover |
1 |
|
|
2 |
275-2380
|
Clevis pin |
2 |
|
|
3 |
175-0814
|
Retaining ring (Tennant Industrial) |
2 |
|
|
4 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
4 |
|
|
5 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
6 |
275-2381
|
Pivot bracket |
1 |
|
|
7 |
275-9121
|
Solution hose 1/4 x 42 inch |
1 |
|
|
8 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
13 |
|
|
9 |
275-2382
|
Fitting |
1 |
|
|
10 |
275-9131
|
Screen filter |
1 |
|
|
11 |
999-0393
|
Washer 3/16 flat aluminum |
2 |
|
|
12 |
275-2397
|
Gasket |
1 |
|
|
13 |
275-9128
|
Float cage |
1 |
|
|
14 |
275-9129
|
Float ball |
1 |
|
|
15 |
275-2398
|
Tank cover |
1 |
(includes 16-18) |
|
16 |
275-2383
|
Seal |
2 |
|
|
17 |
275-9123
|
Recovery lid gasket |
2 |
|
|
18 |
175-5502
|
Strain relief |
1 |
|
|
19 |
275-2384
|
Recovery hose |
1 |
|
|
20 |
275-9120
|
Vacuum hose |
1 |
|
|
21 |
175-2057
|
Hose clamp |
4 |
|
|
22 |
275-6390
|
Seal retaining clip |
2 |
(SN 1000000-20000000) |
|
