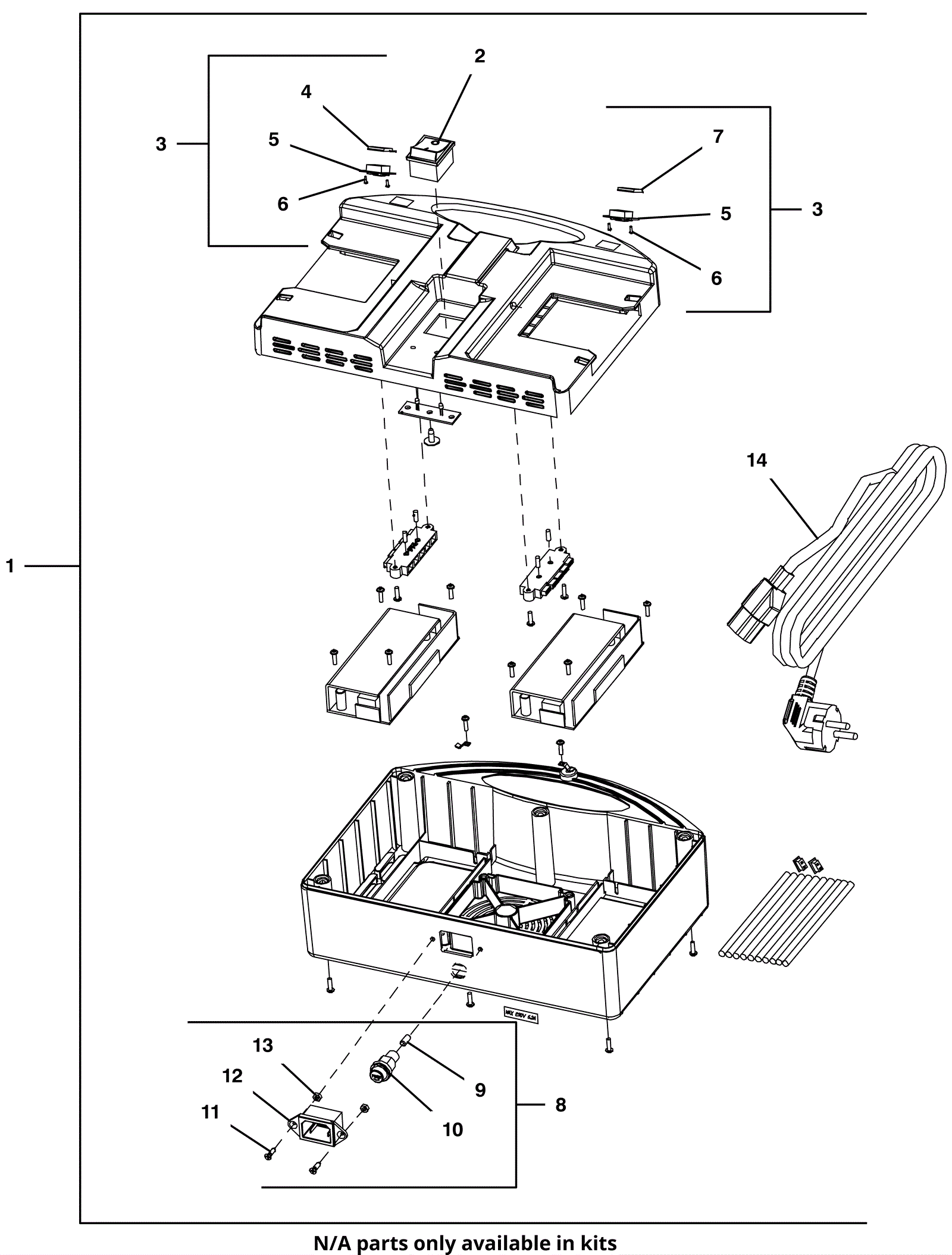

I-MOP XL Battery Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-4164 Battery charger $676.39 1 (includes 2-14a) usually ships 10-16 days
2 375-4165 Charger switch $48.62 1 usually ships 10-16 days
3 375-4166 Voltage light $37.07 1 (includes 4-7) usually ships 10-16 days
4 N/A Not available Call for price 1 (right hand cover) (only available with 1 and 3) usually ships 3-26 days
5 N/A Not available Call for price 2 (voltage display) (only available with 1 and 3) usually ships 3-26 days
6 N/A Not available Call for price 4 (screw M2 x 5mm) (only available with 1 and 3) usually ships 3-26 days
7 N/A Not available Call for price 1 (left hand cover) (only available with 1 and 3) usually ships 3-26 days
8 375-4167 Charger receptacle kit $39.82 1 (includes 9-13) usually ships 10-16 days
9 N/A Not available Call for price 1 (fuse) (only available with 1 and 8) usually ships 3-26 days
10 N/A Not available Call for price 1 (fuse base) (only available with 1 and 8) usually ships 3-26 days
11 N/A Not available Call for price 2 (screw) (only available with 1 and 8) usually ships 3-26 days
12 N/A Not available Call for price 1 (receptical inlet) (only available with 1 and 8) usually ships 3-26 days
13 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
14a 375-4168 Power cord $63.58 1 (standard) usually ships 10-16 days
14b 475-2078 CORD, POWER [UL 3 PIN, 11 METERS LG] $146.85 1 (optional) usually ships 10-16 days
