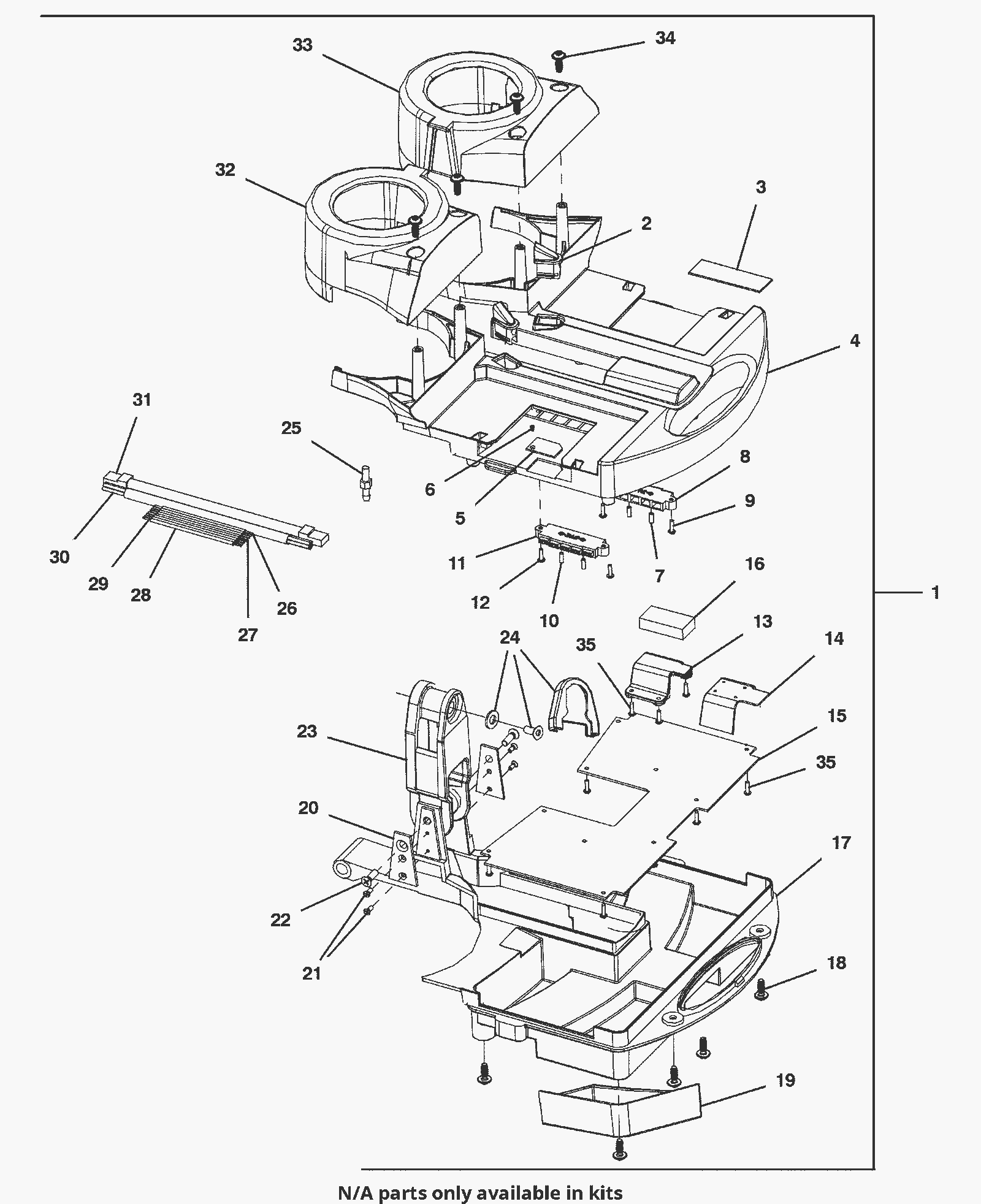

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4156
|
Handle lever assembly |
1 |
(includes 2a-35) |
|
2a |
375-9029
|
Main lever cover |
1 |
(includes 2b-6) |
|
2b |
N/A
|
Not available |
2 |
(seal) (only available with 1 and 2a) |
|
3 |
N/A
|
Not available |
1 |
(strong magnets decal) (only available with 1 and 2a) |
|
4 |
N/A
|
Not available |
1 |
(main lever cover) (only available with 1 and 2a) |
|
5 |
N/A
|
Not available |
1 |
(cover) (only available with 1 and 2a) |
|
6 |
N/A
|
Not available |
1 |
(screw) (only available with 1 and 2a) |
|
7a |
375-9030
|
Right hand battery connector |
1 |
(includes 7b-9) |
|
7b |
N/A
|
Not available |
2 |
(pin) (only available with 1 and 7a) |
|
8 |
N/A
|
Not available |
1 |
(connector male) (only available with 1 and 7a) |
|
9 |
N/A
|
Not available |
2 |
(screw) (only available with 1 and 7a) |
|
10a |
375-9031
|
Left hand battery connector |
1 |
(includes 10b-12) |
|
10b |
N/A
|
Not available |
2 |
(pin) (only available with 1 and 10a) |
|
11 |
N/A
|
Not available |
1 |
(male connector) (only available with 1 and 10a) |
|
12 |
N/A
|
Not available |
2 |
(screw) (only available with 1 and 10a) |
|
13a |
375-9460
|
Battery control circuitboard |
1 |
(includes 13b-16) |
|
13b |
N/A
|
Not available |
1 |
(magnet unit top holder) (only available with 1 and 13a) |
|
14 |
N/A
|
Not available |
1 |
(cover) (only available with 1 and 13a) |
|
15 |
375-9460
|
Battery control circuitboard |
1 |
|
|
16 |
N/A
|
Not available |
|
(magnet) (only available with 1 and 13a) |
|
17b |
475-2380
|
HOUSING, LEVER, MAIN [IMOP] |
1 |
(I-MOP Model) |
|
18 |
N/A
|
Not available |
8 |
(screw) (only available with 1 and 17a) |
|
19 |
N/A
|
Not available |
1 |
(name plate) (only available with 1) |
|
20a |
375-9034
|
Hinge plate assembly |
1 |
(includes 20b-22) |
|
20b |
475-2380
|
HOUSING, LEVER, MAIN [IMOP] |
2 |
|
|
21 |
475-1615
|
SCREW, FLT, SOC, M3 X 8 SS NL [10X,IMOP] |
4 |
|
|
22 |
475-1557
|
SCREW, FLT, SOC, M5 X 16 NL [10X, IMOP] |
2 |
|
|
23 |
375-4158
|
Lever hinge assembly |
1 |
(includes 24) |
|
24 |
375-9035
|
Hardware kit |
1 |
|
|
25 |
375-9036
|
Pin |
2 |
|
|
26a |
375-9037
|
Main lever assembly |
1 |
(inlcudes 26b-31) |
|
26b |
N/A
|
Not available |
2 |
(connector and wires) (only available with 1 and 26a) |
|
27 |
N/A
|
Not available |
2 |
(connector and wires) (only available with 1 and 26a) |
|
28 |
N/A
|
Not available |
2 |
(wires for brush unit) (only available with 1 and 26a) |
|
29 |
N/A
|
Not available |
2 |
(wires for brush unit) (only available with 1 and 26a) |
|
30 |
N/A
|
Not available |
1 |
(power cable wires) (only available with 1 and 26a) |
|
31 |
475-1527
|
Cable |
1 |
|
|
32 |
N/A
|
Not available |
1 |
(cover) (only available with 1) |
|
33 |
N/A
|
Not available |
1 |
(cover) (only available with 1) |
|
34 |
N/A
|
Not available |
4 |
(screw) (only available with 1) |
|
35 |
N/A
|
Not available |
12 |
(screw) (only available with 1) |
|
