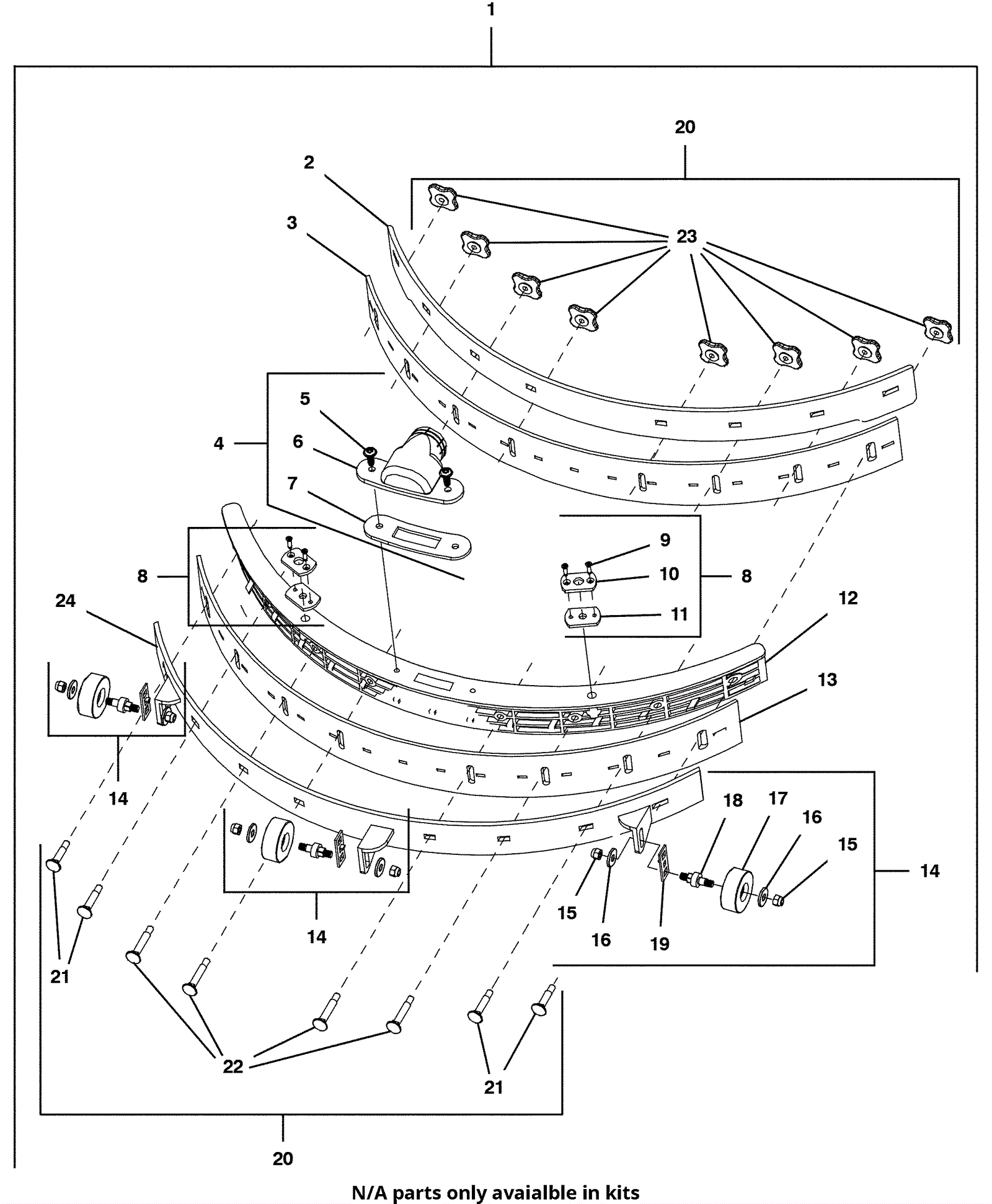

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
375-1564
|
Squeegee assembly |
$549.12
|
1 |
(includes 2-11a, 12-13a, 14-24) |
ships same day |
2 |
475-1803
|
PLATE, REAR, SQUEEGEE [IMOP] |
$73.48
|
1 |
|
ships same day |
3 |
375-1619
|
Squeegee blade kit front |
$61.97
|
1 |
|
ships same day |
4 |
375-4152
|
Squeegee connector hose |
$55.22
|
1 |
(includes 5-7) |
usually ships 5-16 days |
5 |
N/A
|
Not available |
Call for price
|
2 |
(screw) (only available with 1 and 4) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
Call for price
|
1 |
(hose connector) (only available with 1 and 4) |
usually ships 3-26 days |
7 |
475-1484
|
GASKET, HOSE, SQUEEGEE [IMOP] |
$39.93
|
1 |
|
usually ships 5-16 days |
8 |
375-4153
|
Squeegee retaining kit |
$10.67
|
1 |
(includes 9-11a) (includes 2 retaining assemblies) |
usually ships 10-22 days |
9 |
N/A
|
Not available |
Call for price
|
4 |
(screw M3 x 10 countersunk) (only available with 1 and 8) |
usually ships 3-26 days |
10 |
475-1631
|
PLATE, MTG, SQGE [SS, IMOP] |
$15.07
|
2 |
|
usually ships 5-16 days |
11a |
475-1450
|
WASHER, RBR, SQGE [BLACK, IMOP] |
$3.19
|
2 |
|
usually ships 5-16 days |
11b |
475-2294
|
WASHER, RBR, SQGE [BLACK, IMOP, QTY 100] |
$224.18
|
1 |
|
usually ships 5-16 days |
12 |
475-1861
|
PLATE, TOP, SQUEEGEE [IMOP] |
$84.92
|
1 |
|
usually ships 5-16 days |
13a |
375-1620
|
Squeegee blade linatex rear |
$57.20
|
1 |
(standard) |
ships same day |
13b |
375-4154
|
Squeegee blade urethane rear |
$51.48
|
1 |
(optional) |
usually ships 5-16 days |
14 |
475-2000
|
Squeegee caster assembly |
$210.74
|
1 |
(includes 8, 15-19) |
usually ships 3-6 days |
15 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
$2.88
|
6 |
|
ships same day |
16 |
999-1658
|
Washer M5 x 15mm flat stainless steel |
$0.99
|
6 |
|
usually ships 1-5 days |
17 |
N/A
|
Not available |
Call for price
|
3 |
(castor) (only available with 1 and 14) |
usually ships 3-26 days |
18 |
N/A
|
Not available |
Call for price
|
3 |
(shaft) (only available with 1 and 14) |
usually ships 3-26 days |
19 |
N/A
|
Not available |
Call for price
|
3 |
(height adjustment plate) (only available with 1 and 14) |
usually ships 3-26 days |
20 |
375-4155
|
Squeegee retainer knob kit |
$65.67
|
1 |
(includes 21-23) |
usually ships 5-16 days |
21 |
N/A
|
Not available |
Call for price
|
4 |
(screw) (only available with 1 and 20) |
usually ships 3-26 days |
22 |
N/A
|
Not available |
Call for price
|
4 |
(screw) (only available with 1 and 20) |
usually ships 3-26 days |
23 |
N/A
|
Not available |
Call for price
|
8 |
(nut) (only available with 1 and 20) |
usually ships 3-26 days |
24 |
475-1766
|
Rear squeegee plate |
$68.64
|
1 |
|
usually ships 5-16 days |
