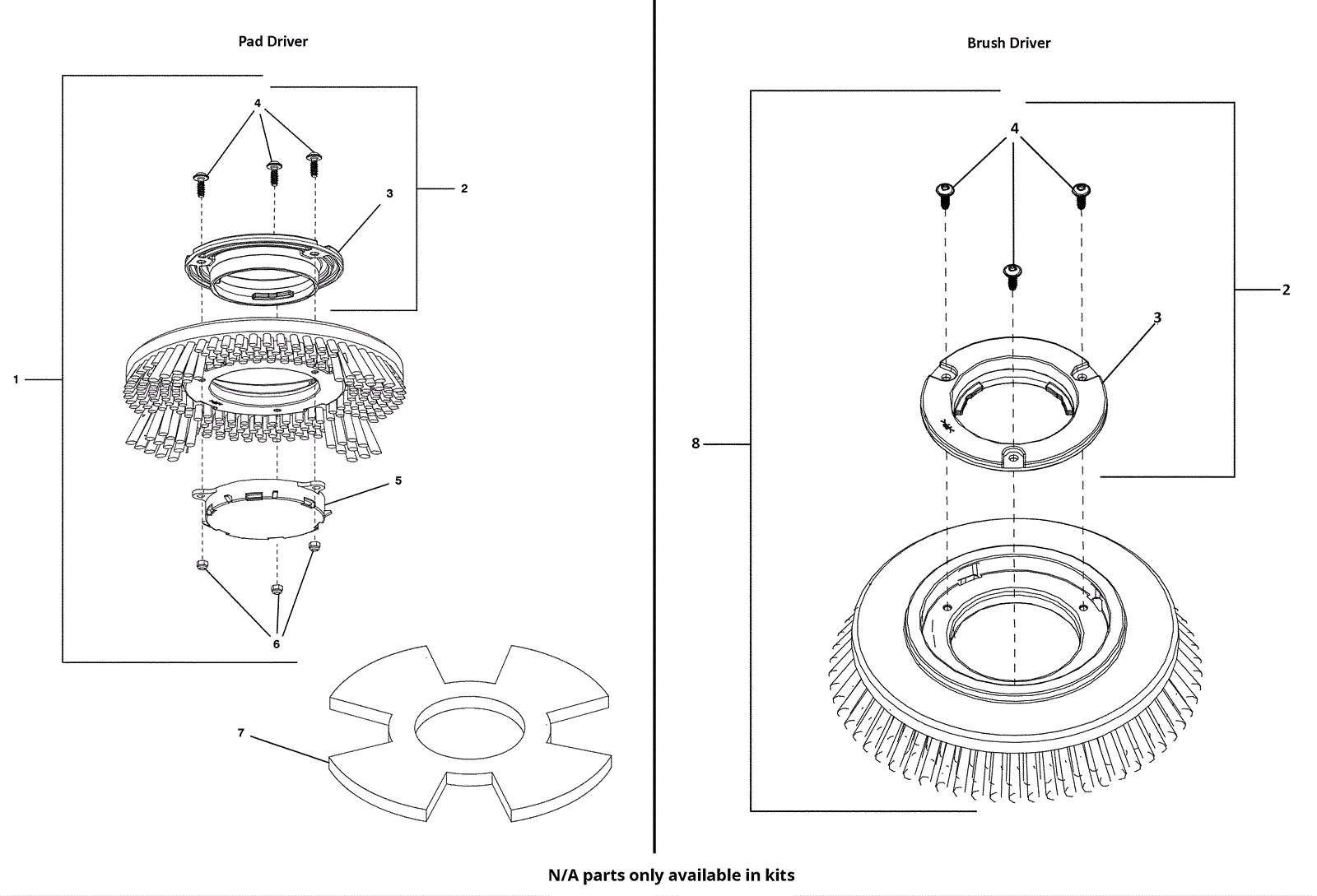

Brush and Pad Driver Assembly

#PartDescription ReqNotesAvailability
1 375-4126 Pad driver kit (blue) (pkg of 2) 1 (Includes 2a-6)
2a 375-4127 Brush driver kit (blue) 2 (includes 3a-4)(standard)
2b 375-4128 Brush driver kit (red) 2 (includes 3b-4) (optional)
2c 375-4129 Brush driver kit (yellow) 2 (includes 3c-4) (optional)
2d 375-4130 Brush driver kit (green) 2 (includes 3d-4) (optional)
3a N/A Not available 2 (brush locker blue) (standard) (only available with 1 and 2a)
3b N/A Not available 2 (brush locker red) (optional) (only available with 1 and 2b)
3c N/A Not available 2 (brush locker yellow) (optional) (only available with 1 and 2c)
3d N/A Not available 2 (brush locker green) (optional) (only available with 1 and 2d)
4 N/A Not available 6 (screw) (only available with 1 and 2)
5 N/A Not available 2 (pad holder) (only available with 1)
6 999-1619 Nut M4 hex stainless steel 6
7a 475-2343 PAD KIT, RED [BOX OF 10] 1
7b 475-2344 PAD KIT, WHT [BOX OF 10] 1
7c 475-2378 PAD KIT, GRN [BOX OF 10] (OBSOLETE) 1
7d 475-2379 PAD KIT, BLUE [BOX OF 10] 1
7e 475-2377 PAD KIT, BLK [BOX OF 10] 1
7f 375-4139 Twister pad kit (green) 1
7g 375-4136 Twister pad kit (yellow) 1
7h 375-4140 Twister pad kit (white) 1
7i 375-4141 Twister pad kit (red) 1
7j 375-4137 Twister pad kit (orange) 1
7k 375-4138 Twister pad kit (blue) 1
8a 375-4142 Medium bristle brush kit (blue) (pkg of 2) 1 (includes 2-4)
8b 375-4144 Soft bristle brush kit (light blue) (pkg of 2) 1 (includes 2-4)
8c 375-4143 Hard bristle brush kit (red) (pkg of 2) 1 (includes 2-4)
8d 375-4145 Medium bristle brush kit (blue with green lock) (pkg of 2) 1 (includes 2-4)
8e 375-4146 Medium bristle brush kit (blue with red lock) (pkg of 2) 1 (includes 2-4)
8f 375-4147 Medium bristle brush kit (blue with yellow lock) (pkg of 2) 1 (includes 2-4)
