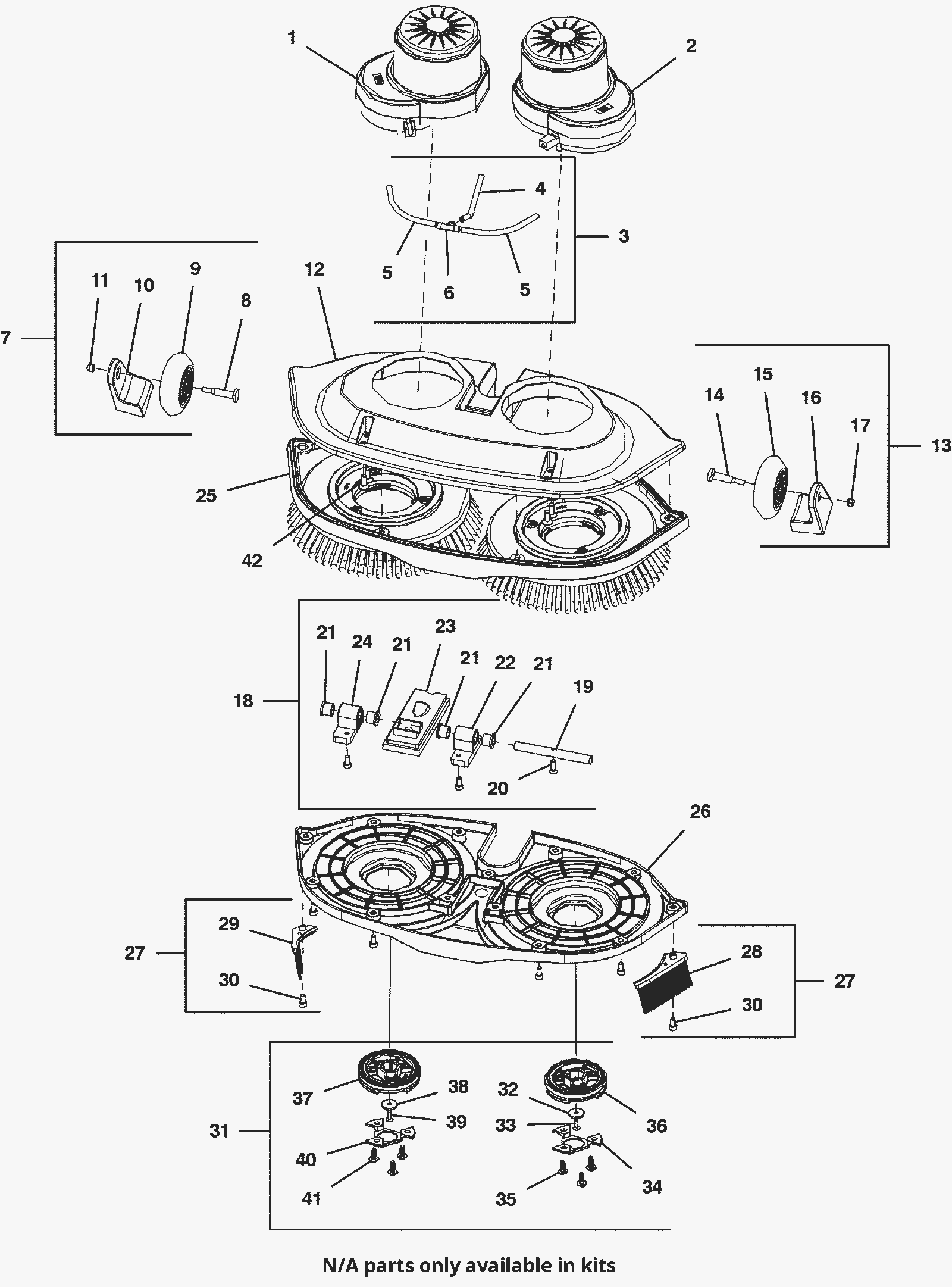

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4107
|
Right hand brush motor |
1 |
|
|
2 |
375-4108
|
Left hand brush motor |
1 |
|
|
3 |
375-4109
|
Water channel fitting assembly |
1 |
(includes 4-6) |
|
4 |
N/A
|
Not available |
1 |
(6mm hose) (only available with 3) |
|
5 |
N/A
|
Not available |
2 |
(4mm hose) (only available with 3) |
|
6 |
N/A
|
Not available |
1 |
(coupling) (only available with 3) |
|
7 |
375-4110
|
Right hand caster transport kit |
1 |
(includes 8-11) |
|
8 |
N/A
|
Not available |
1 |
(shaft) (only available with 7) |
|
9 |
N/A
|
Not available |
1 |
(caster) (only available with 7) |
|
10 |
N/A
|
Not available |
1 |
(right hand pilar) (only available with 7) |
|
11 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
1 |
|
|
12 |
375-4111
|
Brush motor cover |
1 |
|
|
13 |
375-4112
|
Left hand caster transport kit |
1 |
(includes 14-17) |
|
14 |
N/A
|
Not available |
1 |
(shaft) (only available with 13) |
|
15 |
N/A
|
Not available |
1 |
(caster) (only available with 13) |
|
16 |
N/A
|
Not available |
1 |
(left hand pilar) (only available with 13) |
|
17 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
1 |
|
|
18 |
375-4113
|
Brush hinge kit |
1 |
(includes 19-24) |
|
19 |
N/A
|
Not available |
1 |
(chassis hinge) (only available with 18) |
|
20 |
N/A
|
Not available |
1 |
(screw M4 x 12 nylok counter sunk) (only available with 18) |
|
21 |
375-9026
|
Bushing |
4 |
|
|
22 |
N/A
|
Not available |
1 |
(left hand support hinge) (only available with 18) |
|
23 |
N/A
|
Not available |
1 |
(seal) (only available with 18) |
|
24 |
N/A
|
Not available |
1 |
(right hand support hinge) (only available with 18) |
|
25 |
375-4114
|
Brush bumper |
1 |
|
|
26 |
375-4115
|
Bottom brush cover |
1 |
|
|
27 |
375-4116
|
Splash shield kit |
1 |
(includes 28-30) (includes allen wrench tool) |
|
28 |
N/A
|
Not available |
1 |
(left hand splash guard) (only available with 27) |
|
29 |
N/A
|
Not available |
1 |
(right hand splash guard) (only available with 27) |
|
30 |
999-1664
|
Screw M5-.8 x 20mm socket head stainless steel |
2 |
|
|
31 |
375-4117
|
Motor brush cover |
1 |
(includes 32a-41) |
|
32a |
375-9027
|
Left hand brush drive |
1 |
(includes 32b-36) |
|
32b |
N/A
|
Not available |
1 |
(support disk) (only available with 31 and 32a) |
|
33 |
475-1582
|
SCREW, FLT, SOC, M5 X 18.5 LH NL [ IMOP] |
1 |
|
|
34 |
N/A
|
Not available |
1 |
(cover) (only available with 31 and 32a) |
|
35 |
N/A
|
Not available |
3 |
(screw) (only available with 31 and 32a) |
|
36 |
N/A
|
Not available |
1 |
(drive wheel) (only available with 31 and 32a) |
|
37a |
375-9028
|
Right hand brush drive |
1 |
(includes 37b-41) |
|
37b |
N/A
|
Not available |
1 |
(drive wheel) (only available with 32a and 37a) |
|
38 |
N/A
|
Not available |
1 |
(support disk) (only available with 32a and 37a) |
|
39 |
475-1581
|
SCREW, FLT, SOC, M5 X 18.5 NL [10X,IMOP] |
1 |
|
|
40 |
N/A
|
Not available |
1 |
(cover) (only available with 32a and 37a) |
|
41 |
N/A
|
Not available |
3 |
(screw) (only available with 32a and 37a) |
|
42 |
475-1520
|
SCREW, FLT, SOC, M6 X 16 NL [10X,IMOP] |
1 |
|
|
