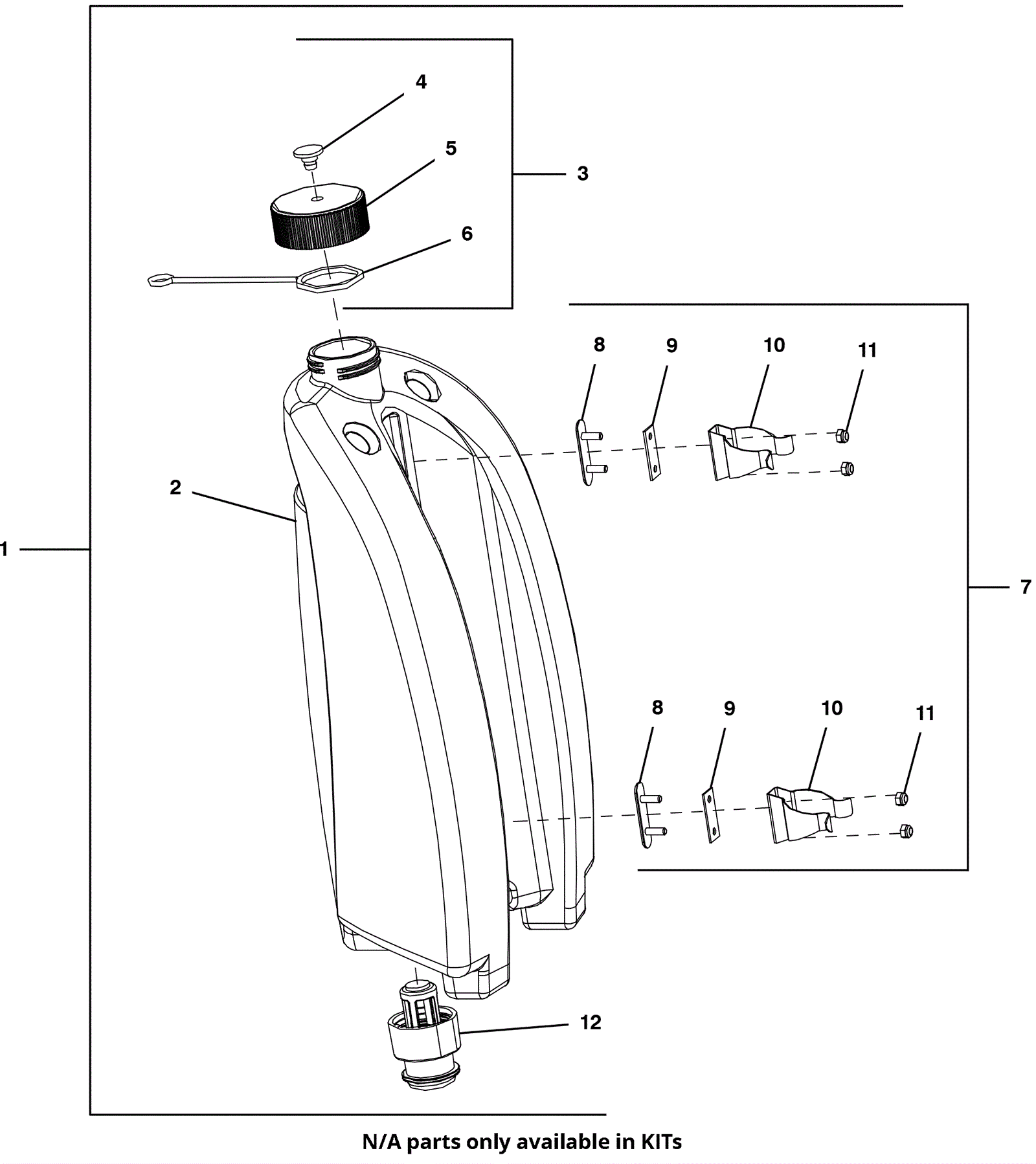

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-4118
|
Solution tank assembly (blue cap) |
1 |
(includes 2-12) (standard) |
|
1b |
375-4119
|
Solution tank assembly (red cap) |
1 |
(includes 2-12) (optional) |
|
1c |
375-4120
|
Solution tank assembly (yellow cap) |
1 |
(includes 2-12) (optional) |
|
1d |
375-4121
|
Solution tank assembly (green cap) |
1 |
(includes 2-12) (optional) |
|
2 |
N/A
|
Not available |
1 |
(clean water compartment) (only available with 1) |
|
3a |
375-4122
|
Solution tank cap (blue) |
1 |
(includes 4-6) (standard) |
|
3b |
375-4123
|
Solution tank cap (red) |
1 |
(includes 4-6) (optional) |
|
3c |
375-4124
|
Solution tank cap (yellow) |
1 |
(includes 4-6) (optional) |
|
3d |
375-4125
|
Solution tank cap (green) |
1 |
(includes 4-6) (optional) |
|
4 |
N/A
|
Not available |
1 |
(sleeve cap holder) (only available with 1 and 3) |
|
5 |
N/A
|
Not available |
1 |
(cap with hole) (only available with 1 and 3) |
|
6 |
N/A
|
Not available |
1 |
(cap holder) (only available with 1 and 3) |
|
7 |
375-1628
|
Tank retaining clip |
1 |
(includes 8-11) |
|
8 |
N/A
|
Not available |
2 |
(plate clip) (only available with 1 and 7) |
|
9 |
N/A
|
Not available |
2 |
(rubber cushion) (only available with 1 and 7) |
|
10 |
N/A
|
Not available |
2 |
(clip)(only available with 1 and 7) |
|
11 |
999-0955
|
Nut M4-.7 hex nylon lock |
4 |
|
|
12 |
375-4089
|
Water coupling |
1 |
|
|
