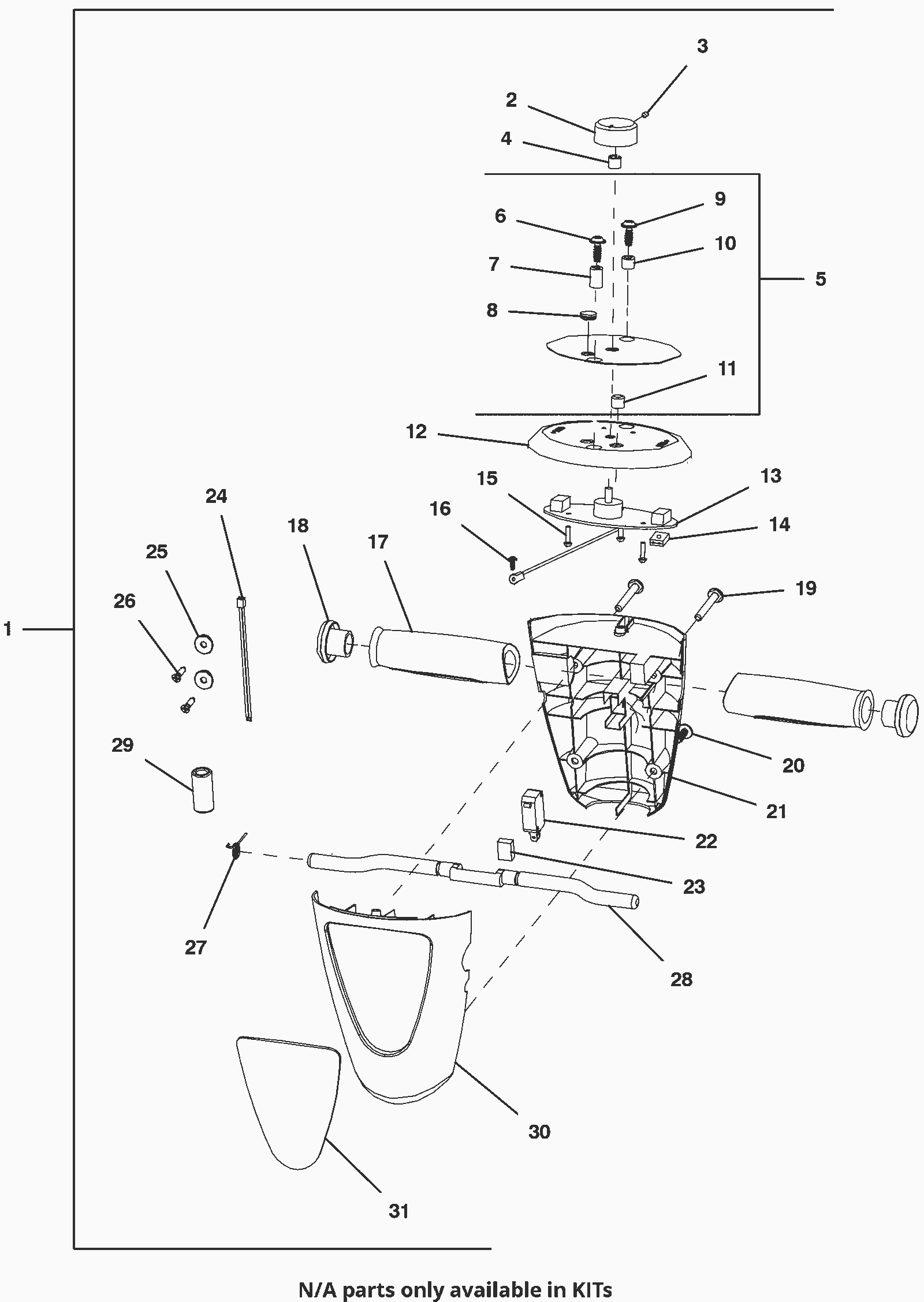

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4101
|
Unit control assembly |
1 |
(includes 2-31) |
|
2 |
375-4102
|
Top housing knob kit |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(screw M4 x 8 hex head socket set) (only available with 1) |
|
4 |
N/A
|
Not available |
1 |
(turning button fixation insert) (only available with 1) |
|
5 |
375-9022
|
Hardware kit |
1 |
(includes 6-11) |
|
6 |
N/A
|
Not available |
1 |
(screw M4 x 25 countersunk) (only available with 1 and 5) |
|
7 |
N/A
|
Not available |
1 |
(plastic support bushing) (only available with 1 and 5) |
|
8 |
N/A
|
Not available |
1 |
(rubber block) (only available with 1 and 5) |
|
9 |
N/A
|
Not available |
1 |
(screw M4 x 20 countersunk) (only available with 1 and 5) |
|
10 |
N/A
|
Not available |
1 |
(plastic support bushing) (only available with 1 and 5) |
|
11 |
N/A
|
Not available |
1 |
(water save button) (only available with 1 and 5) |
|
12 |
475-1609
|
Top control housing with bumper (XL & XXL IMOP) |
1 |
|
|
13a |
375-9023
|
Circuit board kit (OBSOLETE) |
1 |
(includes 13b-16) |
|
13b |
375-4104
|
Central circuit board (OBSOLETE) |
1 |
|
|
13c |
375-1752
|
Control circuitboard kit |
1 |
(after SN 330000) |
|
14 |
N/A
|
Not available |
1 |
(wire clamp switch) (only available with 1 and 13a) |
|
15 |
N/A
|
Not available |
3 |
(screw M3 x 12 crosshead self tapping) (only available with 1 and 13a) |
|
17a |
375-9024
|
Handle grip (pkg of 2) |
1 |
(includes 17b-18) |
|
17b |
475-1717
|
HANDLE, GRIP [2X, IMOP] |
1 |
|
|
18 |
N/A
|
Not available |
2 |
(grip end cap) (only available with 1 and 17a) |
|
19a |
375-9025
|
Rear housing kit |
1 |
(includes 19b-21) |
|
19b |
N/A
|
Not available |
2 |
(screw M4 x 35 crosshead) (only available with 1 and 19a) |
|
20 |
N/A
|
Not available |
2 |
(screw M4 x 12 crosshead) (only available with 1 and 19a) |
|
21 |
475-1736
|
HOUSING, CONTROL, REAR [WHITE,IMOP] |
1 |
|
|
22a |
375-6013
|
Power switch kit |
1 |
(includes 22b-26) |
|
22b |
N/A
|
Not available |
1 |
(power switch control unit) (only available with 1 and 22a) |
|
23 |
N/A
|
Not available |
1 |
(rubber block) (only available with 1 and 22a) |
|
24 |
N/A
|
Not available |
1 |
(on/off switch wires) (only available with 1 and 22a) |
|
25 |
N/A
|
Not available |
2 |
(washer) (only available with 1 and 22a) |
|
26 |
N/A
|
Not available |
2 |
(screw) (only available with 1 and 22a) |
|
27a |
375-6012
|
Trigger assembly |
1 |
(includes 27b-28) |
|
27b |
N/A
|
Not available |
1 |
(switch lever spring) (only available with 1 and 27a) |
|
28 |
475-1643
|
HANDLE, CONTROL [BLUE, IMOP] |
1 |
|
|
29 |
N/A
|
Not available |
1 |
(easy scrub magnet ring) (only available with 1) |
|
30 |
475-1876
|
HOUSING, CONTROL, FRONT [WHITE, IMOP] |
1 |
|
|
31 |
475-1728
|
PLATE, LABEL, HANDLE [AL, IMOP] |
1 |
|
|
