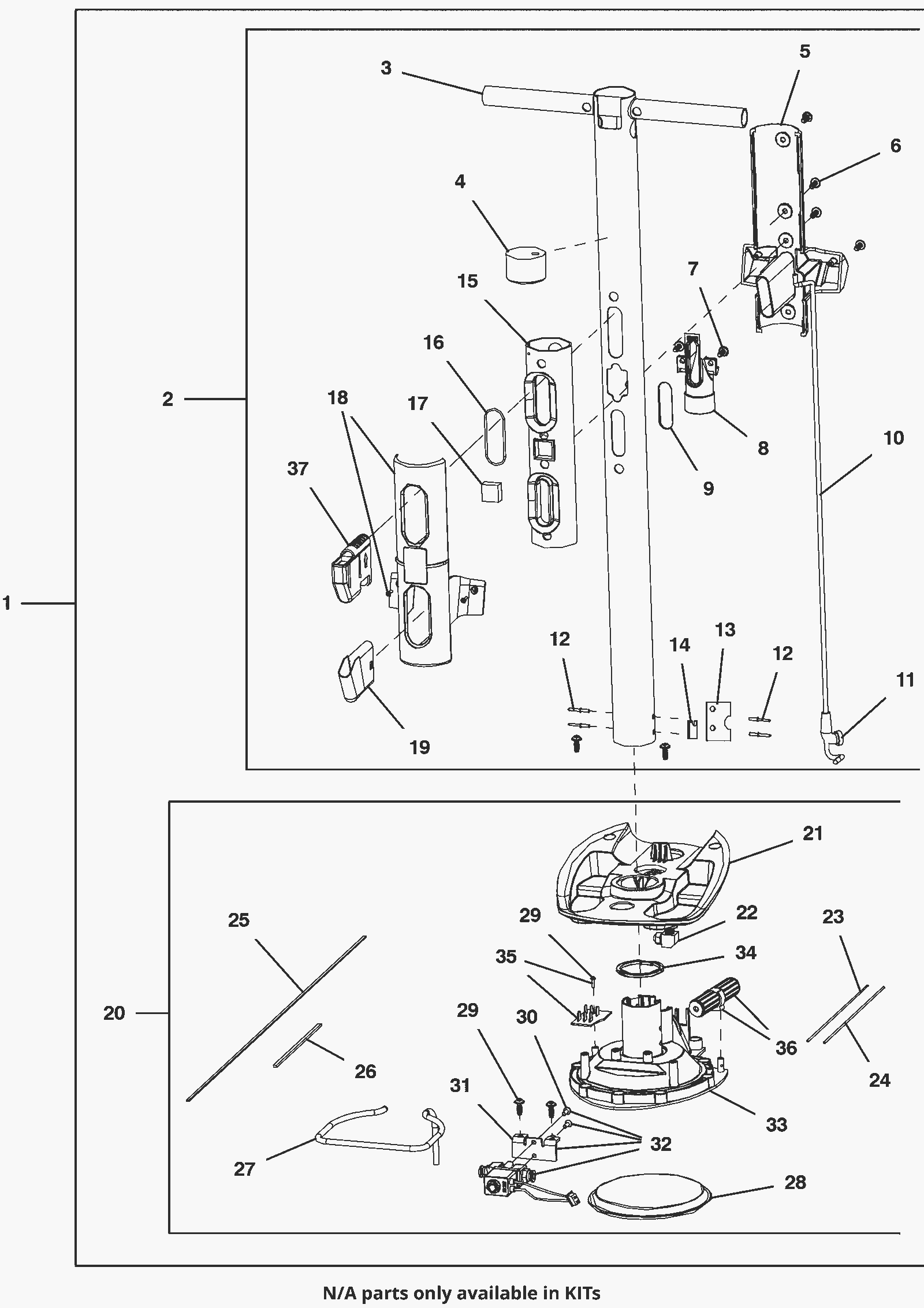

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1563
|
Inlet tube assembly |
1 |
(includes 2-36) |
|
2 |
375-4090
|
Inlet weldment tube |
1 |
(includes 3a-19) |
|
3a |
375-9011
|
Handle weldment assembly |
1 |
(includes 3b-4) |
|
3b |
N/A
|
Not available |
1 |
(inlet tube) (only available with 1, 2 and 3a) |
|
4 |
N/A
|
Not available |
1 |
(inlet tube end cap) (only available with 1, 2 and 3a) |
|
5a |
375-9012
|
Rear tank holder |
1 |
(includes 5b-6) |
|
5b |
N/A
|
Not available |
1 |
(rear tank holder) (only available with 1, 2 and 5a) |
|
6 |
N/A
|
Not available |
10 |
(screw) (only available with 1, 2 and 5a) |
|
7 |
N/A
|
Not available |
2 |
(screw) (only available with 1 and 2) |
|
8 |
475-1618
|
CONNECTOR, HOSE, SQUEEGEE [IMOP] |
1 |
|
|
9 |
N/A
|
Not available |
1 |
(gasket) (only available with 1 and 2) |
|
10a |
375-9409
|
Cable tube |
1 |
(includes 10b-14) |
|
10b |
375-4091
|
Central connector cable |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(power cable guide) (only available with 1, 2 and 10a) |
|
12 |
N/A
|
Not available |
4 |
(rivet) (only available with 1, 2 and 10a) |
|
13 |
N/A
|
Not available |
1 |
(sealing pressure plate) (only available with 1, 2 and 10a) |
|
14 |
N/A
|
Not available |
1 |
(sealing rubber sheet) (only available with 1, 2 and 10a) |
|
15a |
375-9013
|
Seal kit |
1 |
(includes 15b-17) |
|
15b |
475-1747
|
Recovery tank seal |
1 |
|
|
16 |
N/A
|
Not available |
1 |
(o-ring) (only available with 1, 2 and 15a) |
|
17 |
N/A
|
Not available |
1 |
(magnet) (only available with 1, 2 and 15a) |
|
18 |
375-9014
|
Front tank holder |
1 |
(includes hardware) |
|
19 |
475-1714
|
DEFLECTOR, TANK, RECVY [IMOP] |
1 |
|
|
20 |
375-4093
|
Top motor kit |
1 |
(includes 21-31, 33, 34) |
|
21 |
375-9015
|
Top motor housing |
1 |
|
|
22 |
375-9016
|
Connector |
1 |
|
|
23a |
375-9017
|
Terminal |
1 |
(includes 23b-24) |
|
23b |
N/A
|
Not available |
1 |
(wire and terminal) (only available with 1, 2 and 23a) |
|
24 |
N/A
|
Not available |
1 |
(wire and terminal) (only available with 1, 2 and 23a) |
|
25a |
375-9018
|
Gasket |
1 |
(includes 25b-26) |
|
25b |
N/A
|
Not available |
1 |
(sealing gasket) (only available with 1, 2 and 25a) |
|
26 |
N/A
|
Not available |
1 |
(sealing gasket) (only available with 1, 2 and 25a) |
|
27 |
N/A
|
Not available |
1 |
(water channel) (only available with 1 and 2) |
|
28 |
375-9019
|
Gasket set |
1 |
|
|
29a |
375-9020
|
Valve assembly |
1 |
(includes 29b-31) |
|
29b |
N/A
|
Not available |
2 |
(screw) (only available with 1, 2, 29a, and 35) |
|
30 |
475-1526
|
SCREW, FLT, SOC, M4 X 10 SS [10X, IMOP] |
2 |
|
|
31 |
N/A
|
Not available |
1 |
(ventilation fixation plate) (only available with 1, 2, 29a, and 32) |
|
32 |
375-3950
|
Copper valve assembly with connectors |
1 |
(includes 30-31) |
|
33a |
375-9021
|
Connector kit |
1 |
(includes 22-36) |
|
33b |
N/A
|
Not available |
1 |
(motor unit frame) (only available with 1, 2 and 33a) |
|
34 |
N/A
|
Not available |
1 |
(motor unit frame gasket) (only available with 1, 2 and 33a) |
|
35 |
375-4094
|
Circuit board valve |
1 |
(includes 29) |
|
36 |
375-4096
|
Connector assembly |
1 |
|
|
37 |
375-4092
|
Filter assembly |
1 |
|
|
