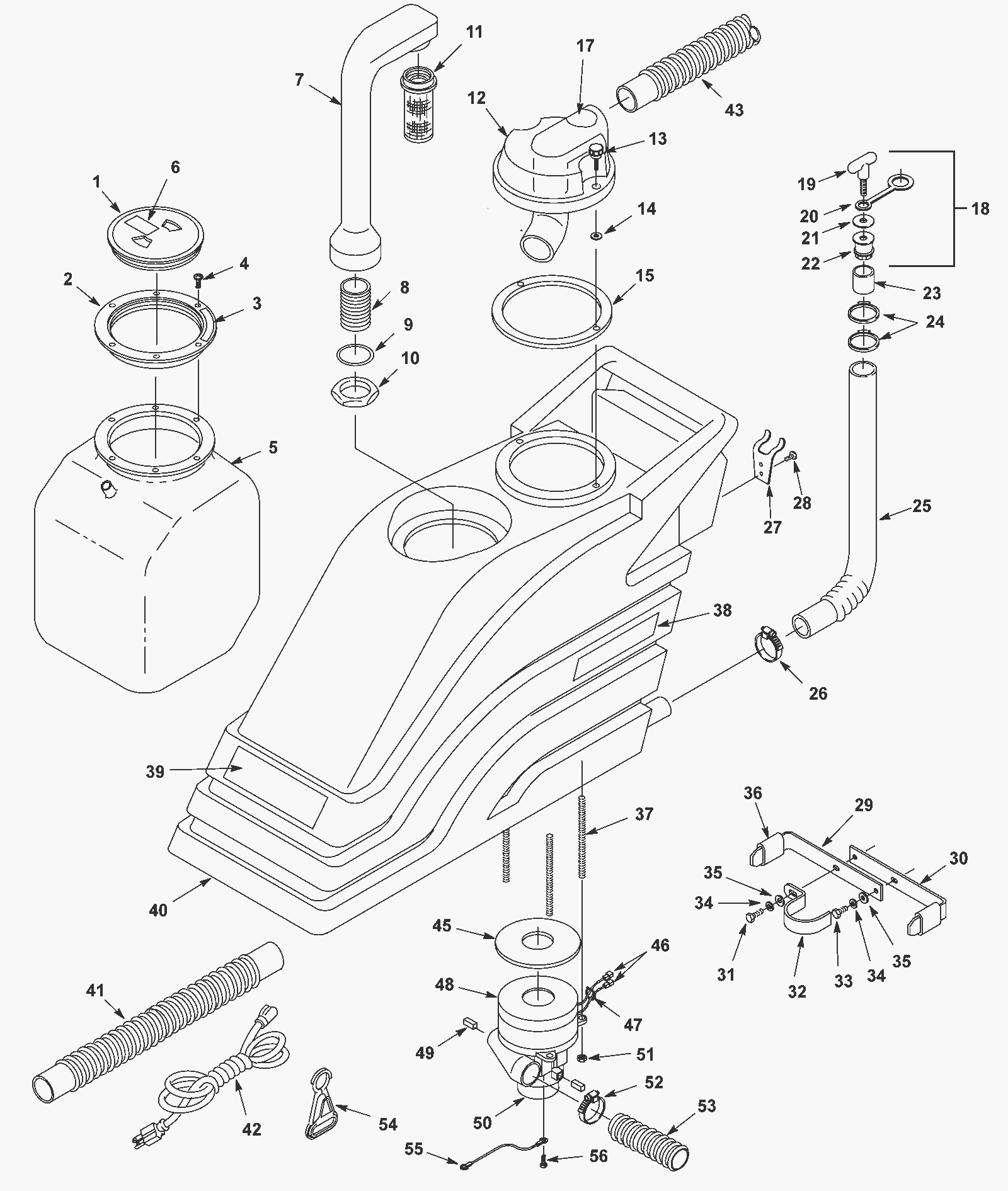

Recovery Tank Assembly - Model 1002556

#PartDescription ReqNotesAvailability
1a 175-6045 Tank lid assembly 1 (includes 1b and 2)
1b 164-0044 Tank lid (clear) 1
1c 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
2 175-3580 Outer tank lid ring 1
3 175-6101 Always close decal 1
4 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 6
5 175-6083 10 gallon bladder bag 1
6 175-6107 Always drain decal 1
7 175-6047 Standpipe 1 (includes 8)
8 175-2639 1 1/2 inch nipple fitting 1
9 175-6263 O-ring 1
10 175-2907 Nut 1 1/2 flanged hex 1
11a 675-9887 Shut-off float 1 (OEM)
11b 991-5136 Shut-off float 1 (NON-OEM)
12a 175-6048 Tank lid assembly 1 (includes 12b-17)
12b 175-6265 Tank lid 1
13 175-6050 Knob 2
14 175-6161 Nylon washer 2
15 175-6049 Tank lid gasket 1
17 175-6109 Do not allow foam decal 1
18 175-6070 Drain plug assembly 1 (includes 19-22)
19 175-6071 Drain plug knob 1
20 175-6072 Drain plug strap 1
21 175-6162 Washer 3/8 flat fender stainless steel 1
22 175-6073 Fitting 1
23 175-6074 Drain hose sleeve 1
24 175-1789 Hose clamp 2
25a 175-1535 Drain hose assembly 1 (OEM)
25b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
26 997-2007 Hose clamp 1
27 175-6069 Drain hose bracket 1
28 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
29 175-6100 Tank brace bracket with holes 1
30 175-6099 Tank brace bracket with threads 1
31 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
32 175-6103 Tank brace clamp 1
33 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
34 999-0632 Washer 1/4 split lock stainless steel 2
35 999-0016 Washer 1/4 flat plain finish 2
36 175-6102 Grip 2
37 175-6078 Stud 1/4-20 x 5 inch full threaded 3
38a 175-7209 Logo decal (OBSOLETE) 2 (1016)
38b 175-7210 Logo decal (OBSOLETE) 2 (1020)
39 275-5867 Front decal 1
40 175-7211 Recovery tank (teal) 1
41 175-9503 Vacuum hose 1 1/2 x 36 inch (OBSOLETE) 1
42a 175-6091 16/3 extension cord 50 foot (yellow) 1 (OEM)
42b 991-5002 16/3 extension cord 50 foot (orange) 1 (NON-OEM)
43a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (OEM)
43b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (NON-OEM)
45 175-6084 Vacuum motor gasket 1
46 175-3011 Female terminal 2
47 175-0037 Wire tie 2
48a 175-0198 120V 3 stage vacuum motor 1 (Tennant) (includes 48c-50)
48b 991-1213 120V 3 stage vacuum motor tangential 1 (Ametek-Lamb)
48c 175-0140 Terminal ring #10 1
49 175-6086 Carbon brush (pkg of 2) 1
50 175-5289 Shell 1
51 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
52 175-2057 Hose clamp 2
53 175-6090 Exhaust hose 2 x 26 inch (black) 1
54 175-0236 Cord belt clip 1
55 175-7215 18 gauge wire assembly 1
56 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 1
