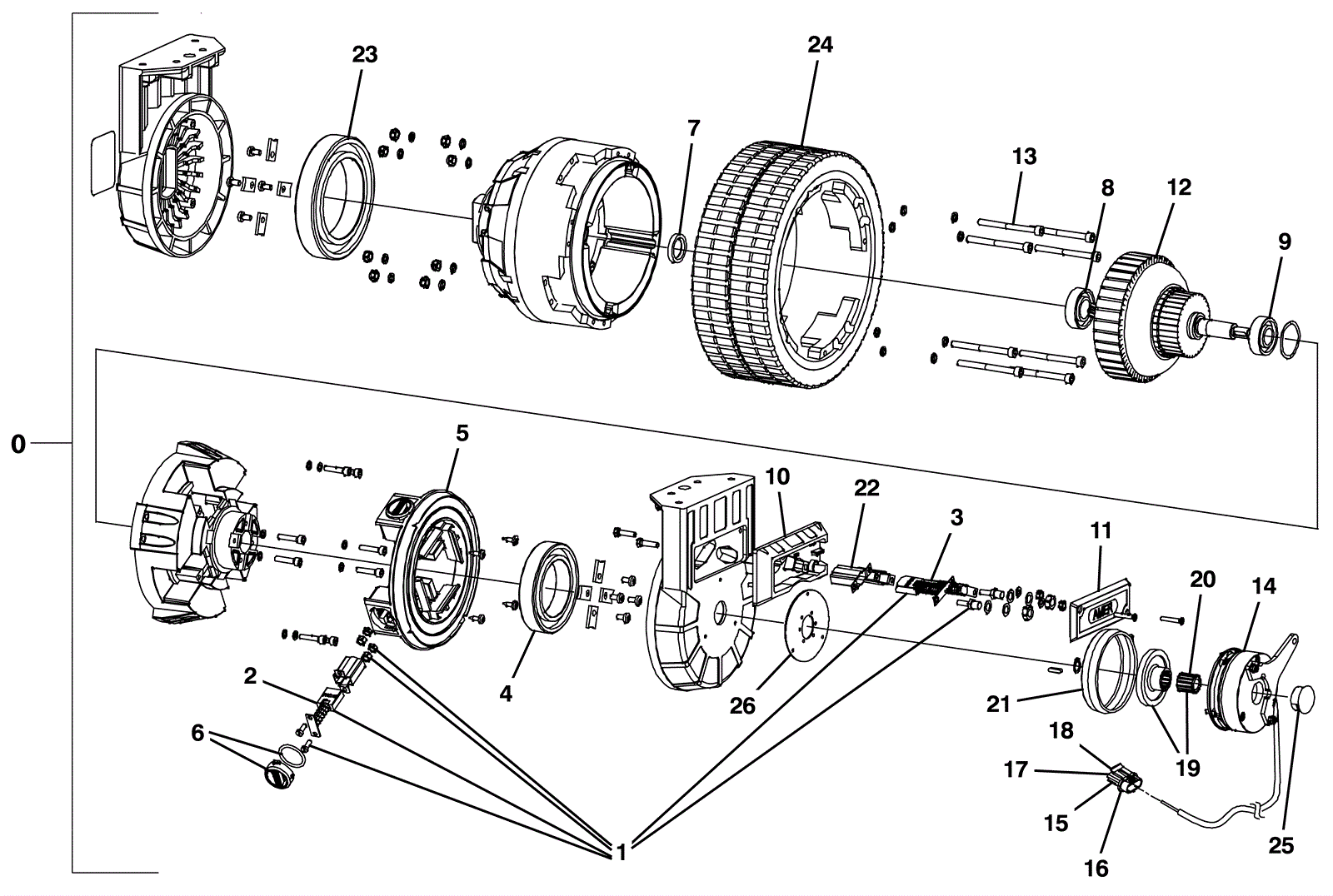

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-6296
|
Wheel gearbox kit |
1 |
(includes 1-19, 21-26) |
|
1a |
175-5371
|
Carbon and motor brush kit |
1 |
|
|
1b |
275-4972
|
Carbon brush kit (pkg of 4) |
1 |
(includes 2a) |
|
2a |
275-4973
|
Carbon brush (sold individually) |
4 |
|
|
2b |
275-4974
|
Motor brush kit (pkg of 2) |
1 |
(includes 3) |
|
3 |
275-8262
|
Motor brush (sold individually) |
2 |
|
|
4 |
275-4975
|
Bearing |
1 |
|
|
5 |
275-4976
|
Carbon brush holder ring |
1 |
|
|
6 |
175-5373
|
Carbon brush cover |
4 |
|
|
7 |
175-5374
|
Ring seal |
1 |
|
|
8 |
175-5375
|
Gearbox side bearing |
1 |
|
|
9 |
175-5376
|
Motor side bearing |
1 |
|
|
10 |
275-8260
|
Connection box |
1 |
|
|
11 |
275-8261
|
Connection cover |
11 |
|
|
12 |
275-8263
|
Armature |
1 |
|
|
13 |
275-4977
|
Wheel mounting screw |
8 |
|
|
14 |
275-9868
|
Brake kit with connector |
1 |
(includes 15-19) |
|
15 |
175-8753
|
Female connector |
1 |
|
|
16 |
175-8756
|
Male and female secondary lock |
1 |
|
|
17 |
275-8096
|
Female terminal |
2 |
|
|
18 |
275-8097
|
Wire seal |
2 |
|
|
19 |
275-8266
|
Brake rotor |
1 |
(set includes spline) |
|
21 |
275-8268
|
Rubber sleeve |
1 |
|
|
22 |
275-8269
|
Brush holder guide |
1 |
|
|
23 |
275-8270
|
Steering bearing |
1 |
|
|
24 |
275-8259
|
Solid tire (red) |
1 |
|
|
25 |
175-3126
|
Plug |
1 |
|
|
26 |
275-6775
|
Brake flange |
1 |
|
|
