| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

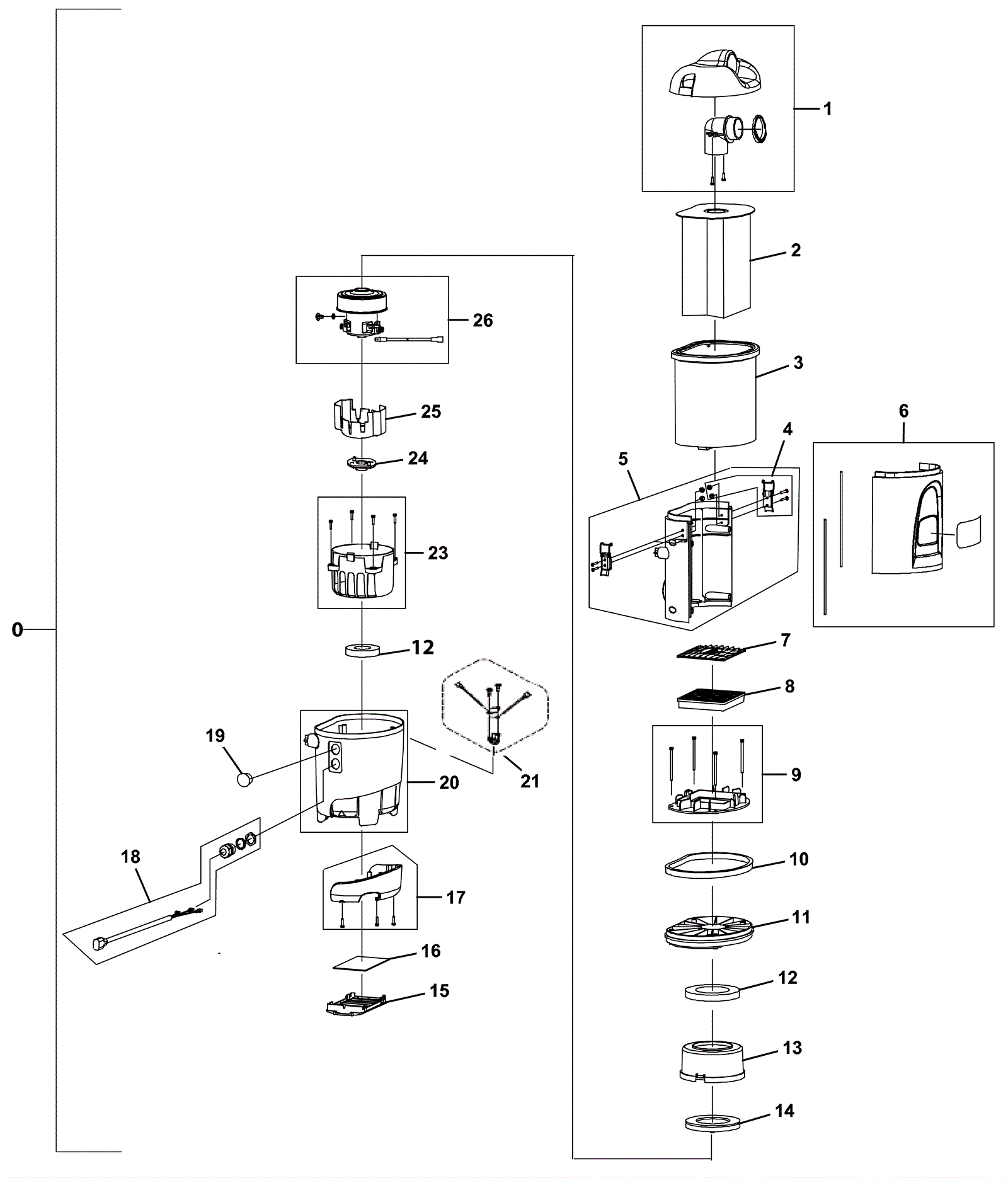

375-3952
|
Recovery dust vacuum |
1 |
(includes 1-21, 23-26) |
|
1 |
275-6217
|
Housing cover |
1 |
(includes 2 screws) |
|
2a |
275-6207
|
6 quart paper vacuum bag (pkg of 12) |
1 |
|
|
2b |
275-6208
|
6 quart case of paper vacuum bags (16 pkgs of 12) |
1 |
|
|
3 |
275-6209
|
Cloth vacuum bag (6 quart) |
1 |
|
|
4 |
275-6219
|
Latch |
1 |
(includes 2 screws and 4 washers) |
|
5 |
275-6225
|
Rear cover (6 quart) |
1 |
|
|
6 |
275-7100
|
Front cover with HEPA decal |
1 |
|
|
7 |
275-6230
|
Filter frame |
1 |
|
|
8 |
275-6211
|
HEPA filter |
1 |
|
|
9 |
275-6234
|
Filter plate |
1 |
(includes 4 screws) |
|
10 |
275-6235
|
Seal |
1 |
|
|
11 |
275-6236
|
Motor cover |
1 |
|
|
12 |
275-6232
|
Motor gasket kit |
2 |
|
|
13 |
275-6239
|
Top motor shroud |
1 |
|
|
14 |
275-6240
|
Gasket |
1 |
|
|
15 |
275-6243
|
Filter frame |
1 |
|
|
16 |
275-6210
|
Exhaust filter (pkg of 6) |
1 |
|
|
17 |
275-6242
|
Bumper |
1 |
(includes 3 screws) |
|
18 |
275-7101
|
Power cord with strain relief |
1 |
|
|
19 |
275-7102
|
Plug |
1 |
|
|
20 |
275-7103
|
Motor housing |
1 |
|
|
21 |
275-6233
|
Thermal switch |
1 |
(includes 2 screws) |
|
23 |
275-6231
|
Bottom motor shroud |
1 |
(includes 4 screws) |
|
24 |
275-6229
|
Motor mount (bottom) (OBSOLETE) |
1 |
|
|
25 |
275-6228
|
Motor shroud (bottom) |
1 |
|
|
26 |
275-6213
|
120V 1 stage vacuum motor |
1 |
(includes 1 set screw) |
|
