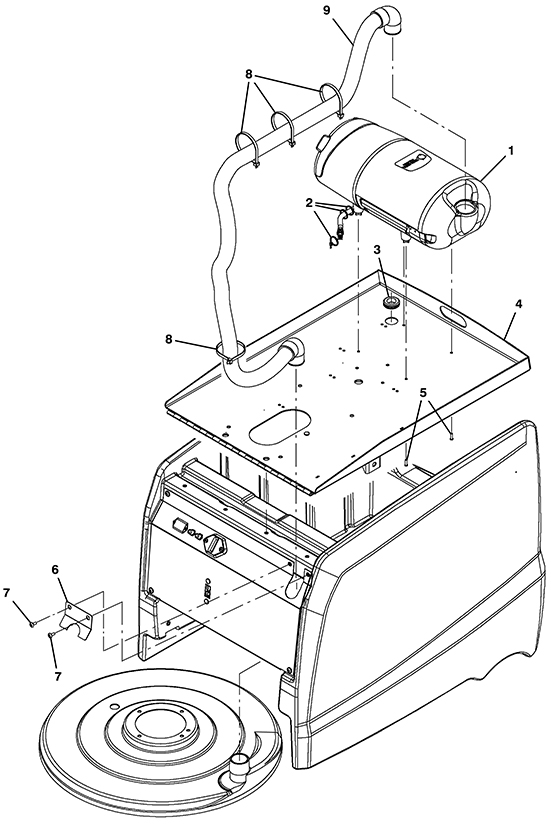

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3952
|
Recovery dust vacuum |
1 |
(see breakdown) |
|
2 |
175-7795
|
Cable tie |
3 |
|
|
3 |
175-0840
|
Rubber grommet |
1 |
|
|
4 |
275-7025
|
Seat plate |
1 |
|
|
5 |
999-1352
|
Screw 10-14 x 3/4 phillips pan head plastic thread rolling |
4 |
|
|
6 |
275-7076
|
Hose bracket |
1 |
|
|
7 |
275-7027
|
Screw M6-1 x 16mm truss head phillips |
2 |
|
|
8 |
175-2226
|
Nylon wire tie |
4 |
|
|
9 |
275-7087
|
Vacuum hose assembly |
1 |
|
|
