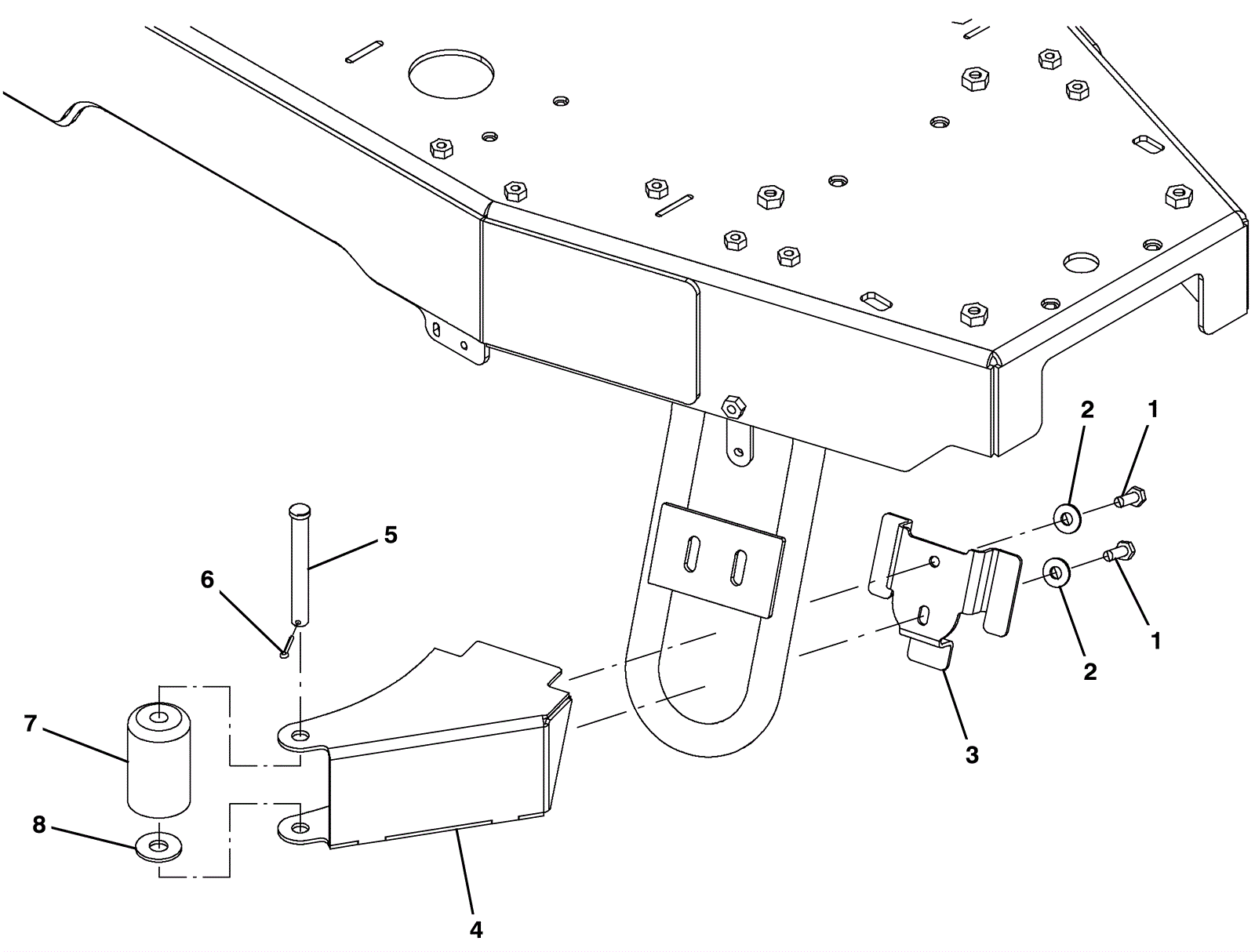

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
2 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
3 |
275-7098
|
Roller bracket |
1 |
|
|
4 |
275-7099
|
Roller bracket weldment |
1 |
|
|
5 |
275-8369
|
PIN, CLEVIS, 0.50D X 4.00L (Tennant Industrial) |
1 |
|
|
6 |
175-2040
|
Cotter pin |
1 |
|
|
7 |
175-2512
|
Bumper roller |
1 |
|
|
8 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
