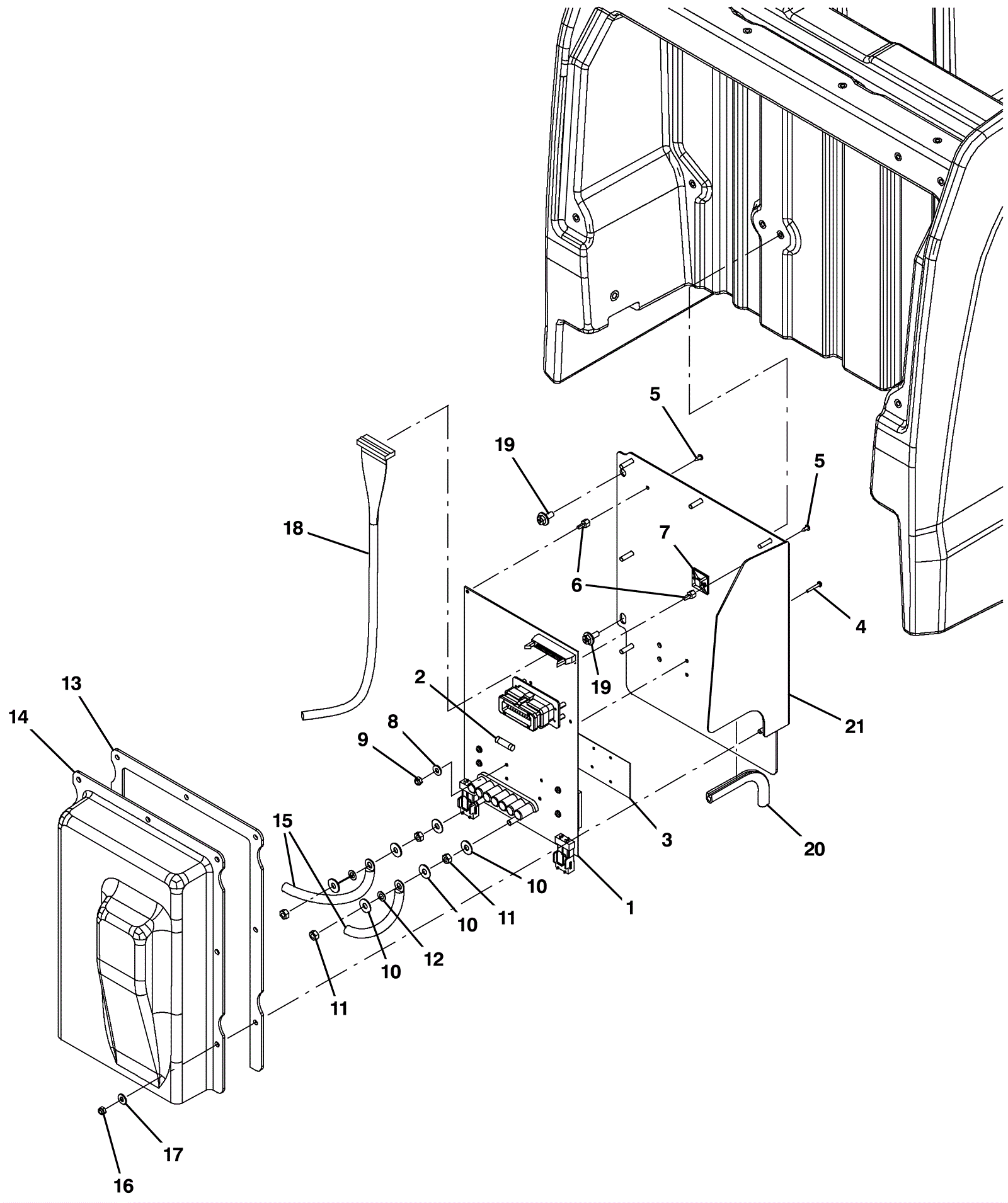

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7082
|
Circuit board kit |
1 |
(includes 2-3) |
|
2 |
275-1584
|
15amp fuse |
1 |
|
|
3 |
275-1426
|
Heat sink thermal pad |
1 |
|
|
4 |
999-1040
|
Screw M3-.5 x 20mm pan head |
4 |
|
|
5 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
2 |
|
|
6 |
275-1430
|
Circuit board support |
2 |
|
|
7 |
175-3233
|
Cable tie mount |
1 |
|
|
8 |
275-1431
|
Washer 0.14b x 0.31d flat |
4 |
|
|
9 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
11 |
999-1308
|
Nut M6-1 hex stainless steel |
4 |
|
|
12 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
2 |
|
|
13 |
275-7083
|
Rubber seal |
1 |
|
|
14 |
275-7084
|
Circuit board cover |
1 |
|
|
15 |
275-7085
|
Control board harness |
1 |
|
|
16 |
999-0740
|
Nut M5-.8 hex stainless steel |
7 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
7 |
|
|
18 |
275-8217
|
Ribbon cable |
1 |
|
|
19 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
20 |
275-8203
|
Molding |
1 |
|
|
21 |
275-7086
|
Circuit board panel |
1 |
|
|
