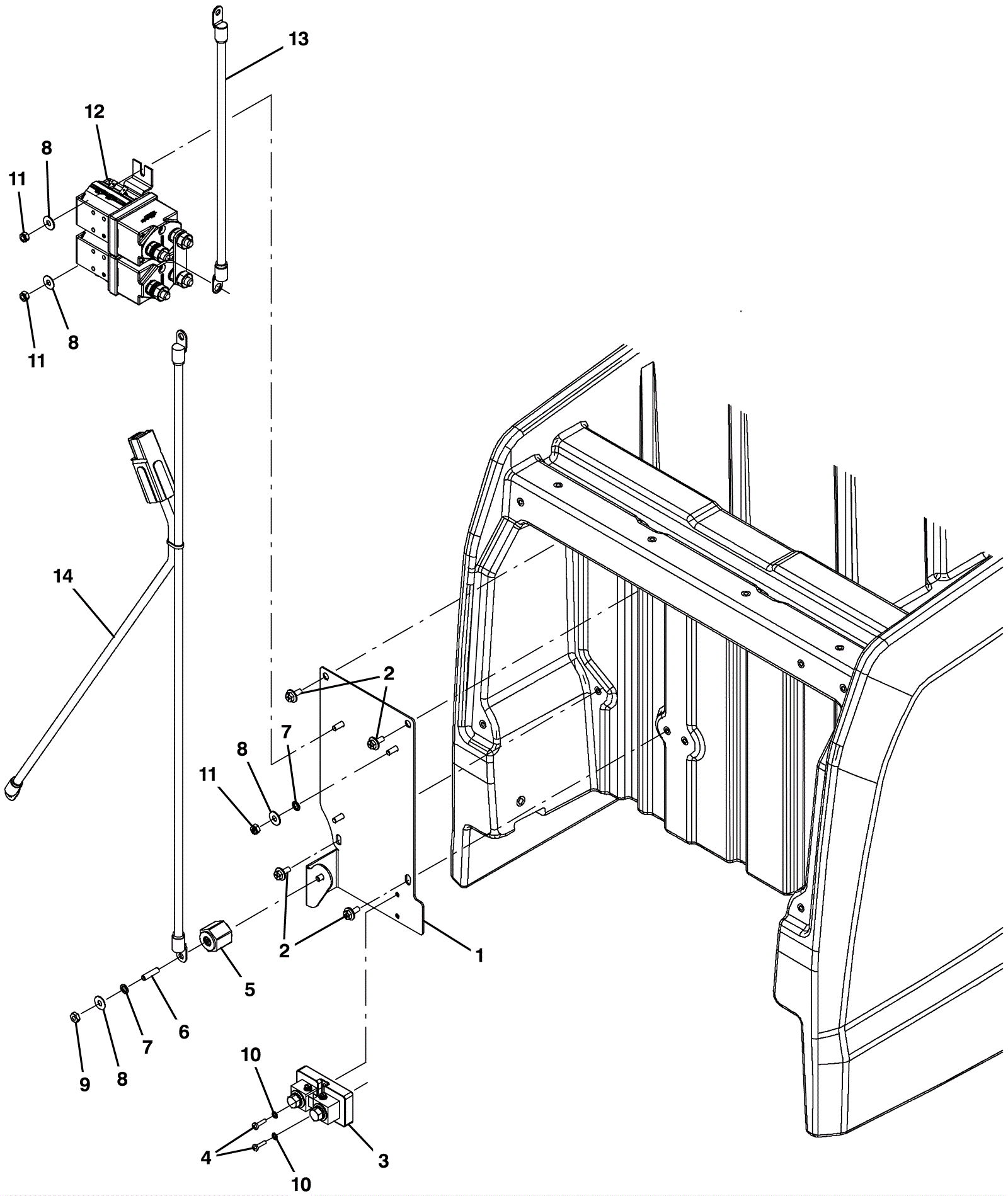

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7077
|
Electrical component panel |
1 |
|
|
2 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
3 |
275-7078
|
200amp shunt |
1 |
|
|
4 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
5 |
175-3226
|
Insulated stand off |
1 |
|
|
6 |
175-3227
|
Threaded rod |
1 |
|
|
7 |
175-4544
|
Washer M6 locking |
2 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
9 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
1 |
|
|
10 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
11 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
12 |
275-7079
|
36V contactor assembly |
1 |
|
|
13 |
275-7080
|
Wire assembly |
1 |
|
|
14 |
275-7081
|
Battery harness |
1 |
|
|
