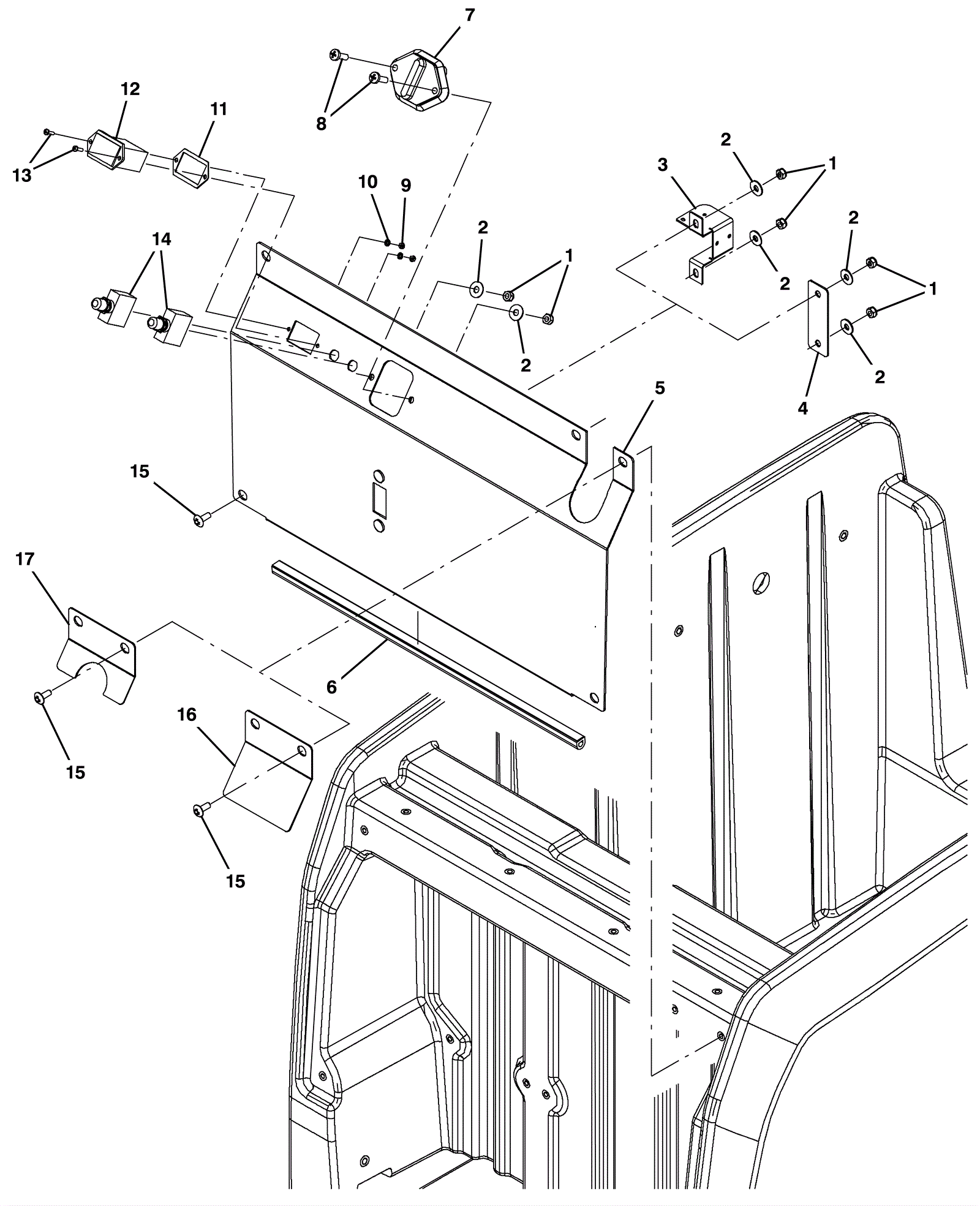

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
2 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
3 |
275-7070
|
Plug bracket |
1 |
(models with off-board charger) |
|
4 |
275-7071
|
Cover |
1 |
(models with on-board charger) |
|
5 |
275-7072
|
Access panel |
1 |
|
|
6 |
275-7073
|
24 inch seal |
1 |
|
|
7 |
275-7074
|
150amp circuit breaker |
1 |
|
|
8 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
2 |
|
|
9 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
10 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
11 |
175-2327
|
Gasket |
1 |
|
|
12 |
175-7079
|
Hour meter |
1 |
|
|
13 |
275-7075
|
Screw M3-.5 x 12mm pan head phillips (Tennant Industrial) |
2 |
|
|
14 |
175-2557
|
5amp circuit breaker |
2 |
|
|
15 |
275-7027
|
Screw M6-1 x 16mm truss head phillips |
5 |
|
|
16 |
475-3161
|
COVER, PANEL, ACCESS, ELE |
1 |
(models with passive dust control) |
|
17 |
275-7076
|
Hose bracket |
1 |
(models with active dust control) |
|
