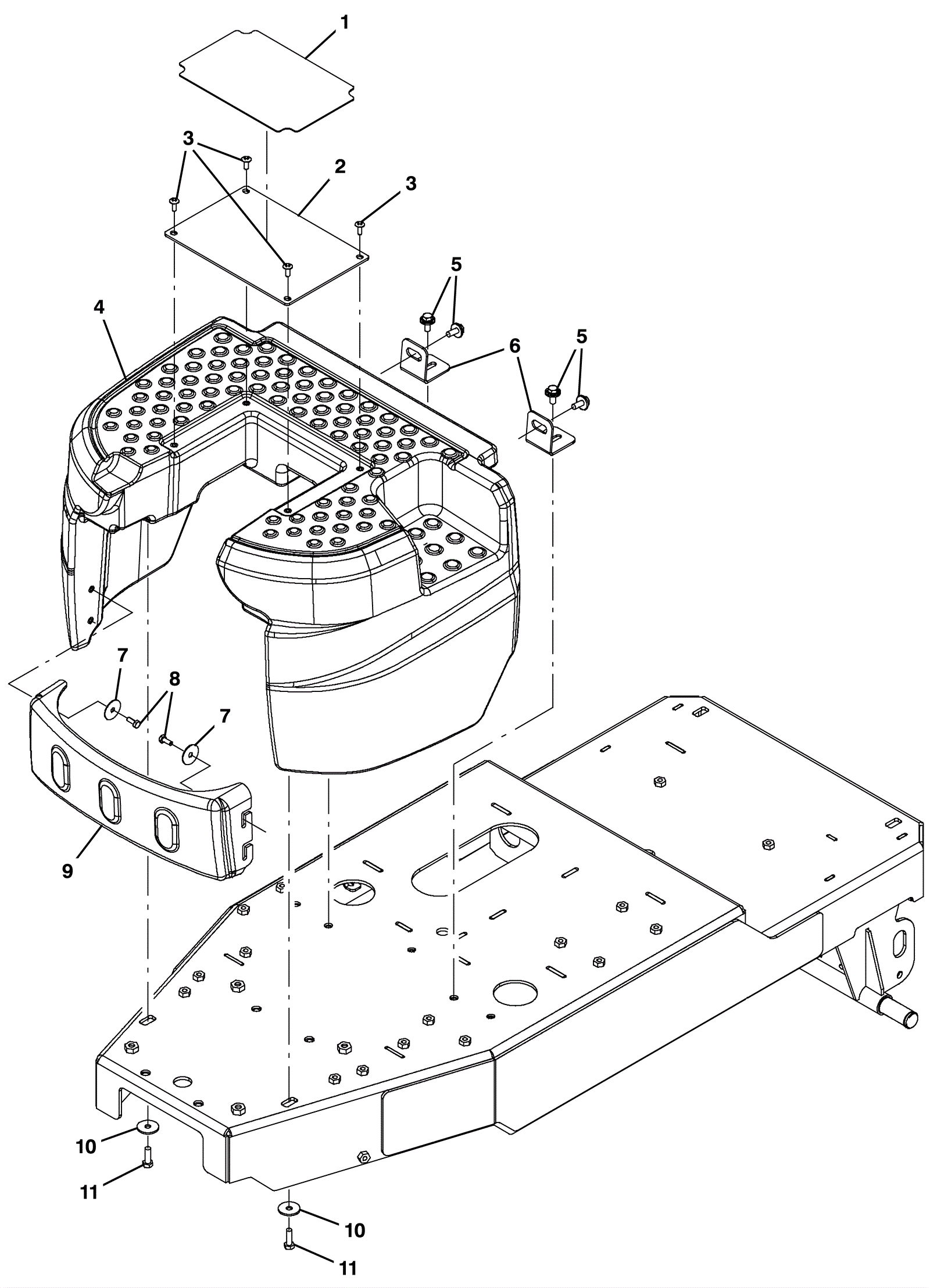

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7066
|
Non-skid tread |
1 |
|
|
2 |
275-7067
|
Access cover |
1 |
|
|
3 |
275-7027
|
Screw M6-1 x 16mm truss head phillips |
4 |
|
|
4 |
175-2922
|
Front shroud |
1 |
|
|
5 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
6 |
275-7068
|
Tank bracket |
2 |
|
|
7 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
4 |
|
|
8 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
9 |
275-7069
|
Drive wheel cover |
1 |
|
|
10 |
275-7133
|
Washer .34B x 1.25D x .11 flat stainless steel |
2 |
|
|
11 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
