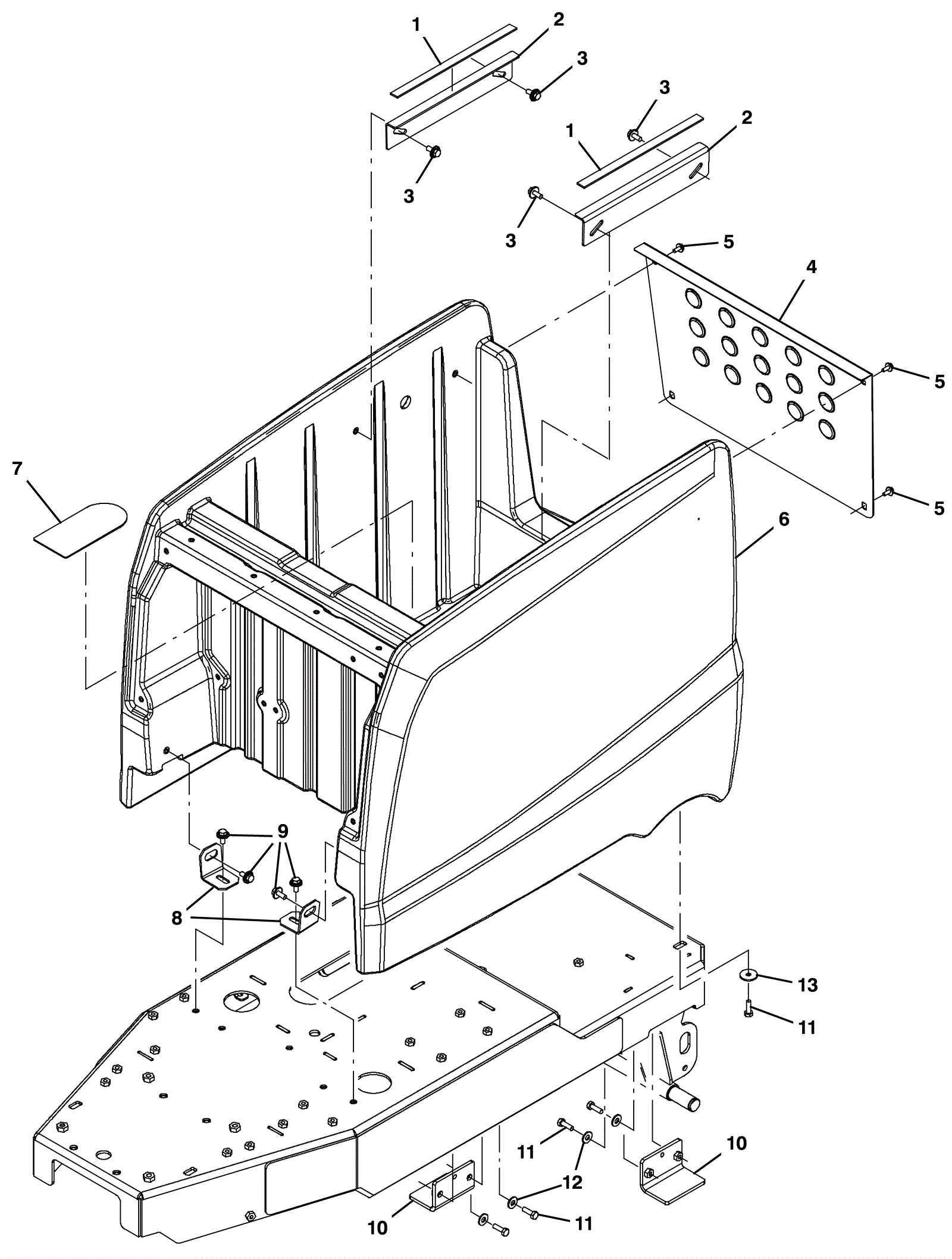

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7060
|
Adhesive rubber pad |
2 |
|
|
2 |
275-7061
|
Seat support bracket |
2 |
|
|
3 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
4 |
275-7062
|
Battery access panel |
1 |
|
|
5 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
6 |
175-2921
|
Rear body |
1 |
|
|
7 |
275-7064
|
Motor cover |
1 |
|
|
8 |
275-8184
|
Tank mounting bracket |
2 |
|
|
9 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
10 |
275-7065
|
Support bracket assembly |
2 |
|
|
11 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
13 |
275-7133
|
Washer .34B x 1.25D x .11 flat stainless steel |
2 |
|
|
