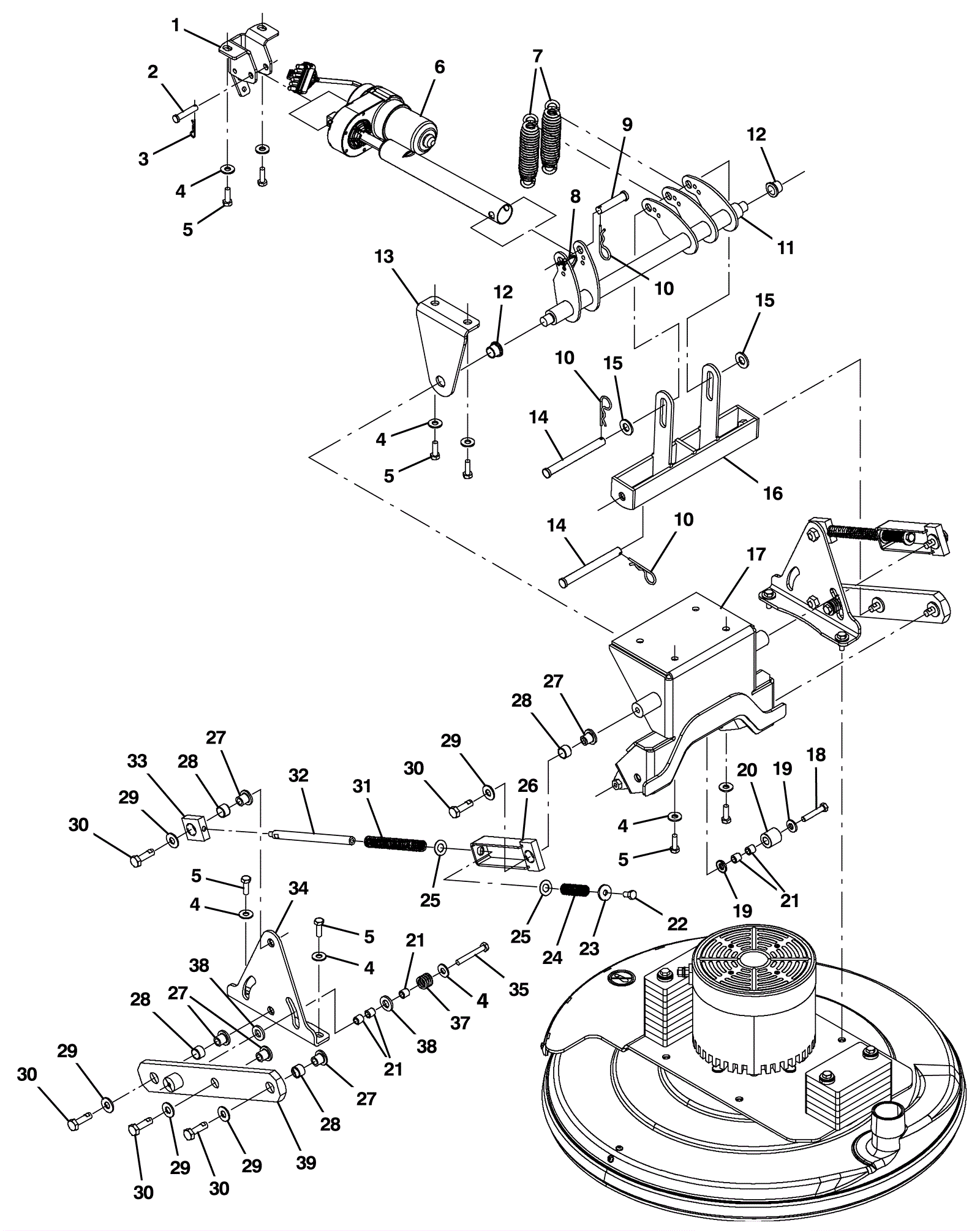

Head Lift Assembly

#PartDescription ReqNotesAvailability
1 275-7041 Actuator bracket 1
2 175-2592 Clevis Pin 0.37 D X 1.75 L 1
3 175-2113 Cotter pin 1
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 14
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 12
6 275-7042 24V actuator 1
7 275-7043 Extension spring 2
8 175-7795 Cable tie 1
9 175-9603 Clevis pin 1
10 175-2106 Cotter hair pin 3
11 275-7044 Bellcrank bracket 1
12 275-7045 Flanged bushing 2
13 275-7046 Pivot bracket 1
14 275-3981 PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) 2
15 999-0114 Washer 1/2 SAE flat 2
16 275-7047 Actuator lift weldment 1
17 275-7048 Bracket weldment 1
18 999-1426 Screw M8-1.25 x 45mm hex head stainless steel 2
19 999-1407 Washer 5/16 belleville 4
20 175-7911 Roller 2
21 175-2249 Sleeve 10
22 999-0783 Screw M8-1.25 x 16mm hex head 2
23 175-7920 Washer M8 flat stainless steel 2
24 275-7049 Compressed spring 2
25 999-1156 Washer M12-.7 nylon 4
26 275-7050 Upper arm weldment 2
27 275-7051 Flanged bushing 10
28 275-7052 Bushing 8
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 10
30 275-7053 Screw M10-1.5 x 35mm hex head stainless steel 10
31 275-7054 Compressed spring 2
32 275-7055 Spring rod 2
33 275-7056 Spring guide 2
34 275-7057 Pivot plate 2
35 999-1155 Screw M8-1.25 x 60mm hex head 2
37 275-7058 Compressed spring 2
38 175-0939 Thrust washer 4
39 275-7059 Lower arm weldment 2
