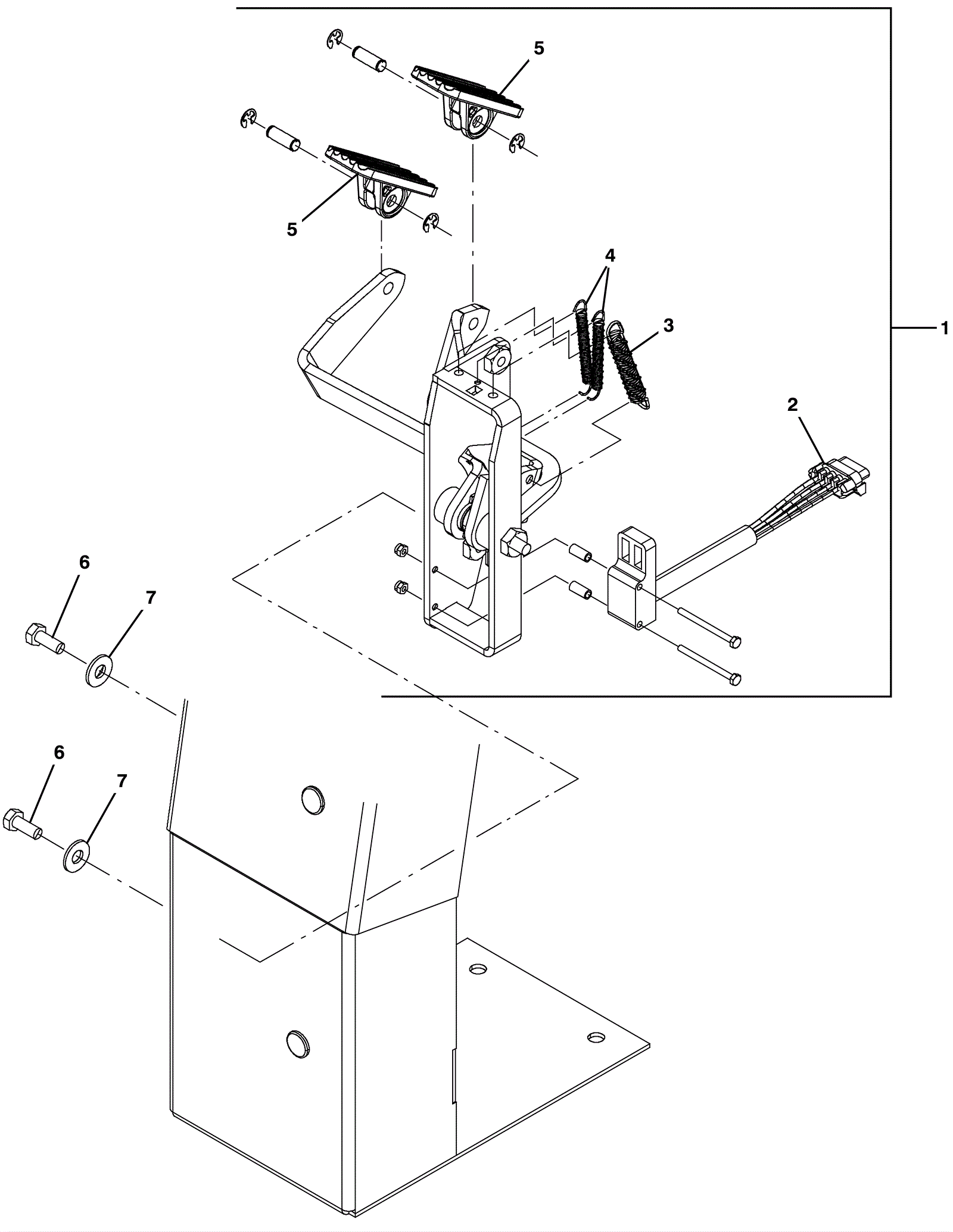

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6619
|
Pedal assembly |
1 |
(included 2-5) |
|
2 |
275-7039
|
Hall sensor |
1 |
|
|
3 |
275-9360
|
Extension spring |
1 |
|
|
4 |
275-7040
|
Extension spring (Tennant Industrial) |
2 |
|
|
5 |
275-6620
|
Foot pedal |
1 |
|
|
6 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
