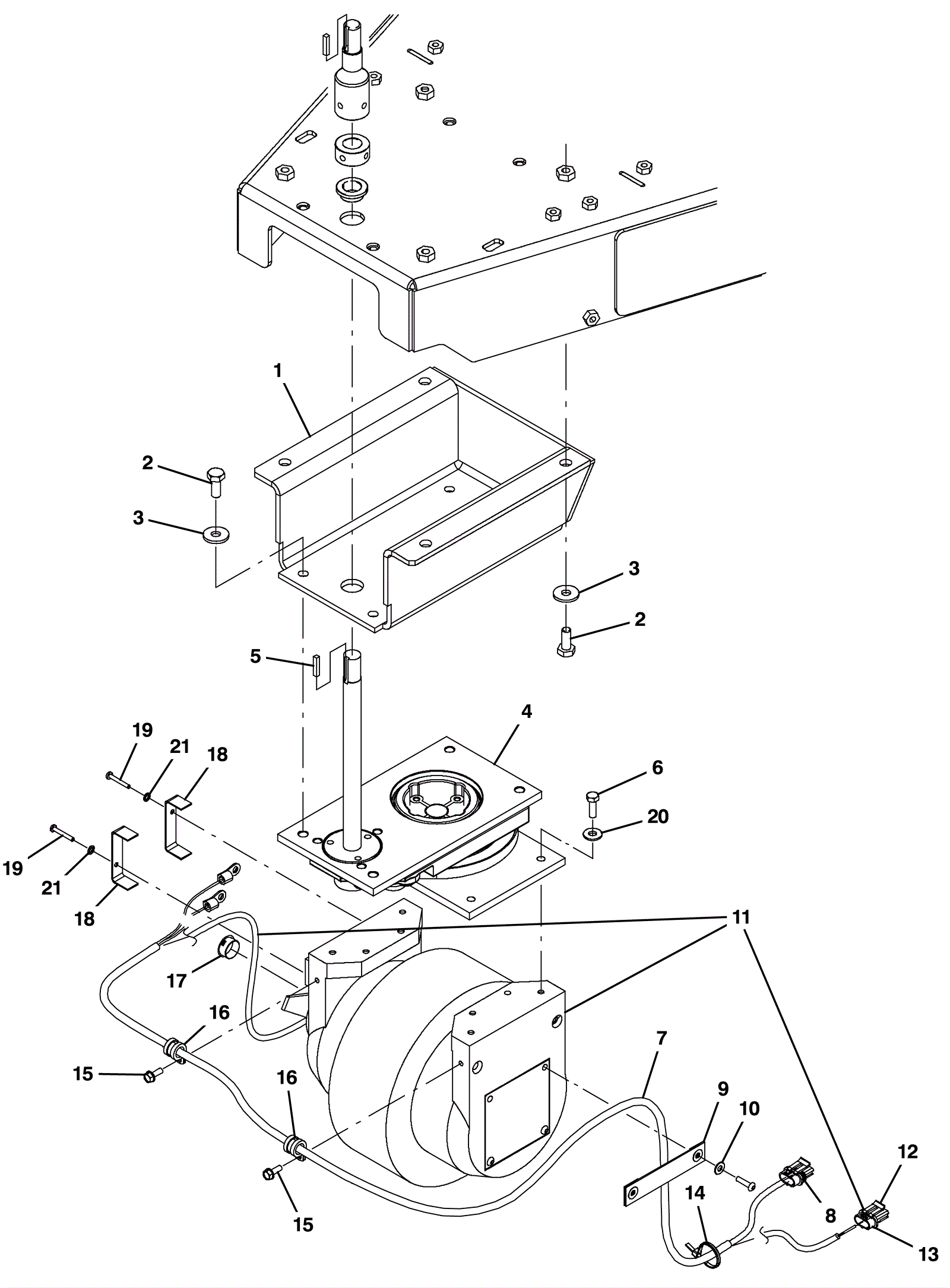

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7036
|
Wheel support bracket |
1 |
|
|
2 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
8 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
4 |
275-8091
|
Steering control assembly |
1 |
|
|
5 |
175-3200
|
Square keyway |
1 |
|
|
6 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
7 |
275-7037
|
Brake harness |
1 |
(includes 8) |
|
8 |
275-9355
|
Female connector |
1 |
(assembly only, no breakdown available) |
|
9 |
275-8095
|
Nylon strap |
1 |
|
|
10 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
11a |
275-6296
|
Wheel gearbox kit |
1 |
(includes 11b-13) |
|
11b |
275-8096
|
Female terminal |
2 |
|
|
11c |
275-8097
|
Wire seal |
2 |
|
|
12 |
175-8753
|
Female connector |
1 |
|
|
13 |
175-8756
|
Male and female secondary lock |
1 |
(connector only, no assembly available) |
|
14 |
175-7795
|
Cable tie |
4 |
|
|
15 |
175-3166
|
Bolt M6-1 x 16mm hex head |
2 |
|
|
16 |
175-7808
|
1/2 inch insulated P clamp |
2 |
|
|
17 |
175-3126
|
Plug |
1 |
|
|
18 |
275-7038
|
Cord bracket |
2 |
|
|
19 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
2 |
|
|
20 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
21 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
