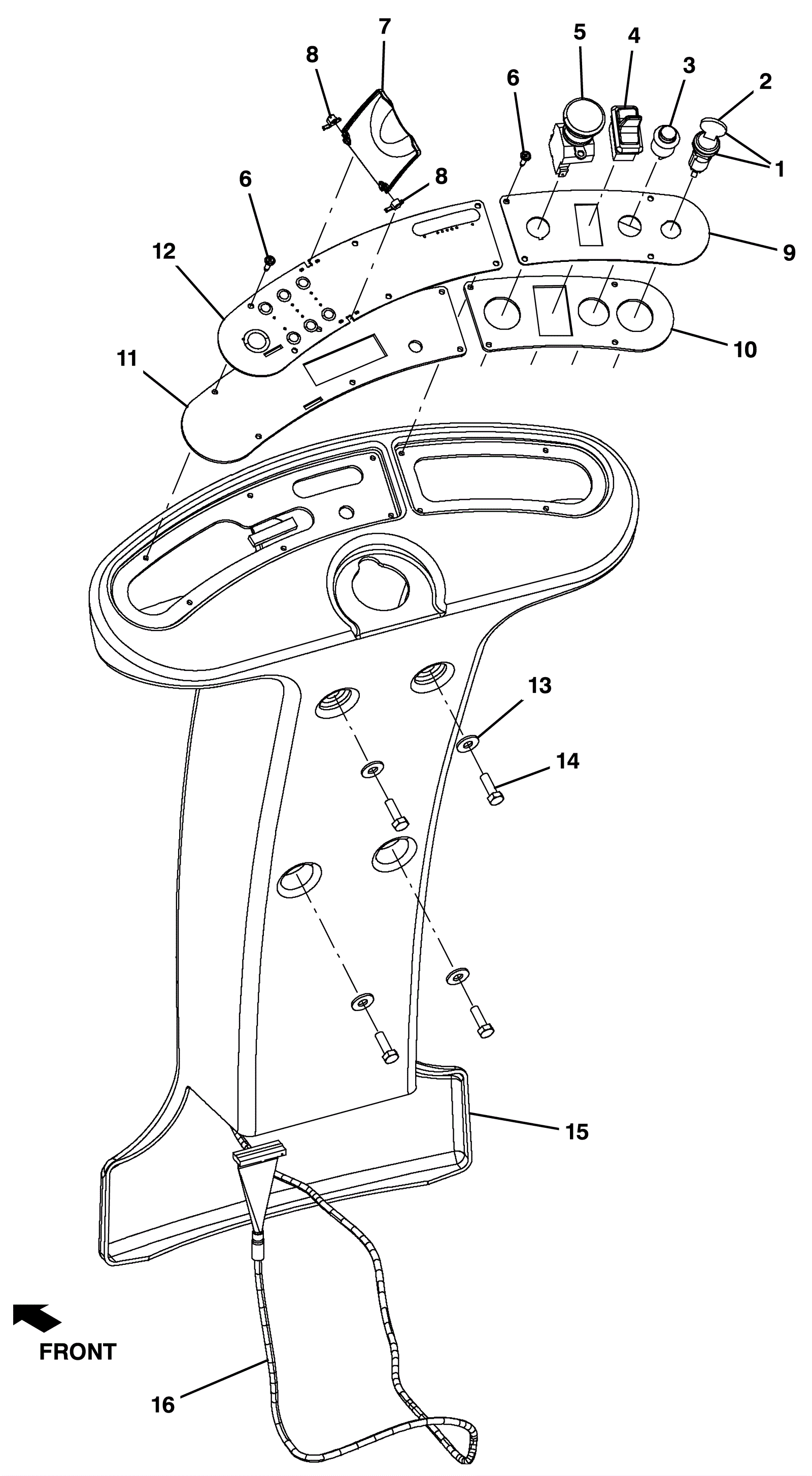

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7872
|
Key switch with 2 keys |
1 |
(includes 2) |
|
2 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
3 |
275-9354
|
Horn switch |
1 |
|
|
4 |
275-7033
|
Rocker switch |
1 |
|
|
5 |
275-1416
|
Safety shut-off switch |
1 |
|
|
6 |
275-1411
|
Plastic rivet |
10 |
|
|
7 |
275-8083
|
Instrument panel cover |
1 |
|
|
8 |
275-8084
|
Pivot block |
2 |
|
|
9 |
275-9349
|
Right hand instrument panel |
1 |
|
|
10 |
275-8087
|
Right hand panel gasket |
1 |
|
|
11 |
275-9348
|
Left hand panel gasket |
1 |
|
|
12 |
275-7034
|
Left hand instrument panel |
1 |
|
|
13 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
14 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
15 |
475-2597
|
COLUMN, CNTRL, AFMKT, RM-SPG |
1 |
|
|
16 |
275-8217
|
Ribbon cable |
1 |
|
|
