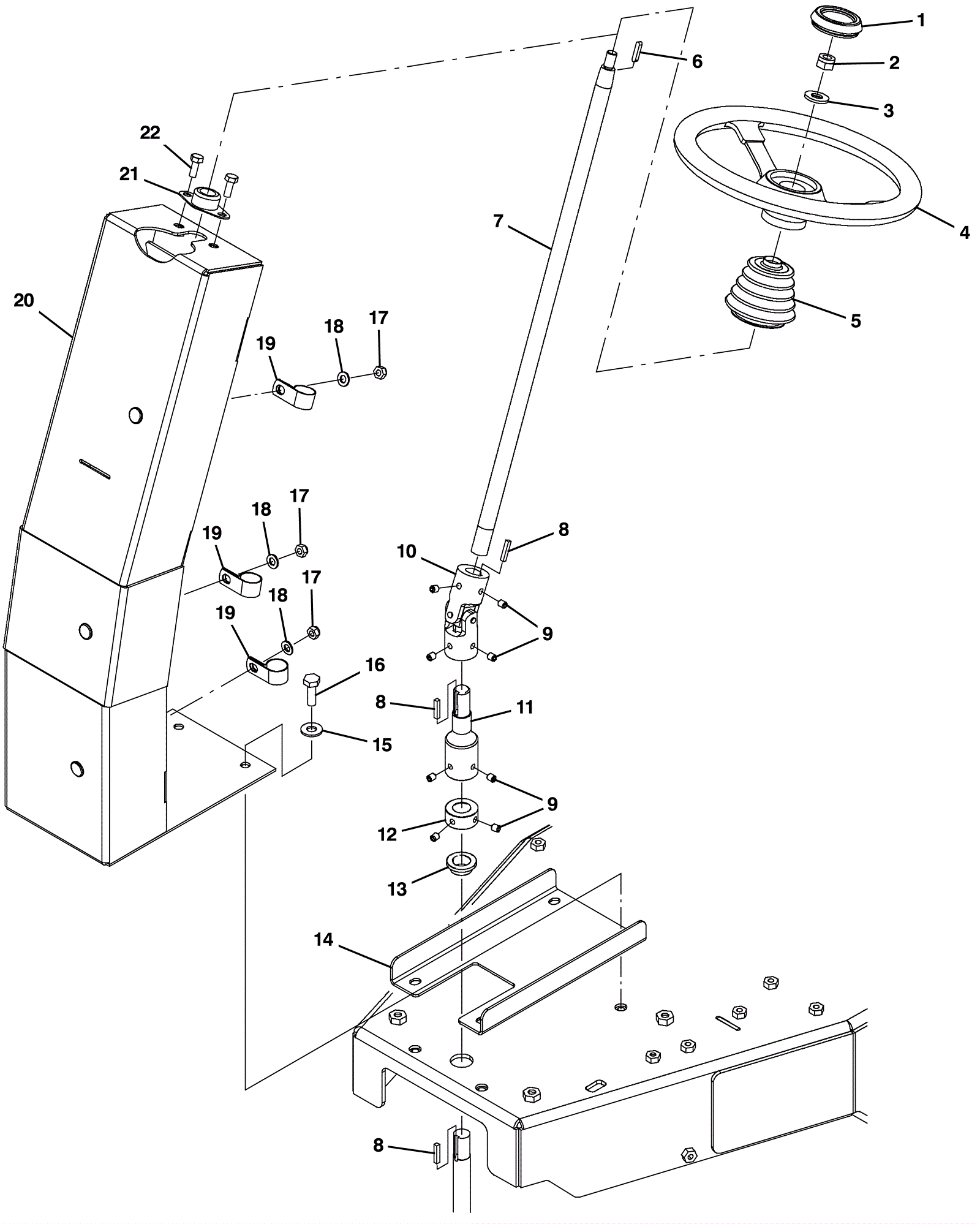

Steering Assembly

#PartDescription ReqNotesAvailability
1 275-8080 Steering wheel cap 1
2 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
3 275-9343 WASHER, FLAT, 0.53B 1.12D .11, STL, PL (Tennant Industrial) 1
4 275-8079 Steering wheel 1
5 275-8081 Steering shaft bellows 1
6 275-1468 Square keyway 1
7 275-8078 Steering wheel shaft 1
8 175-3200 Square keyway 3
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock 8
10 275-5323 U joint 1
11 275-7029 Steering shaft adapter 1
12 275-7030 Shaft collar 1
13 275-7031 Flanged bushing 1
14 275-7032 Steering plate 1
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
16 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 4
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
19 175-2260 P clamp 3
20 275-8077 Steering support weldment 1
21 175-3201 Flanged bearing 1
22 999-0783 Screw M8-1.25 x 16mm hex head 2
