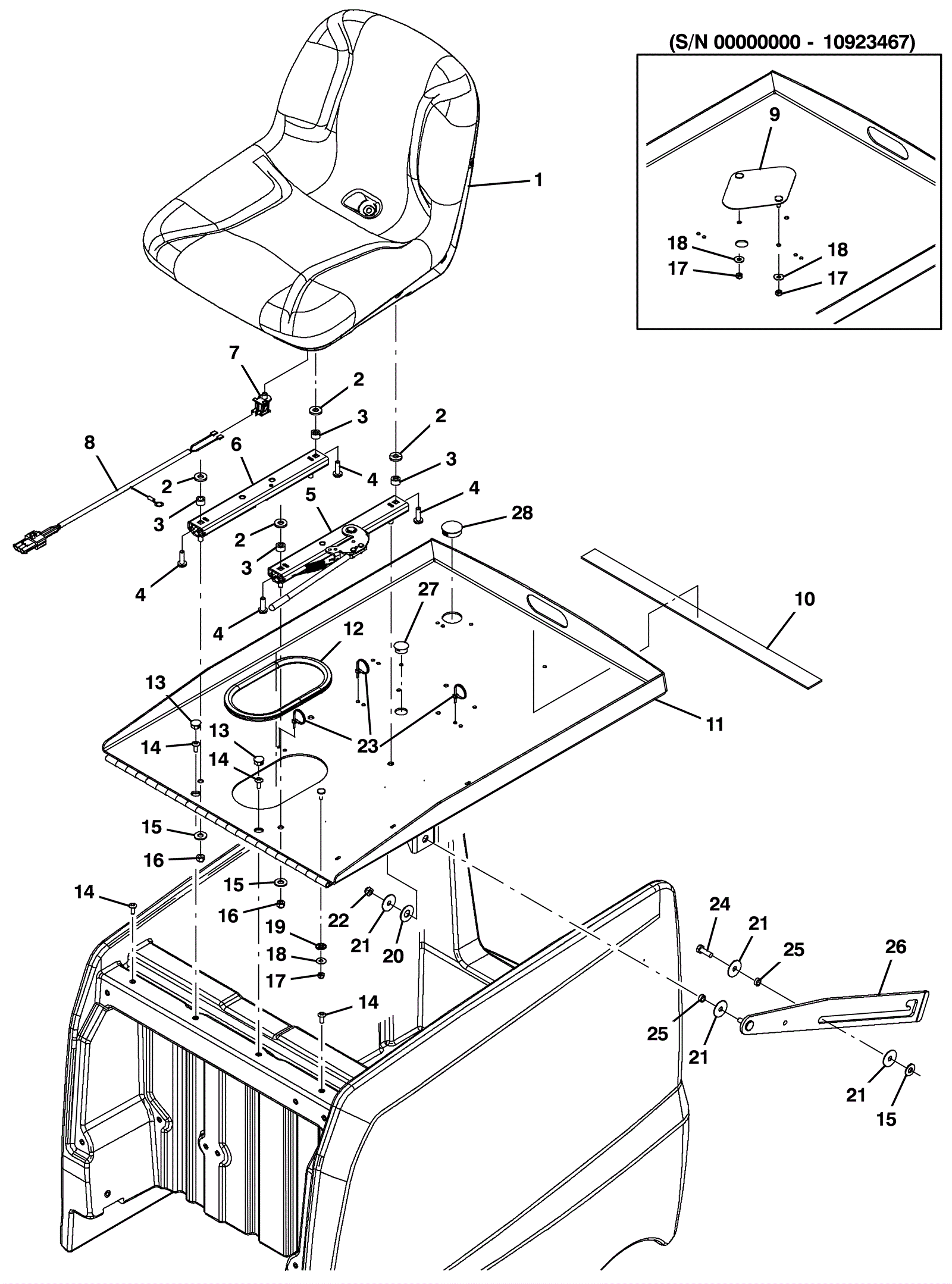

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9328
|
Seat kit (includes screw and spacer) |
1 |
(includes screw and spacer) |
|
2 |
175-3176
|
Washer 3/8 flat steel plated |
1 |
|
|
3 |
275-9333
|
Spacer |
4 |
|
|
4 |
275-9278
|
SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) |
4 |
|
|
5 |
275-8070
|
11 1/2 inch seat adjuster rail with latch |
4 |
|
|
6 |
275-8069
|
11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE |
1 |
|
|
7 |
275-9280
|
Seat switch |
1 |
|
|
8 |
275-9329
|
Seat harness |
1 |
|
|
9 |
275-7023
|
Cover plate (OBSOLETE) |
1 |
(before SN 10923466) |
|
10 |
275-7024
|
Adhesive rubber pad |
1 |
|
|
11a |
475-2490
|
PLATE, SEAT, AFMKT, PDC [SGR] [NA] |
1 |
|
|
11b |
275-7025
|
Seat plate |
1 |
|
|
12 |
275-8075
|
Trim |
1 |
|
|
13 |
275-7026
|
Plug (Tennant Industrial) |
2 |
|
|
14 |
275-7027
|
Screw M6-1 x 16mm truss head phillips |
4 |
|
|
15 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
5 |
|
|
16 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
17 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
19 |
275-0288
|
Washer 1/4 internal-external lock |
1 |
|
|
20 |
275-0055
|
WASHER, FLAT, 0.52B 1.25D .06, NYL (Tennant Industrial) |
1 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
22 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
23 |
175-7795
|
Cable tie |
3 |
|
|
24 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
25 |
175-0550
|
Sleeve |
2 |
|
|
26 |
275-7028
|
Arm bracket |
1 |
|
|
27 |
175-3126
|
Plug |
1 |
(models with out flashing light option) |
|
28 |
475-7418
|
PLUG, HOLE, RND, 1.37H 0.45L, BLK NYL (Tennant Industrial) |
1 |
(models with passive dust control) |
|
