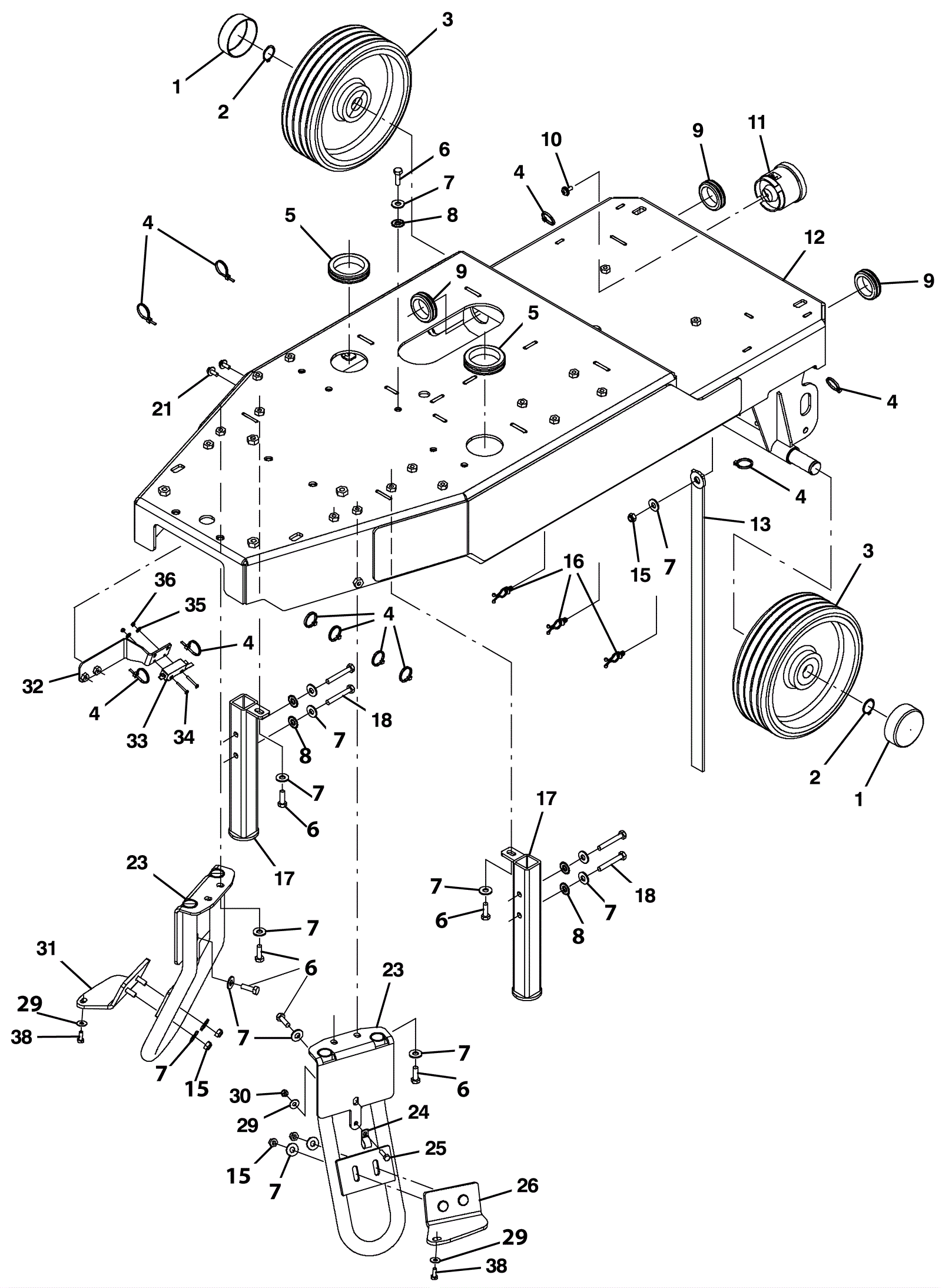

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8060
|
Cap |
2 |
|
|
2 |
175-3294
|
Retaining ring |
2 |
|
|
3 |
275-8059
|
Tire assembly |
2 |
|
|
4 |
175-7795
|
Cable tie |
11 |
|
|
5 |
275-7016
|
Rubber grommet |
2 |
|
|
6 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
9 |
|
|
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
18 |
|
|
8 |
175-2893
|
Washer 5/16 internal/external locking |
5 |
|
|
9 |
175-2366
|
Rubber grommet |
3 |
|
|
10 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
1 |
|
|
11 |
275-8062
|
Horn |
1 |
|
|
12 |
275-7017
|
Frame weldment |
1 |
|
|
13 |
275-9261
|
Static strip with grommet |
1 |
|
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
5 |
|
|
16 |
175-2095
|
Keeper clip |
3 |
|
|
17 |
275-7018
|
Jack weldment |
2 |
|
|
18 |
999-0788
|
Screw M8-1.25 x 55mm hex head stainless steel |
4 |
|
|
21 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
23 |
275-7019
|
Stabilization weldment |
2 |
|
|
24 |
175-2667
|
P clamp |
1 |
|
|
25 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
26 |
275-7020
|
Left hand support bracket |
1 |
|
|
29 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
30 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
31 |
275-7021
|
Right hand support bracket |
1 |
|
|
32 |
275-7022
|
Switch mounting bracket |
1 |
|
|
33 |
675-9886
|
Snap switch |
1 |
|
|
34 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
2 |
|
|
35 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
36 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
38 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
