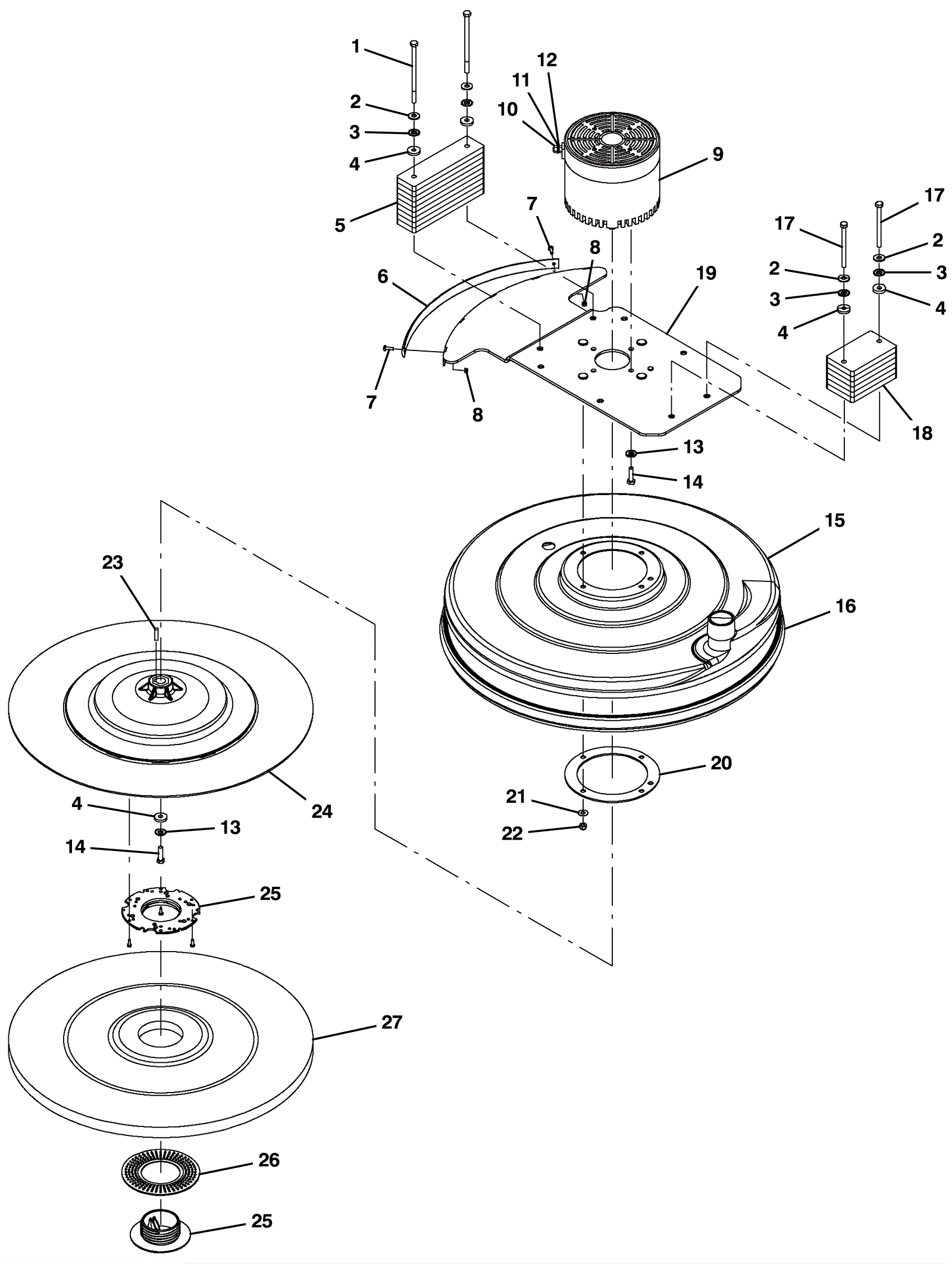

Pad Driver Assembly

#PartDescription ReqNotesAvailability
1 275-7000 Screw M8-1.25 x 140mm hex hd stainless steel 2 (24 inch)
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
3 175-2893 Washer 5/16 internal/external locking 4 (24 inch)
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 5
5 275-7001 Long block 9 (24 inch)
6 275-7002 3 foot bumper strip 1
7 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
8 999-0740 Nut M5-.8 hex stainless steel 2
9a 475-2901 MOTOR KIT, BURNISH, REPLMT [B10] 1 (includes 9b-12)
9b 275-7004 Carbon brush assembly 1 (includes 8 carbon brushes, 8 springs, and 2 electrical terminals)
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
12 999-0406 Washer 5/16 internal star lock zinc plated 2
13 999-1407 Washer 5/16 belleville 5
14 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 5
15a 275-7007 24 inch (600mm) shroud assembly 1 (24 inch)
15b 275-7014 27 inch (680mm) shroud assembly 1 (27 inch)
16a 275-7008 24 inch (600mm) skirt assembly 1 (24 inch)
16b 275-7015 27 inch (680mm) skirt assembly 1 (27 inch)
17 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) 2 (24 inch)
18 275-7006 Short block 6 (24 inch)
19a 275-7005 Motor mounting plate (for 24 inch model) 1 (24 inch)
19b 275-7013 Motor mounting plate (for 27 inch model) 1 (27 inch)
20 275-7010 Plate 1
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 (24 inch)
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
23 175-5356 Square keyway 1
24a 275-7011 24 inch (600mm) pad driver assembly 1 (24 inch) (includes 25-26)
24b 275-7525 27 inch (680mm) pad driver assembly 1 (27 inch) (includes 25-26)
25 175-0182 Universal center lock 1
26 275-7012 Locking collar 1
27 475-1263 PAD, BURNISH, 24.0D, HAIRBLEND 1PK=1PAD 1
