| # | Part | Description |
Req | Notes | Availability |
|---|

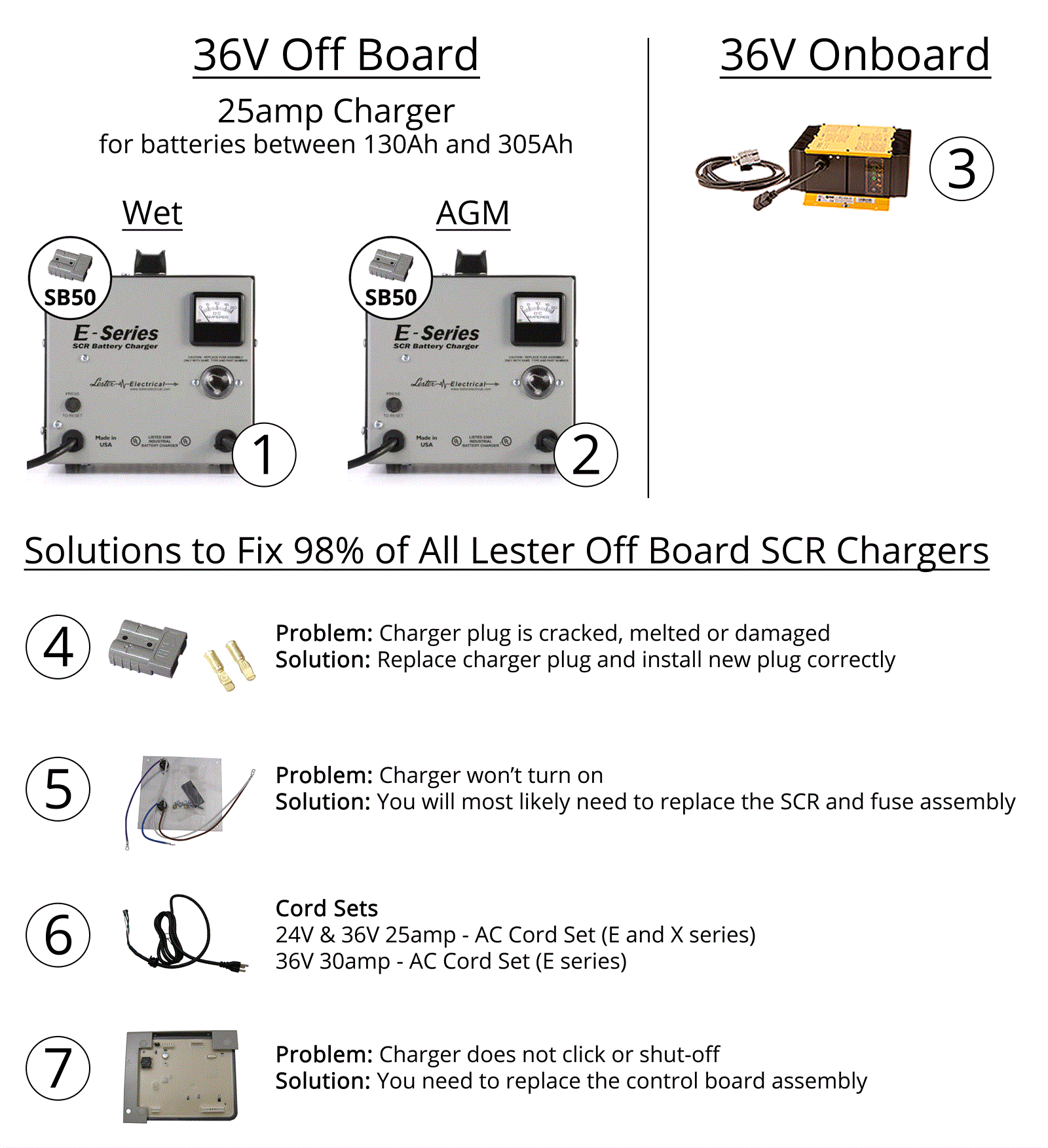

1 |
162-5062
|
36V 20amp battery charger with small SB50 gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
|
3a |
275-1247
|
36V 21amp onboard flooded, gel, and AGM battery charger |
1 |
|
|
3b |
991-8566
|
Onboard battery charger power cord |
1 |
|
|
3c |
991-3049
|
36V 20amp charger |
1 |
(NON-OEM) |
|
4 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
|
5a |
162-5079
|
SCR assembly kit (OBSOLETE) |
1 |
|
|
5b |
372-1254
|
Fuse assembly |
1 |
|
|
6 |
162-5087
|
AC cord set kit |
1 |
|
|
7 |
162-5081
|
Control board assembly (OBSOLETE) |
1 |
|
|
8 |
375-4433
|
36V 20amp onboard battery charger |
1 |
|
|
