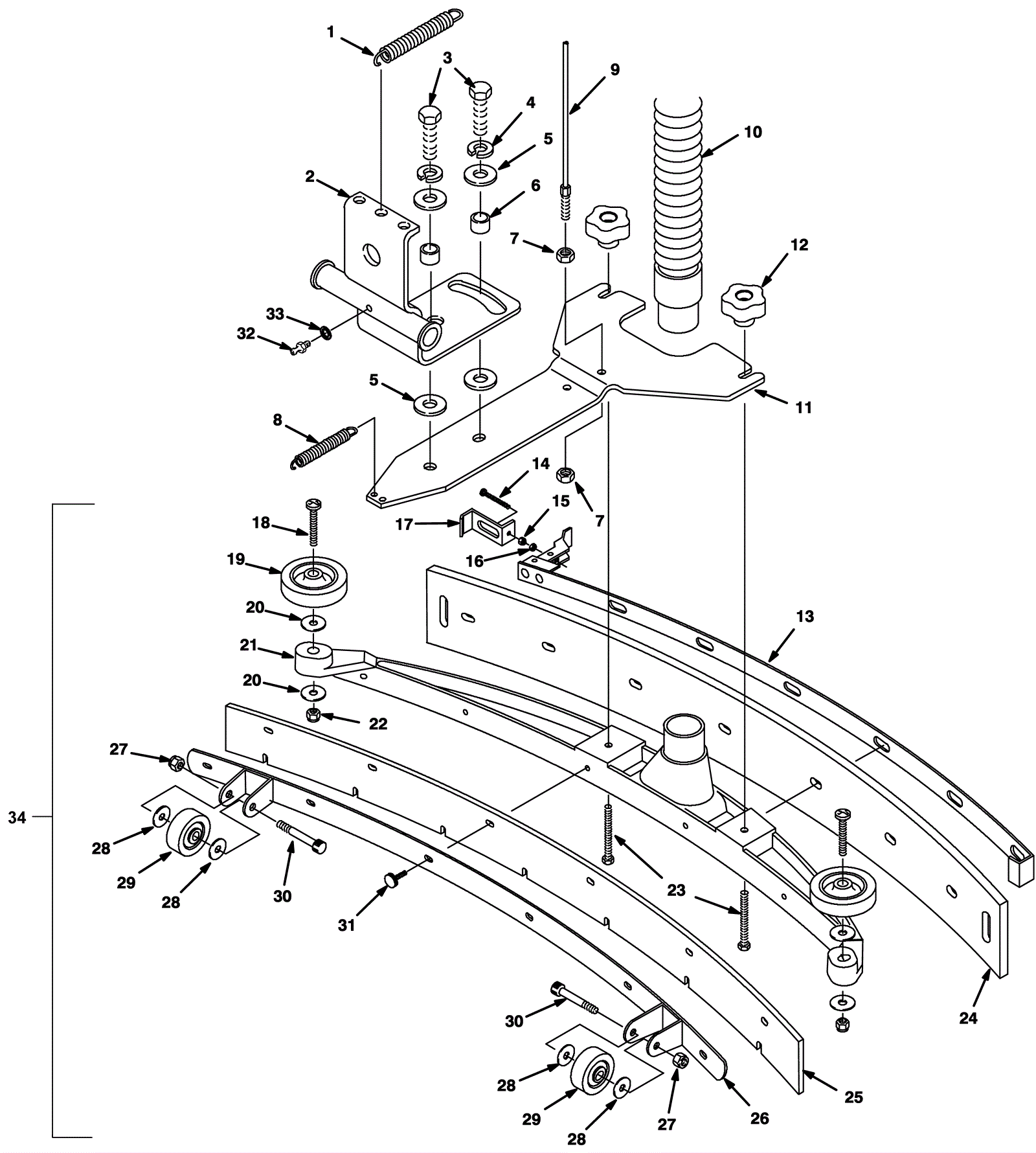

SPEEDSCRUB 2001 XR Squeegee Assembly - Curved - After 2001

#PartDescriptionPriceReqNotesAvailability
1 175-2971 Extension spring $11.11 1 usually ships 5-16 days
2 175-2972 Squeegee pivot mount $306.35 1 usually ships 1-5 days
3 999-0561 Bolt 1/2-13 x 1 hex head stainless steel $3.28 2 ships same day
4 999-0126 Washer 1/2 split lock $1.28 2 ships same day
5 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
6 175-2743 Sleeved bushing $3.85 2 ships same day
7 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
8 175-2970 Extension spring $6.60 2 usually ships 5-16 days
9 175-3068 Squeegee lift cable $32.78 1 ships same day
10 175-2060 Vacuum hose with cuffs 1 1/2 x 24 inch $62.15 1 usually ships 5-16 days
11 175-6653 Squeegee mount bracket $194.59 1 usually ships 5-16 days
12 175-2812 Knob $9.35 2 ships same day
13 175-6654 Squeegee band $125.73 1 usually ships 5-16 days
14 175-3721 Screw M5-.8 x 45mm $3.96 1 ships same day
15a 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 1 (model 2001E from 11-01 to 03-06) ships same day
16 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
17 175-6655 Squeegee band clip $13.53 1 usually ships 5-16 days
18 175-4793 Screw M8-1.25 x 70mm $6.49 2 usually ships 5-16 days
19a 175-0117 Guide wheel with bushing $9.68 2 (OEM) ships same day
19b 993-0829 WHEEL $4.96 2 (NON-OEM) usually ships 1-5 days
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
21 175-6656 Squeegee casting frame semi-curved 20 inch $506.99 1 usually ships 5-16 days
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
23 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel $1.65 2 ships same day
24a 175-6657 Squeegee blade 30 inch (760mm) linatex rear (red) $39.05 1 (standard) usually ships 5-16 days
24c 175-6659 Squeegee blade 30 inch (760mm) urethane rear (OBSOLETE) $124.85 1 (optional) usually ships 5-16 days
25a 175-3507 Squeegee blade 30 inch (760mm) linatex front (red) $24.31 1 (standard) usually ships 5-16 days
25b 175-6660 Squeegee blade 30 inch (760mm) gum rubber front (tan) $29.37 1 (optional) usually ships 5-16 days
25c 175-6661 Squeegee blade 30 inch (760mm) urethane front $78.76 1 (optional) usually ships 5-16 days
25d 175-4777 Squeegee blade 30 inch (760mm) linatex front (red) (OBSOELTE $88.39 1 (optional) (quarry tile) usually ships 5-16 days
25e 175-2976 Squeegee blade 30 inch gum rubber front (tan) (OBSOLETE) $49.94 1 (optional) (quarry tile) usually ships 5-16 days
25f 175-4778 Squeegee blade 30 inch (760mm) urethane front (OBSOLETE) $111.43 1 (optional) (quarry tile) usually ships 5-16 days
26 175-6662 Squeegee front band assembly $143.00 1 usually ships 5-16 days
27 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 2 ships same day
28 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
29 991-2013 Wheel $8.50 2 ships same day
30 175-3719 Screw 3/8 x 1 1/4 shoulder $5.83 2 ships same day
31 175-3718 Knob $3.96 6 ships same day
32 175-1082 Grease fitting $4.95 1 (after 2006) usually ships 1-5 days
33 175-4544 Washer M6 locking $4.62 1 (after 2006) ships same day
34a 275-6122 XR squeegee assembly $945.34 1 (model 2001 after 2006) (includes 12-24a,25a,26-31) usually ships 5-16 days
34b 275-7536 Squeegee assembly $965.47 1 (model 2001E) (includes 12-24a,25a,26-31) usually ships 5-16 days
