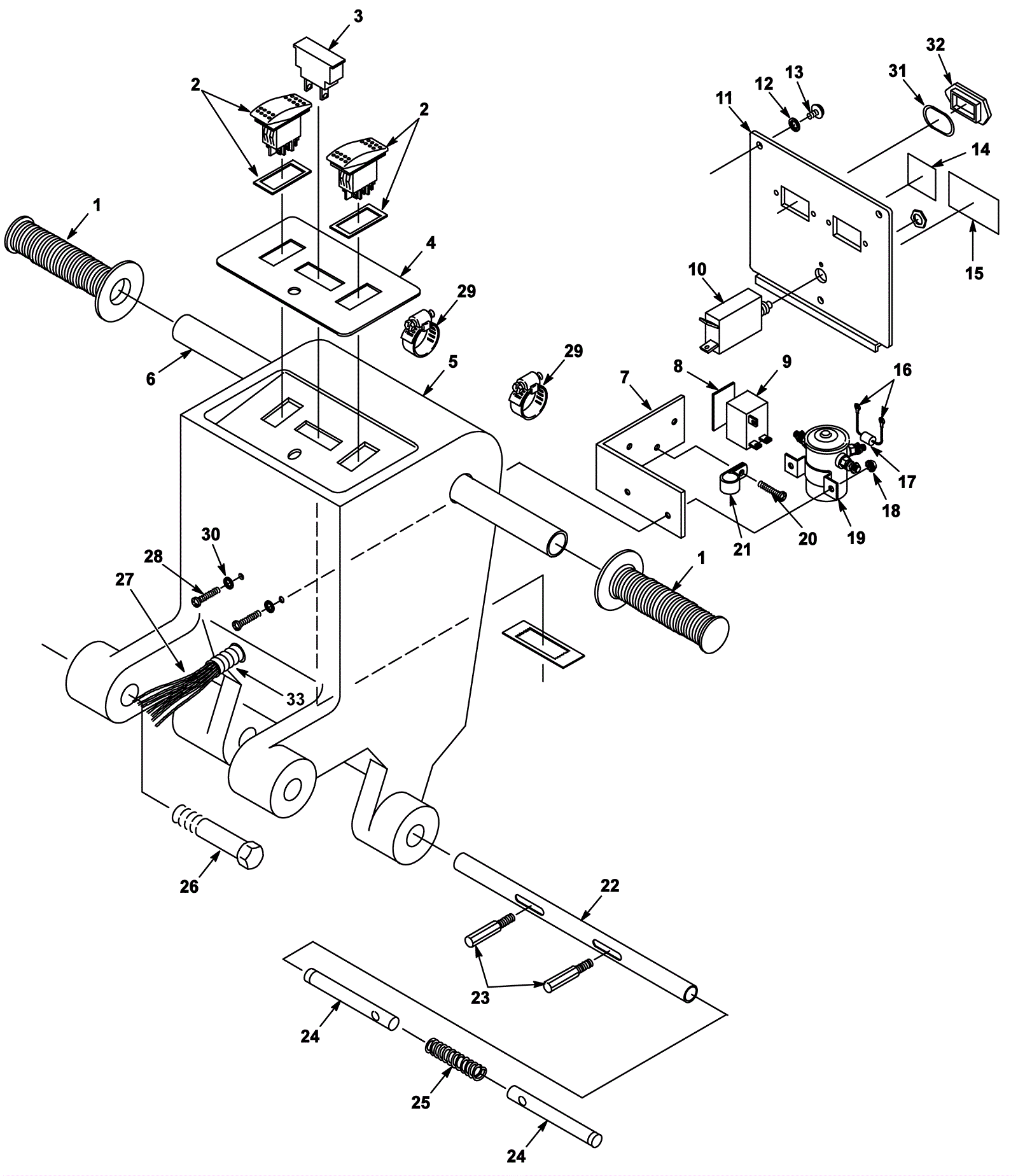

SPEEDSCRUB 2001 Control Console Assembly - After 2001

#PartDescriptionPriceReqNotesAvailability
1a 175-2703 Handle grip $4.07 2 (OEM) ships same day
1b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
2 175-1008 Rocker switch $30.25 2 ships same day
3 175-2691 Battery voltage meter $83.49 1 usually ships 5-16 days
4 175-0980 Dash decal (2001B) $34.76 1 usually ships 5-16 days
5 175-1151 Green control housing $164.45 1 usually ships 1-5 days
6 175-1012 Tube handle $16.17 1 usually ships 1-5 days
7 175-0987 Electrical mount bracket $50.49 1 usually ships 1-5 days
8 175-0287 Acrylic foam tape 1 inch x 1 foot $15.07 1 usually ships 5-16 days
9 175-2756 24V flasher $87.01 1 usually ships 5-16 days
10 175-2762 35amp circuit breaker $136.51 1 usually ships 5-16 days
11 175-0990 Control console cover $27.28 1 usually ships 1-5 days
12 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
13 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
14 175-2649 Do not spray decal $4.29 1 usually ships 5-16 days
15 275-1360 Warning decal $11.00 1 (between 2001-2006) usually ships 5-16 days
16 175-0924 #10 ring terminal $3.08 2 usually ships 5-16 days
17 175-2757 Diode with ring terminals (small) $11.11 1 usually ships 5-16 days
18 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
19 175-2023 24V solenoid contactor $62.15 1 ships same day
20 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
21 175-0988 P clamp $3.08 1 usually ships 5-16 days
22 175-3108 Handle adjustment tube $67.10 1 usually ships 1-5 days
23 175-2710 Handle adjustment pin $16.61 2 usually ships 1-5 days
24 175-3109 Handle locking pin $20.79 2 usually ships 1-5 days
25 175-2712 Spring $4.84 1 usually ships 1-5 days
26 175-0981 Bolt 5/8 x 2 shoulder $8.47 2 usually ships 1-5 days
27 175-0985 24V Battery wire harness assembly $85.36 1 usually ships 5-16 days
28 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 2 ships same day
29 997-2007 Hose clamp $2.07 2 ships same day
30 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
31 175-3144 O-ring $3.41 2 usually ships 5-16 days
32 175-3646 Hour meter plug $9.79 2 ships same day
33 175-1167 Sheathing $11.22 1 (after 2006) usually ships 1-5 days
