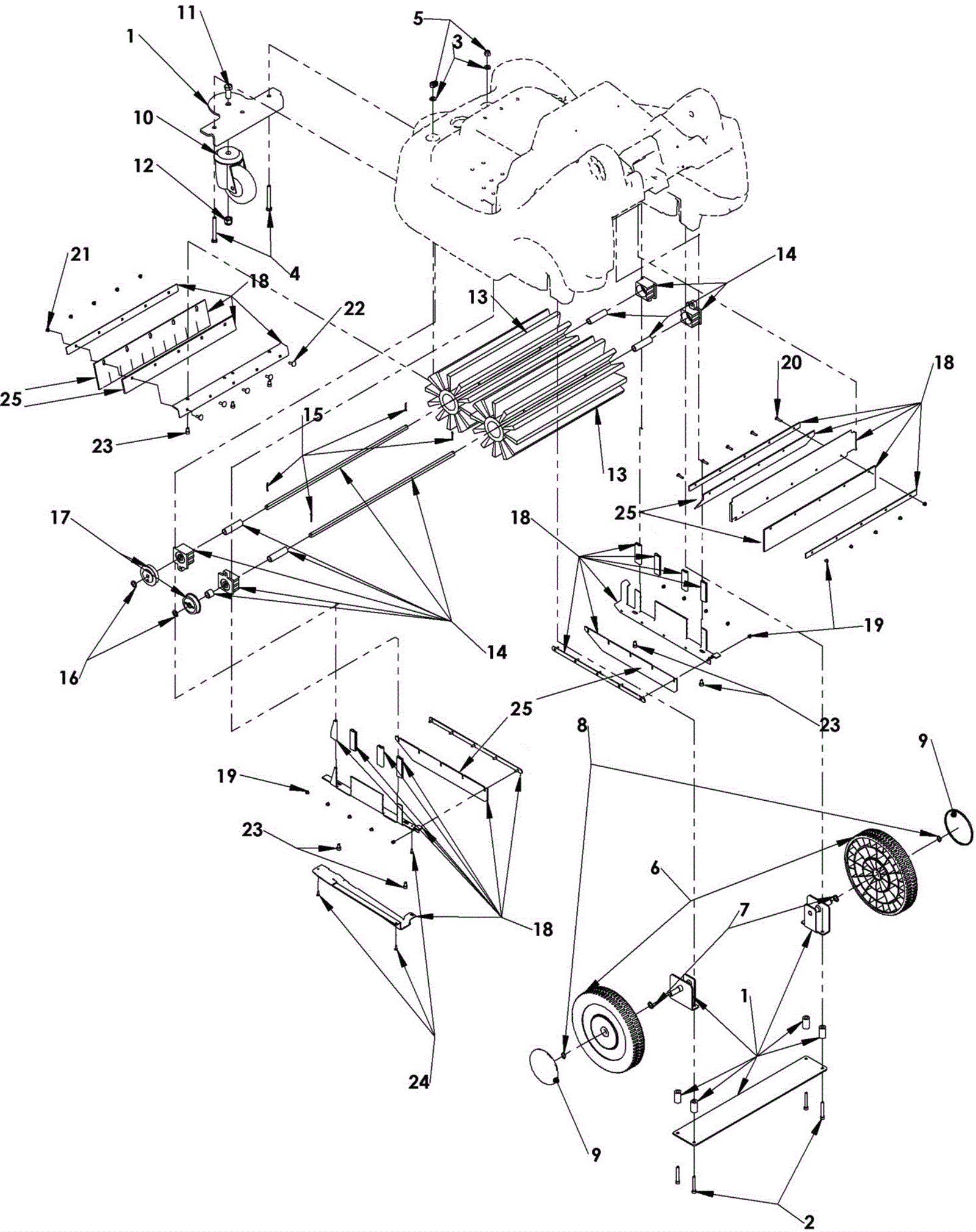

S5 Caster Wheel and Main Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7913 Wheel mounting kit $202.40 1 (includes 2-5) usually ships 5-16 days
2 999-9129 Screw M6-1 x 45mm socket head stainless steel $1.50 4 usually ships 1-5 days
3 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
4 999-1379 Screw M8-1.25 x 70mm socket head stainless steel $0.99 2 usually ships 1-5 days
6 275-7914 Wheel kit $51.26 2 (includes 7-8) usually ships 5-16 days
7 999-1346 Washer M12 flat stainless steel $0.99 2 ships same day
8 N/A Not available Call for price 2 (locking ring) (only available with 6) usually ships 3-26 days
9 275-7915 Hub cap kit $10.78 1 usually ships 5-16 days
10 275-7916 Caster kit $97.57 1 (includes 11-12) ships same day
11 999-1613 Screw M12-1.75 x 30mm socket head stainless steel $4.62 1 usually ships 1-5 days
12 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
13 275-7917 Brush kit $437.03 2 ships same day
14 275-7918 Brush axle kit $216.37 1 (includes 15 and 16) ships same day
15 999-9130 Cotter pin 2.5 x 20 $0.99 4 ships same day
16 999-1346 Washer M12 flat stainless steel $0.99 2 ships same day
17 275-6566 Main brush pulley kit $110.11 1 usually ships 5-16 days
18 275-7919 Brush flap kit $430.21 1 (includes 19-24) ships same day
19 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 15 ships same day
20 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 5 ships same day
21 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 5 ships same day
22 999-1657 Bolt M5-.8 x 16mm carriage stainless steel $1.74 5 usually ships 1-5 days
23 999-1590 Screw M6-1 x 10mm socket head zinc $0.99 7 ships same day
24 N/A Not available Call for price 3 (Screw 3.5 x 13 pan head t-cut) (only available with 18) usually ships 3-26 days
25 475-2314 BRUSH FLAP ONLY KIT, SWPR [S5] $239.80 1 usually ships 5-16 days
