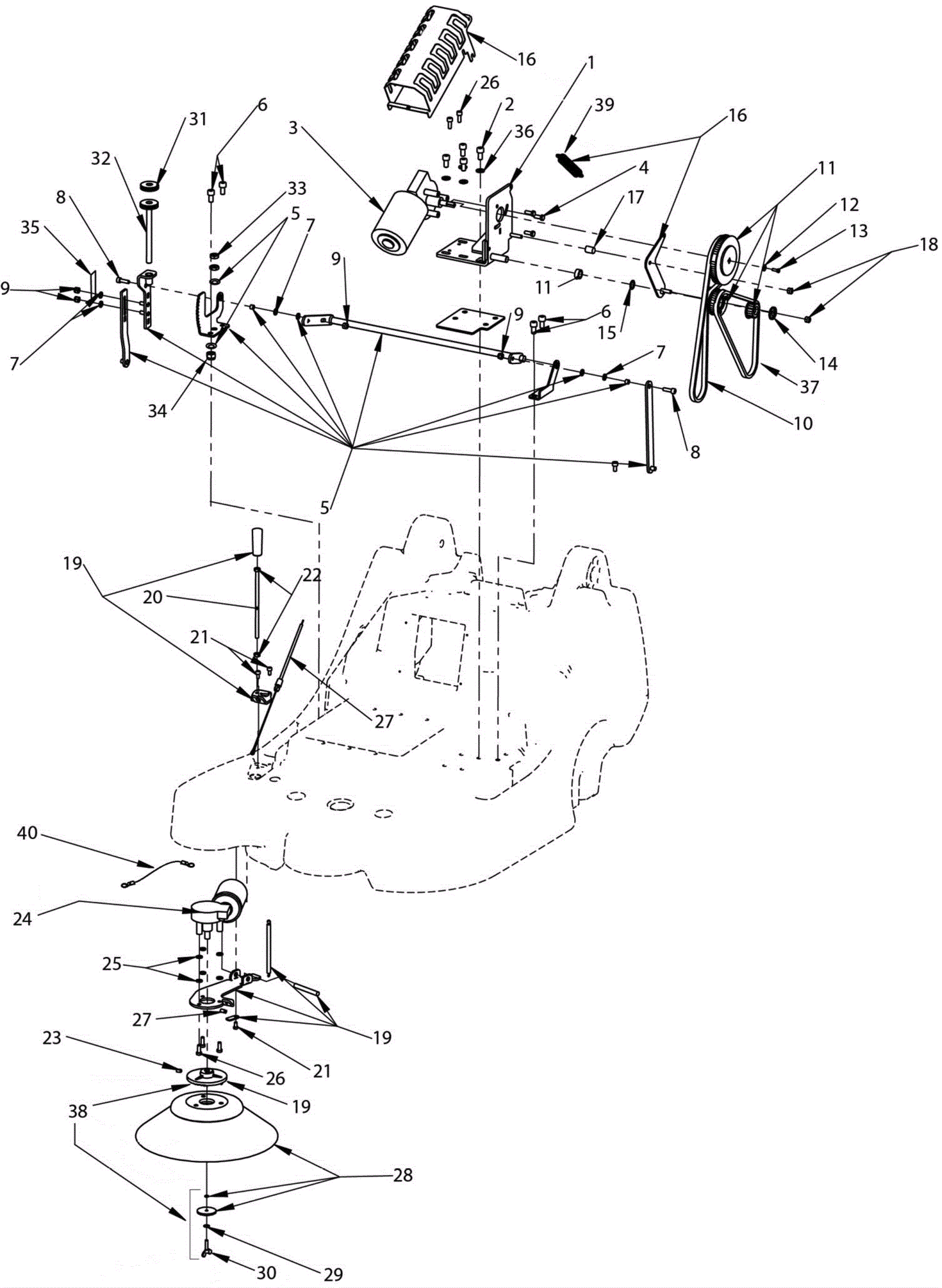

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-7923
|
Battery and fan bracket kit |
$395.01
|
1 |
(includes 2) |
usually ships 5-16 days |
2 |
999-1432
|
Screw M8-1.25 x 16mm socket head stainless steel |
$2.72
|
4 |
|
ships same day |
3 |
275-6514
|
Main brush motor kit |
$597.08
|
1 |
(includes 4) |
usually ships 5-16 days |
4 |
999-1644
|
Screw M6-1 x 16mm hex lock |
$2.37
|
3 |
|
usually ships 1-5 days |
5 |
275-7920
|
Main brush adjuster kit |
$153.23
|
1 |
(includes 6-9) |
usually ships 1-5 days |
6 |
999-1432
|
Screw M8-1.25 x 16mm socket head stainless steel |
$2.72
|
4 |
|
ships same day |
7 |
999-1261
|
Washer M6 flat stainless steel |
$0.99
|
4 |
|
ships same day |
8 |
999-1320
|
Screw M6-1 x 20mm socket head stainless steel |
$0.99
|
2 |
|
ships same day |
9 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
$0.99
|
4 |
|
ships same day |
10 |
375-1200
|
32 inch brush belt kit |
$114.29
|
1 |
|
usually ships 5-16 days |
11 |
275-6566
|
Main brush pulley kit |
$110.11
|
1 |
(includes 12-15) |
usually ships 5-16 days |
12 |
999-9089
|
Washer M4 flat stainless steel |
$0.99
|
1 |
|
ships same day |
13 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
$1.29
|
1 |
|
ships same day |
14 |
N/A
|
Not available |
Call for price
|
1 |
(retaining ring) (only available with 11) |
usually ships 3-26 days |
15 |
N/A
|
Not available |
Call for price
|
1 |
(washer) (only available with 11) |
usually ships 3-26 days |
16 |
275-7921
|
Brush belt tensioner kit |
$34.10
|
1 |
(includes 17-18) |
usually ships 5-16 days |
17 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available with 16) |
usually ships 3-26 days |
18 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
$0.99
|
2 |
|
ships same day |
19 |
275-7922
|
Side brush bracket kit |
$168.08
|
1 |
(includes 20-23) |
ships same day |
20 |
N/A
|
Not available |
Call for price
|
1 |
(bolt M6-1 x 160mm threaded) (only available with 19) |
usually ships 3-26 days |
21 |
999-1656
|
Screw M5-.8 x 10mm socket head stainless steel |
$1.23
|
3 |
|
ships same day |
22 |
999-1308
|
Nut M6-1 hex stainless steel |
$0.99
|
2 |
|
ships same day |
23 |
999-0807
|
Screw M6-1 x 10mm flat head phillips |
$2.49
|
1 |
|
ships same day |
24 |
275-6529
|
Side brush motor kit |
$514.80
|
1 |
(includes 25-26) |
ships same day |
25 |
999-1261
|
Washer M6 flat stainless steel |
$0.99
|
6 |
|
ships same day |
26 |
999-1647
|
Screw M6-1 x 16mm socket head stainless steel |
$0.99
|
5 |
|
ships same day |
27 |
275-6532
|
Side brush lift cable kit (OBSOLETE) |
Call for price
|
1 |
|
usually ships 5-16 days |
28 |
275-7518
|
Side brush kit |
$122.76
|
1 |
(includes 29-30) |
ships same day |
29 |
999-9132
|
Washer M5 split lock stainless steel |
$0.99
|
1 |
|
ships same day |
30 |
999-1655
|
Screw M5-.8 x 20mm wing stainless steel |
$31.09
|
1 |
|
ships same day |
31 |
275-6523
|
Knob kit |
$110.55
|
1 |
(includes 32-34, 36) |
ships same day |
32 |
999-1649
|
Screw M10-1.25 x 100mm hex head stainless steel |
$4.90
|
1 |
|
usually ships 1-5 days |
33 |
999-9133
|
Nut M10-1.5 nut hex head stainless steel |
$1.25
|
2 |
|
usually ships 1-5 days |
34 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
$3.92
|
1 |
|
ships same day |
35 |
275-6533
|
Decal kit |
$186.78
|
1 |
|
usually ships 1-5 days |
36 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
4 |
|
ships same day |
37 |
375-1201
|
24 inch rear brush belt kit |
$23.32
|
1 |
|
usually ships 5-16 days |
38 |
275-6726
|
Side brush drive hub kit |
$46.75
|
1 |
|
ships same day |
39 |
N/A
|
Not available |
Call for price
|
1 |
(spring, tensioner and brush belt) (only available with 275-6735) |
usually ships 3-26 days |
40 |
375-3990
|
Ground wire |
$22.99
|
1 |
|
usually ships 5-16 days |
