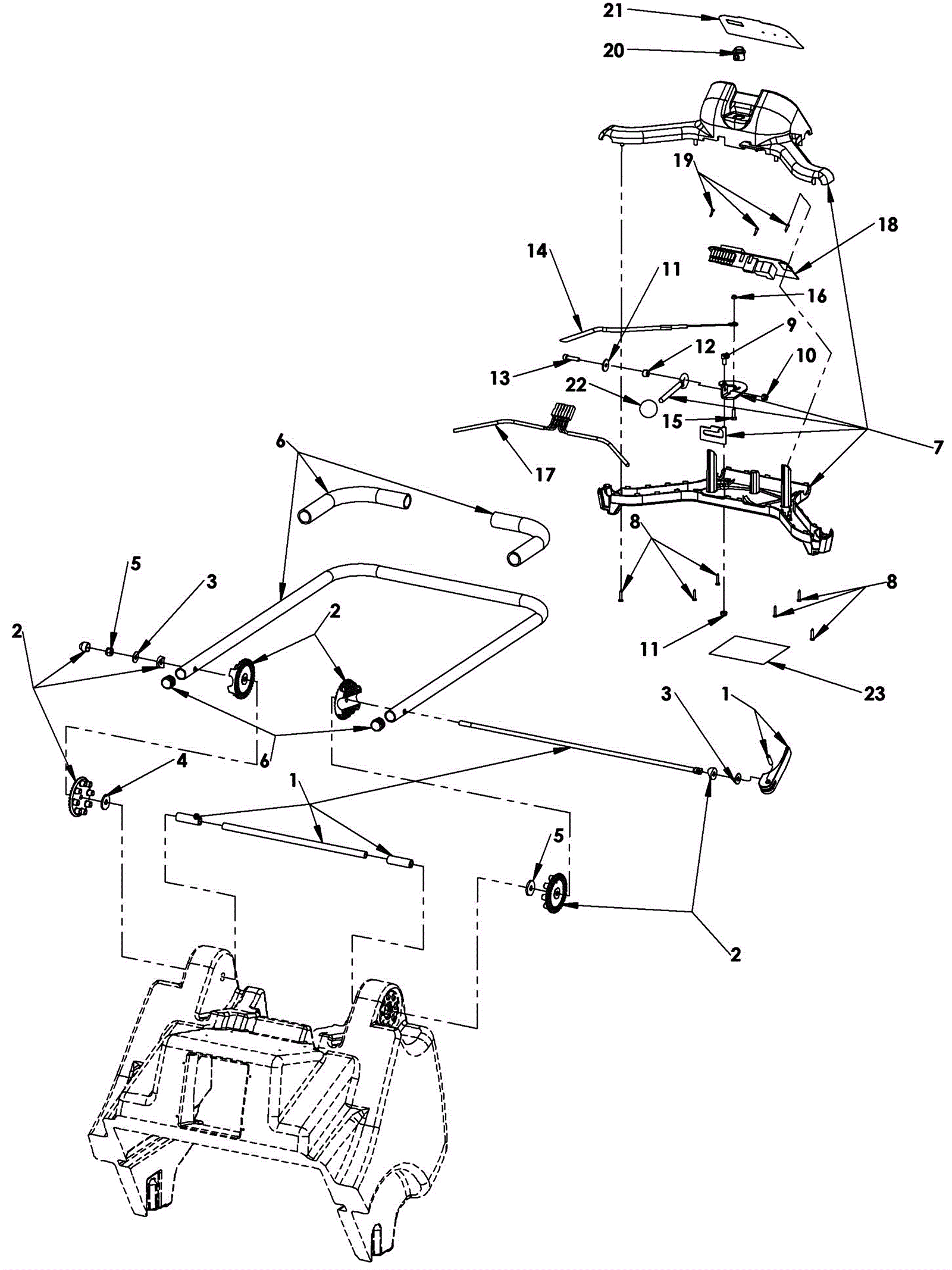

S5 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7932 Handle rod and lever kit $76.56 1 usually ships 5-16 days
2 275-6542 Handle pivot disc kit $82.83 1 (includes 3-5) usually ships 5-16 days
3 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
4 N/A Not available Call for price 2 (washer M8 x 28mm flat) (only available with 2) usually ships 3-26 days
5 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
6 275-7933 Handle kit $290.95 1 usually ships 5-16 days
7 275-6548 Instrument panel kit $158.95 1 (includes 8-13) ships same day
8 N/A Not available Call for price 6 (screw 3.5 x 20 pan head t-cut) (only available with 7) usually ships 3-26 days
9 999-1268 Screw M6-1 x 12mm socket head stainless steel $0.99 1 ships same day
10 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 2 ships same day
11 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
12 N/A Not available Call for price 1 (sleeve) (only available with 7) usually ships 3-26 days
13 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
14 375-1464 Side brush lift cable kit $253.55 1 (includes 15-16) usually ships 5-16 days
15 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 1 ships same day
16 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
17 275-7929 Wire harness kit $480.59 1 usually ships 5-16 days
18 275-6549 Controller kit $1,036.97 1 (includes 19) ships same day
19 N/A Not available Call for price 3 (screw 2.9 x 13 pan) (only available with 18) usually ships 3-26 days
20 275-6573 Push button switch $67.98 1 ships same day
21 275-6551 Instrument panel decal $49.72 1 usually ships 5-16 days
22 275-6523 Knob kit $110.55 1 ships same day
23 275-6533 Decal kit $186.78 1 usually ships 1-5 days
