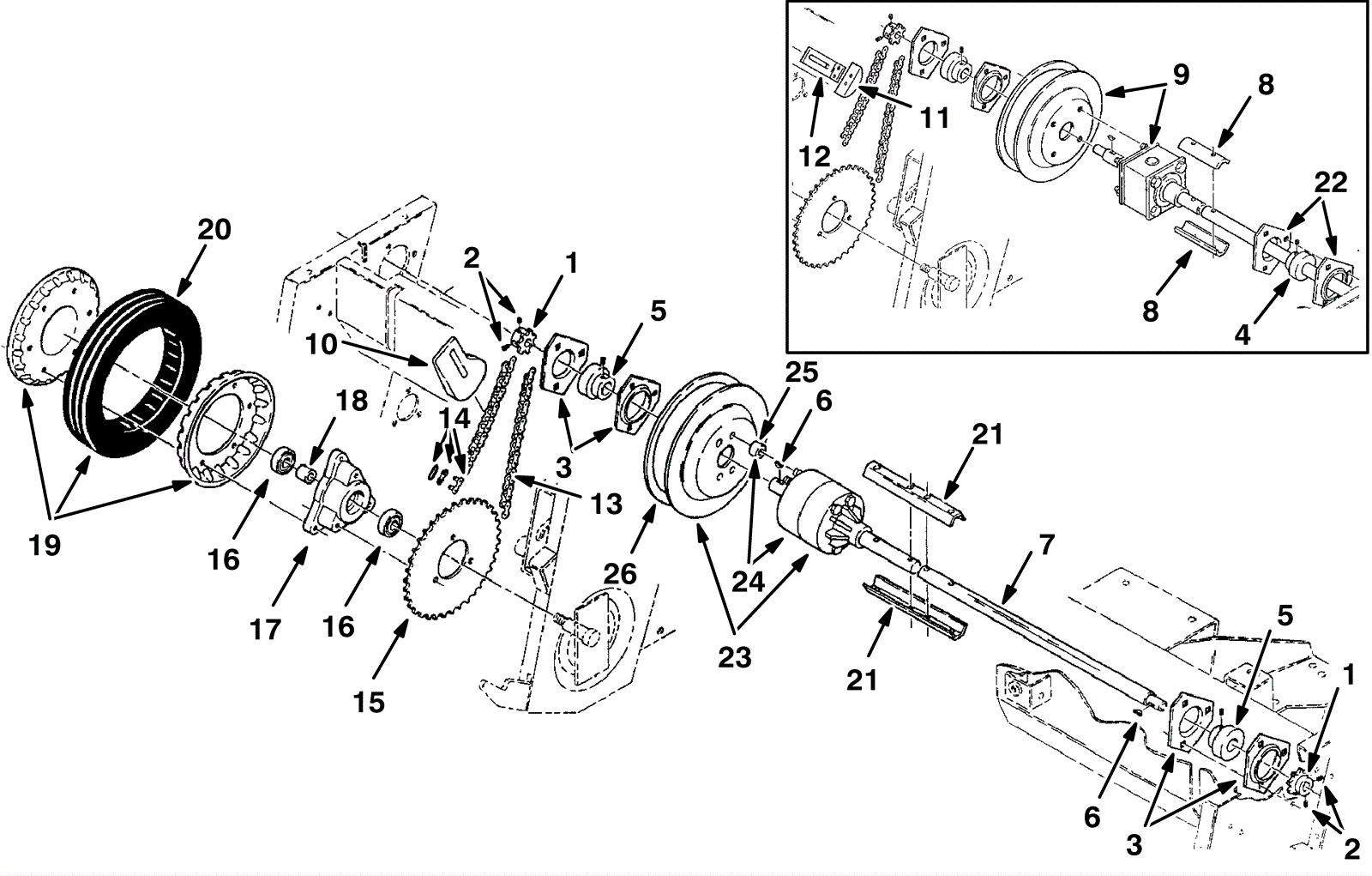

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
375-4759
|
Sprocket replacment kit (OBSOLETE) |
Call for price
|
2 |
(before sn 004429) |
usually ships 5-16 days |
1b |
275-1830
|
SPROCKET, 41, 08TOOTH, 0.50B (Tennant Industrial) |
$105.71
|
2 |
(after sn 004428) |
usually ships 5-16 days |
2a |
175-9317
|
Screw #10 set |
$3.30
|
4 |
(before sn 004429) |
usually ships 5-16 days |
2b |
275-1831
|
SCREW, SET, .25-20 X 0.31, NL (Tennant Industrial) |
$7.35
|
4 |
(after sn 004428) |
usually ships 1-5 days |
3 |
275-1832
|
FLANGE, BRG, 1.8ID 3H (Tennant Industrial) |
$8.02
|
4 |
|
usually ships 1-5 days |
4 |
275-0492
|
Bearing with collar 3/4b 1.85d 1.06w |
$51.37
|
1 |
(before sn 002567) |
usually ships 5-16 days |
5 |
275-0492
|
Bearing with collar 3/4b 1.85d 1.06w |
$51.37
|
2 |
|
usually ships 5-16 days |
6 |
175-9081
|
Woodruff key |
$2.42
|
2 |
|
usually ships 1-5 days |
7 |
N/A
|
Not available |
Call for price
|
1 |
(Countershaft) |
usually ships 3-26 days |
8 |
375-4760
|
Coupling half (OBSOLETE) |
Call for price
|
2 |
(before sn 002567) |
usually ships 5-16 days |
9 |
375-4761
|
Differential assembly (OBSOLETE) |
Call for price
|
1 |
(before sn 003552) |
usually ships 5-16 days |
10 |
375-4761
|
Differential assembly (OBSOLETE) |
Call for price
|
2 |
(after sn 003551) |
usually ships 5-16 days |
11 |
275-1834
|
GUIDE, CHAIN, DRIVE, WHEEL (Tennant Industrial) |
$60.45
|
2 |
(before sn 003552) |
usually ships 1-5 days |
12 |
275-1834
|
GUIDE, CHAIN, DRIVE, WHEEL (Tennant Industrial) |
$60.45
|
2 |
(before sn 003552) |
usually ships 1-5 days |
13 |
275-1835
|
CHAIN, RLR, 41 X 076 PITCHES, W/ LINK (OBSOLETE) |
$111.06
|
2 |
(includes 14) |
usually ships 5-16 days |
14 |
275-1836
|
LINK, CHAIN, RLR, #41 (Tennant Industrial) |
$5.85
|
2 |
|
usually ships 5-16 days |
15 |
275-1837
|
SPROCKET, 41, 45TOOTH, 2.250B, PNTD (Tennant Industrial) |
$73.65
|
2 |
|
usually ships 5-16 days |
16 |
175-9094
|
Ball bearing |
$14.63
|
4 |
|
usually ships 5-16 days |
17 |
275-1838
|
HUB, WHEEL, 3 BOLT 3.00BC (Tennant Industrial) (OBSOLETE) |
$1,320.97
|
2 |
|
usually ships 5-16 days |
18 |
275-1839
|
TUBE, 0.66ID 0.88OD 00.6L, STL, PL (Tennant Industrial) |
$29.06
|
2 |
|
usually ships 1-5 days |
19 |
275-1840
|
TIRE ASSY, SOLID, 10.0 X 2.0 4.5BC 6BOLT (Tennant Industria |
$212.09
|
2 |
(includes 20) |
usually ships 1-5 days |
20 |
275-1841
|
TIRE, 10.0X2.00 [EHS] (Tennant Industrial) |
$124.42
|
1 |
|
usually ships 5-16 days |
21 |
N/A
|
Not available |
Call for price
|
2 |
(after sn 002566) (Half coupling) |
usually ships 3-26 days |
22 |
275-1832
|
FLANGE, BRG, 1.8ID 3H (Tennant Industrial) |
$8.02
|
2 |
(before sn 002567) |
usually ships 1-5 days |
23 |
275-1843
|
DIFFERENTIL, SHEAVE (Tennant Industrial) |
$579.49
|
1 |
(after sn 003551) (includes 24, 25, 26) |
usually ships 1-5 days |
24 |
275-1844
|
DIFFERENTIAL KIT, F/12960, REPLMT (Tennant Industrial) |
$576.15
|
1 |
(after sn 003551) (includes 25) |
usually ships 1-5 days |
25 |
275-1845
|
BUSHING, SLEEVE, 0.34B .066D 0.30L (Tennant Industrial) |
$6.35
|
4 |
(after sn 003551) |
usually ships 1-5 days |
26 |
275-1846
|
SHEAVE, FLAT, 6.8D 1.42W 2.12B (Tennant Industrial) |
$138.94
|
1 |
(after sn 003551) |
usually ships 1-5 days |
