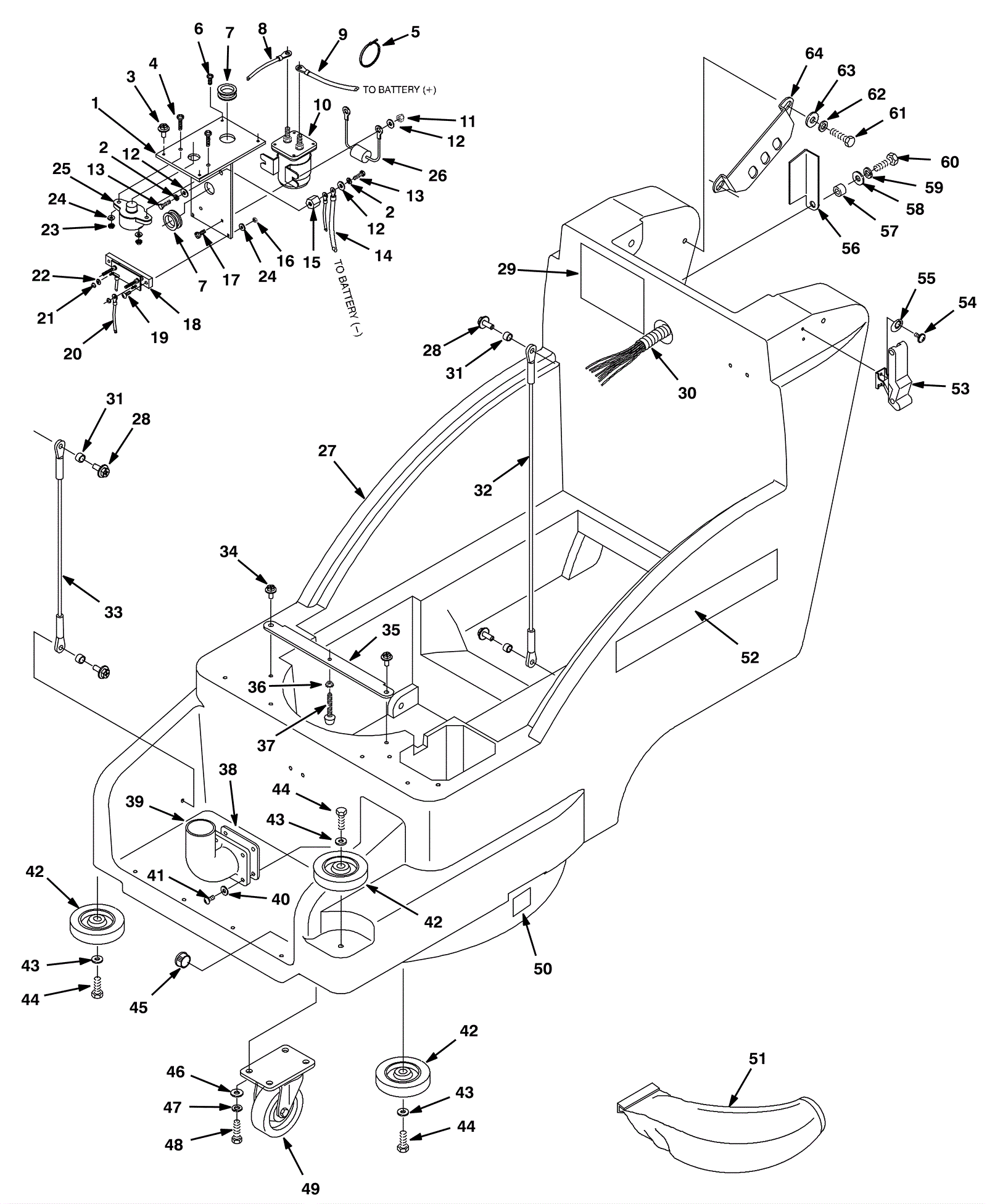

Main Housing Assembly

#PartDescription ReqNotesAvailability
1 175-1184 Bracket 1
2 999-0632 Washer 1/4 split lock stainless steel 2
3 999-1383 Screw M6-1 x 16mm hex head stainless steel 3
4 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 2
5 175-0921 Wire tie 1
6 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 1
7 175-1179 Grommet 2
8 175-1192 6 inch wire assembly (black) (OBSOLETE) 1
9 175-1191 46 inch wire assembly (red) (OBSOLETE) 1
10 275-0639 36V solenoid 1
11 999-0497 Nut M6-1 nylon insert lock stainless steel 2
12 999-0016 Washer 1/4 flat plain finish 2
13 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
14 175-1190 27 inch wire assembly (black) (OBSOLETE) 1
15 175-3226 Insulated stand off 1
16 999-0740 Nut M5-.8 hex stainless steel 2
17 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
18 175-1189 Shunt 1
19 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 2
20 175-1187 6 inch wire assembly (black) 1
21 999-0015 Nut 1/4-20 k-lock zinc plated 2
23 999-0740 Nut M5-.8 hex stainless steel 2
24 999-0393 Washer 3/16 flat aluminum 4
25 175-1185 80amp circuit breaker 1
26 175-2757 Diode with ring terminals (small) 1
27 175-1235 Chassis 1
28 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
29 175-1237 Battery hook up and cautions decal 1
30a 275-0747 Main wiring harness 1
30b 275-0753 Main wiring harness 1
31 275-5228 Sleeved bushing 4
32 275-5227 Galvanized cable (OBSOLETE) 1
33 175-3405 Cable 1
34 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
35 175-1226 Motor stop bracket 1
36 999-0015 Nut 1/4-20 k-lock zinc plated 1
37 175-1225 Motor stop 1
38 275-0626 Elbow gasket 1
39 175-1227 Deflector elbow 1
40 999-0393 Washer 3/16 flat aluminum 4
41 175-1228 Screw 10-16 x 1 pan head phillips 4
42 175-0117 Guide wheel with bushing 4
43 999-0024 Washer 5/16 flat stainless steel 4
44 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 4
45 175-7305 Dome plug (black) 1
46 999-0024 Washer 5/16 flat stainless steel 4
47 999-0553 Washer 5/16 medium split lock stainless steel 4
48 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1
49 175-1780 3 inch swivel caster wheel 1
50 175-1238 Moving parts decal 2
51a 175-1233 Cloth bag 1
51b 275-0628 Paper filter bag (pkg of 10) 1
52a 275-6725 SpeedGleam decal (Tennant Industrial) 2
52b 475-1285 LABEL, MODEL [NOBLES SPEEDGLEAM PLUS] 2
53 175-3369 Hood latch 2
54 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 4
55 999-1083 Washer #8 internal star lock stainless steel 4
56 275-0757 Support 1
57 175-2673 Bushing 1
58 999-0024 Washer 5/16 flat stainless steel 1
59 999-0553 Washer 5/16 medium split lock stainless steel 1
60 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1
61 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
62 999-0553 Washer 5/16 medium split lock stainless steel 4
63 999-0024 Washer 5/16 flat stainless steel 4
64 175-2728 Locking plate 2
