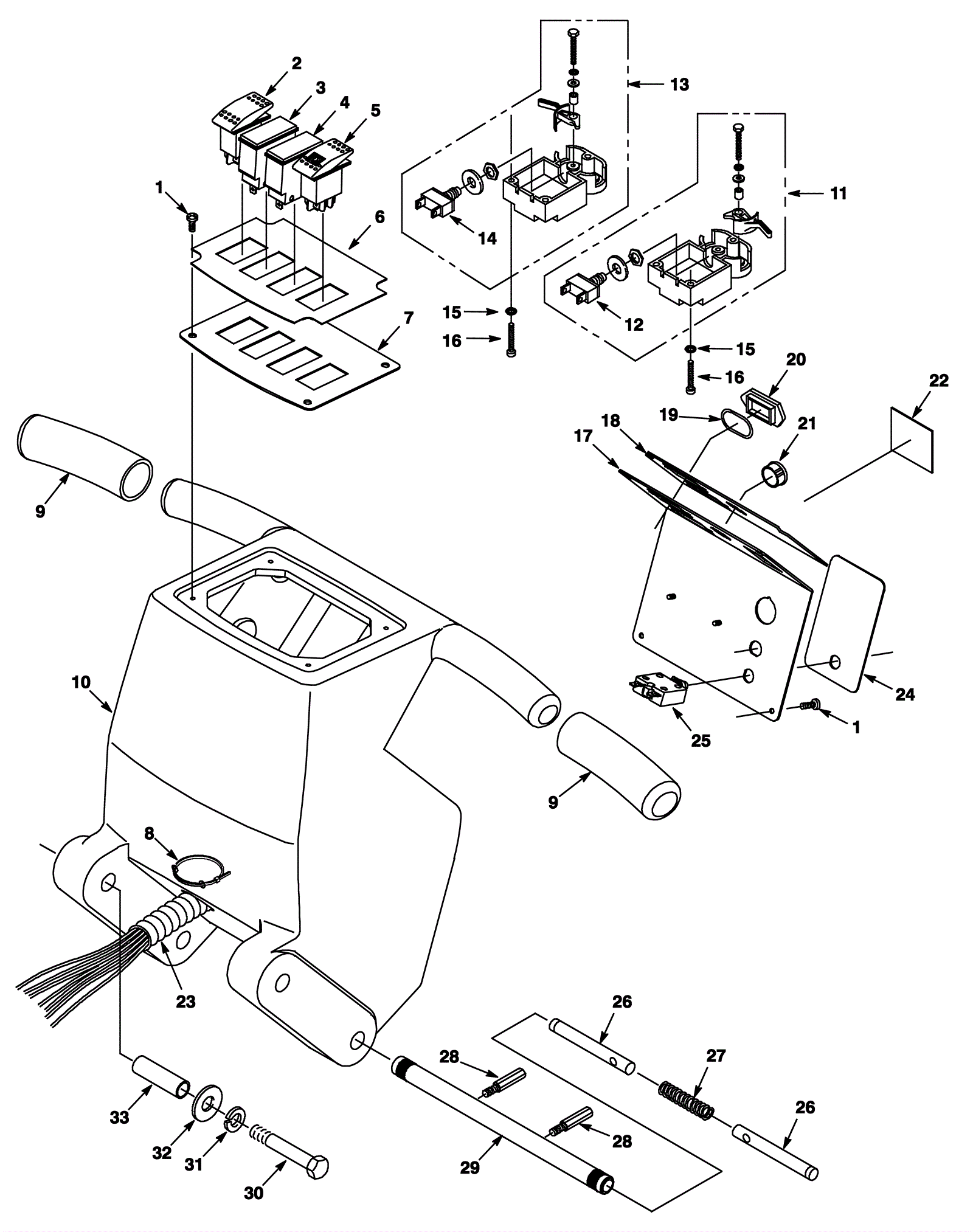

SPEEDGLEAMPLUS LEVER Control Console Assembly (Push Model)

#PartDescriptionPriceReqNotesAvailability
1 175-5815 Screw 10 x 1/2 pan head phillips black $3.83 8 ships same day
2 175-3097 Momentary rocker switch $45.87 1 usually ships 10-16 days
3 175-1159 Pad pressure gauge $56.98 1 ships same day
4 175-1161 36V battery voltage meter $70.84 1 usually ships 10-16 days
5 175-3098 Lighted on/off rocker switch $33.55 1 usually ships 10-16 days
6 275-0749 Switch panel decal $23.43 1 usually ships 1-5 days
7 275-0741 Upper panel $23.32 1 usually ships 10-16 days
8 175-0921 Wire tie $4.88 1 usually ships 10-16 days
9 275-4706 Handle grip $6.49 2 ships same day
10 275-0750 Control housing $737.55 1 usually ships 10-16 days
11 275-4704 Left hand console trigger assembly $57.86 1 (includes 12) ships same day
12 375-0044 Push switch $18.15 1 usually ships 10-16 days
13 275-4697 Right hand console trigger assembly $57.86 1 (includes 14) usually ships 10-16 days
14 375-0044 Push switch $18.15 1 usually ships 10-16 days
15 999-1083 Washer #8 internal star lock stainless steel $0.99 6 ships same day
16 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 6 usually ships 12-18 days
17 275-0743 Lower panel $38.50 1 usually ships 1-5 days
18 275-0751 Meter panel decal $11.66 1 usually ships 1-5 days
19 175-3144 O-ring $4.22 2 usually ships 10-16 days
20 175-3646 Hour meter plug $10.01 2 ships same day
21 175-3127 Plug $4.88 1 usually ships 10-16 days
22 175-2649 Do not spray decal $5.28 1 usually ships 10-16 days
23 275-0753 Main wiring harness $270.60 1 usually ships 1-5 days
24 275-0752 Circuit breaker decal $14.30 1 usually ships 1-5 days
25 175-1186 15amp circuit breaker $18.37 1 ships same day
26 175-3109 Handle locking pin $21.23 2 usually ships 1-5 days
27 175-2712 Spring $5.50 1 usually ships 1-5 days
28 175-2710 Handle adjustment pin $17.05 2 usually ships 1-5 days
29 175-3108 Handle adjustment tube $68.53 1 usually ships 1-5 days
30 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel $0.99 2 ships same day
31 999-0126 Washer 1/2 split lock $1.28 2 ships same day
32 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
33 175-2714 Bushing $7.81 2 usually ships 1-5 days
