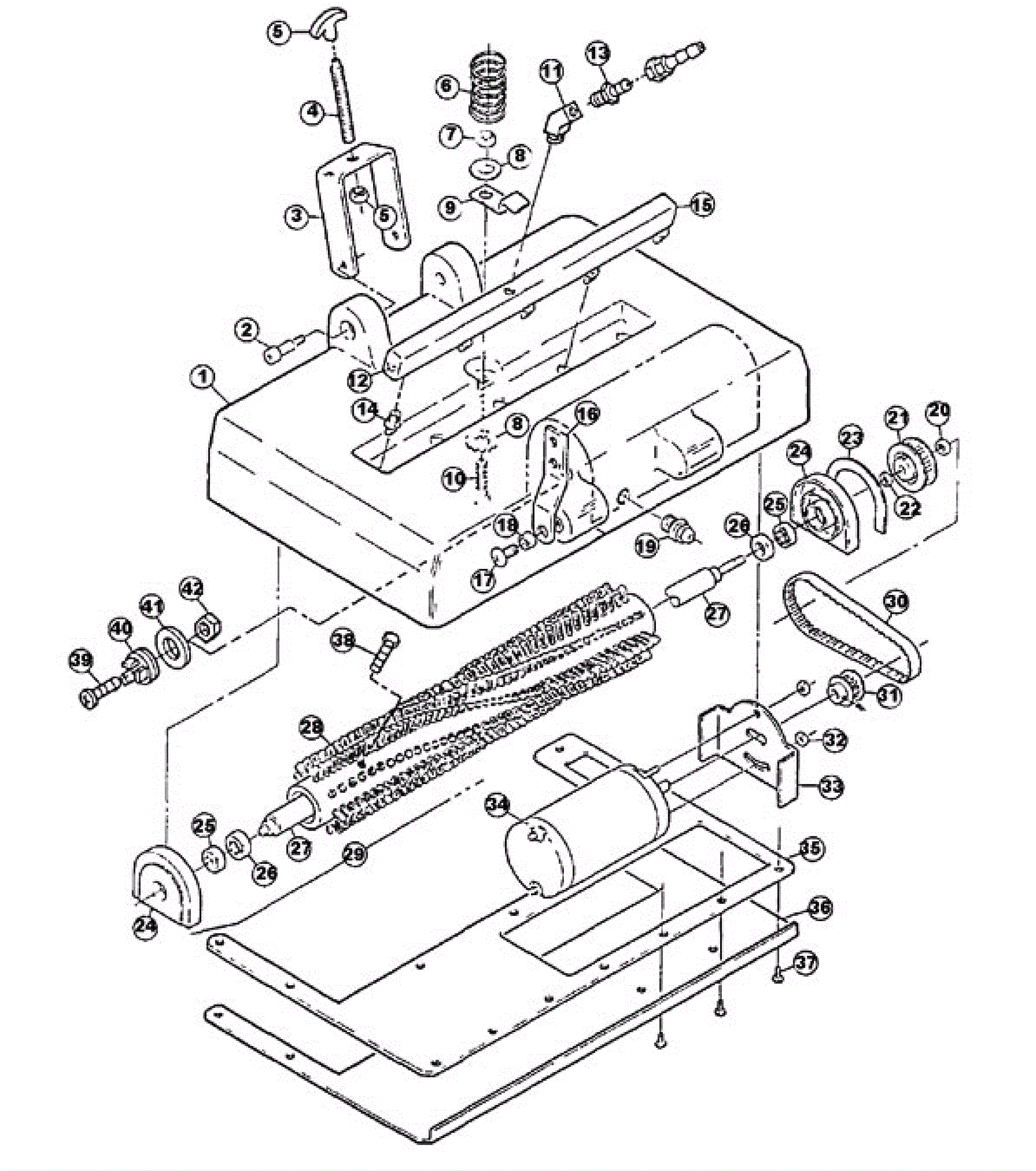

Base Assembly

#PartDescription ReqNotesAvailability
1 175-3538 20 inch base (black) 1
2 175-6156 Screw 3/8 x 3/4 shoulder 2
3 N/A Not available 1 (Bracket)
4 175-6114 Threaded stud 1
5 175-6113 Height adjustment knob 1
6 475-0637 SPRING, CMPR, 0.80OD .09WIR 02.0L 1
7 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
9 N/A Not available 1 (Clamp)
10 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
11 175-6041 Elbow 1/8 x 1/8 inch 1
12 175-6121 Brass plug 3
13 175-6042 Adapter 1
14 175-1795 1/8 v-jet brass nozzle 5
15 175-6040 20 inch spray bar manifold 1
16 N/A Not available 1 (Bracket)
17 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips 2
18 175-6154 Spacer 2
19 N/A Not available 1 (Cord grip)
20 999-0430 Nut 5/16-18 hex jam plain finish 1
21 175-6140 Brush pulley 1
22 175-6139 Spacer 1
23 175-6143 Bearing block gasket 1
24 175-6133 Bearing block 2
25 175-0069 Brush bearing 2
26 775-0402 Brush bearing seal 2
27 175-6138 20 inch brush shaft 1
28 175-6136 Scrubbing brush - CYLINDRICAL 1
29 675-9929 20 inch brush assembly 1
30 175-6141 Brush drive belt 1
31 175-6129 Motor pulley (Tennant Industrial) 1
32 999-0239 Nut 10-32 k-lock zinc plated 2
33 175-6130 Motor bracket 1
34a 175-6131 120V brush motor 1
34b 175-6132 Drive Motor Brush 230V 1
35 175-6235 20 inch base gasket 1
36 175-6145 20 inch brush base plate (black) 1
37 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 12
38 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
39 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 1
40 175-6052 15amp rectifier 1
41 999-0144 Nut 6-32 k-lock zinc plated 1
