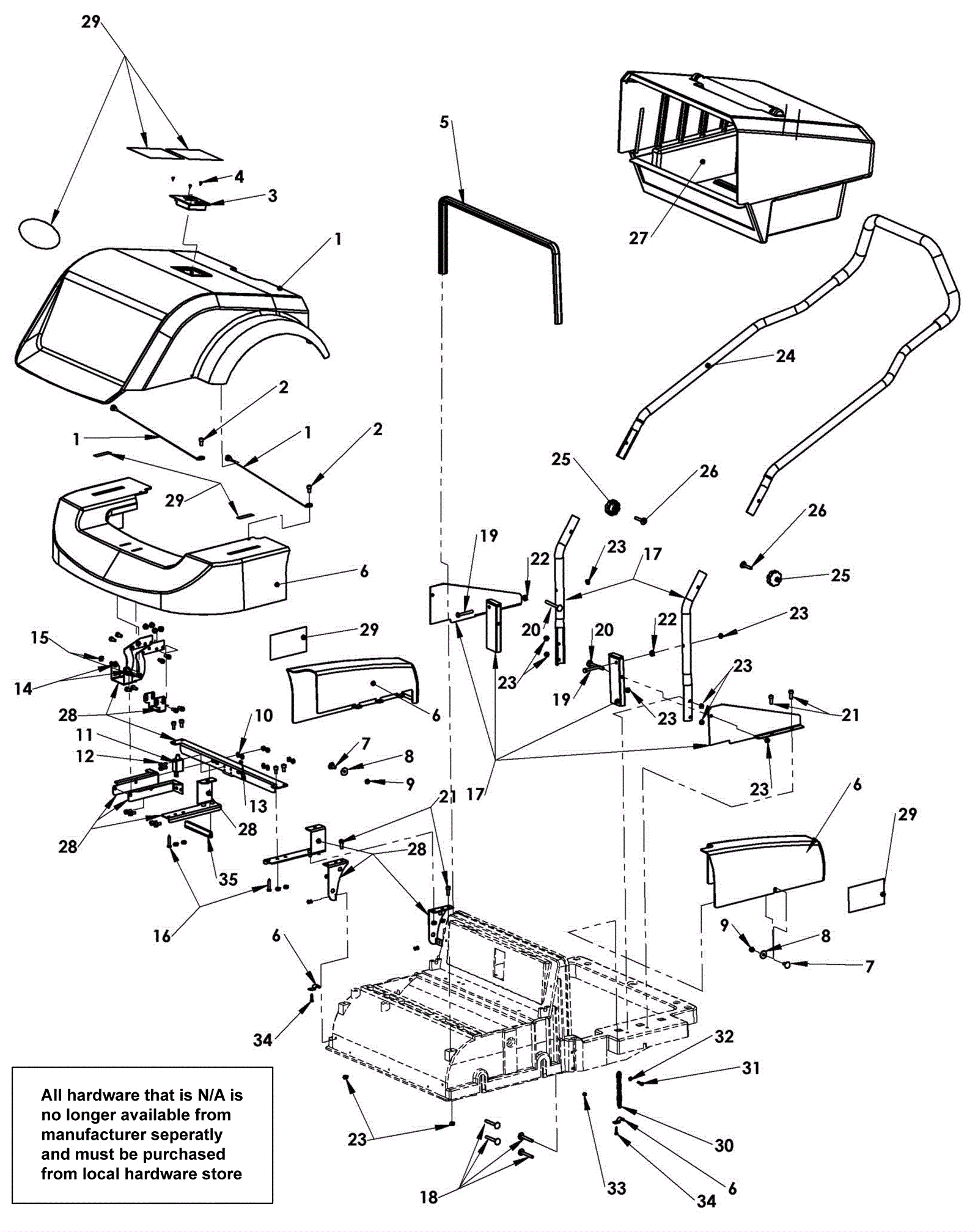

SCOUT 3B Cover and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8995 Front cover assembly $117.15 1 (includes item 2) usually ships 5-16 days
2 999-1268 Screw M6-1 x 12mm socket head stainless steel $0.99 2 ships same day
3 375-4408 Controller assembly $934.45 1 (includes 4) usually ships 5-16 days
4 N/A Not available Call for price 3 (Screw 2.9 X 6.5 pan head thread cutting) usually ships 3-26 days
5 375-1642 Seal kit $76.01 1 usually ships 5-16 days
6 275-8996 Shroud assembly $140.69 1 (includes 7-10) usually ships 5-16 days
7 999-1646 Bolt M6-1 x 16mm carriage stainless steel $8.13 2 usually ships 1-5 days
8 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
10 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
11 275-8997 Switch assembly $48.40 1 (includes 12-16) usually ships 5-16 days
12 999-1301 Screw M5-.8 x 16mm socket head stainless steel $0.99 2 ships same day
13 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
14 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 2 ships same day
15 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
16 999-1949 Screw M5-.08 x 30mm pan head stainless steel $0.99 2 usually ships 11-24 days
17 275-8998 Handle mounting assembly $386.98 1 (includes 18-23) usually ships 5-16 days
18 999-1950 Bolt M6-1 x 50mm carriage stainless steel $5.61 4 usually ships 11-24 days
19 999-0781 Screw M6-1 x 45mm hex head $0.99 2 ships same day
20 999-1951 Bolt M6-1 x 60mm carriage stainless steel $1.87 2 usually ships 11-24 days
21 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 6 ships same day
22 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 2 usually ships 1-5 days
23 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 12 ships same day
24 375-1641 Handle kit with soft grip $313.83 1 usually ships 5-16 days
25 375-1643 Handle knob kit with carriage bolt $20.79 1 (includes 26) usually ships 5-16 days
26 999-1952 Bolt M6-1 x 35mm carriage stainless steel $4.42 2 usually ships 11-24 days
27 275-8999 Hopper assembly $295.57 1 usually ships 5-16 days
28 375-4406 Shroud mounting assembly $369.16 1 usually ships 5-16 days
29 375-4407 Decal assembly $213.18 1 usually ships 5-16 days
30 275-6511 Static strap kit $3.96 1 (includes 31-35) usually ships 5-16 days
31 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 1 ships same day
32 999-9089 Washer M4 flat stainless steel $0.99 1 ships same day
33 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 ships same day
34 999-1661 Screw M3-.5 x 13mm pan head thread cutting $0.99 2 usually ships 1-5 days
35 375-1642 Seal kit $76.01 1 usually ships 5-16 days
