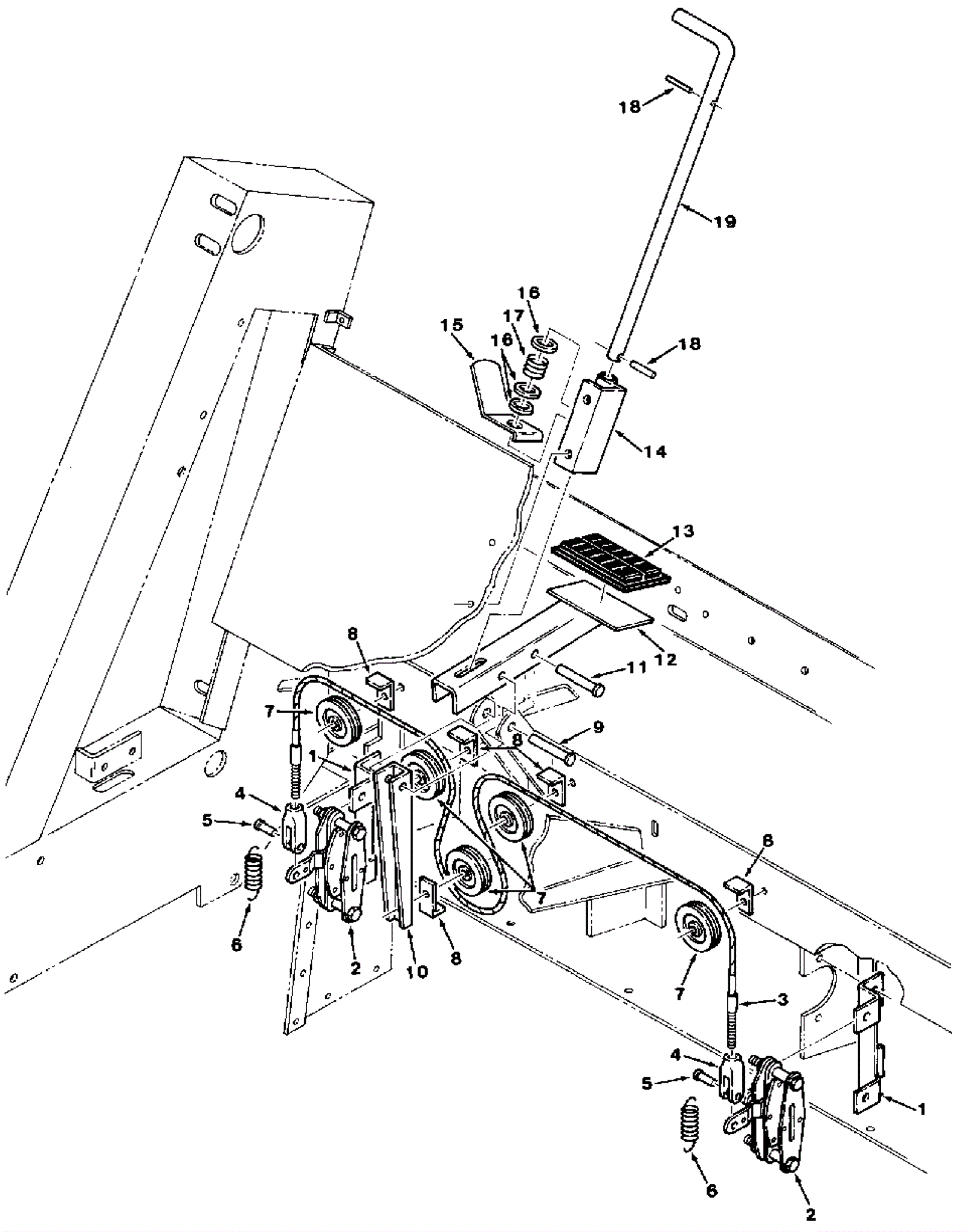

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(Break bracket) |
|
2 |
675-0533
|
BRAKE ASSY, DISC, MECH, 04.0D .15T (Tennant Industrial) |
2 |
|
|
3 |
N/A
|
Not available |
1 |
(Break cable) |
|
4 |
275-8412
|
CLEVIS, ADJ, 0.25PIN, 0.25-28 RH, PL (Tennant Industrial) |
2 |
|
|
5 |
N/A
|
Not available |
2 |
(Clevis Pin) |
|
6 |
275-9360
|
Extension spring |
2 |
|
|
7 |
N/A
|
Not available |
5 |
(Cable pulley) |
|
8 |
N/A
|
Not available |
5 |
(L bracket) |
|
9 |
173-1595
|
Clevis pin |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(Pulley channel) |
|
11 |
175-2111
|
Clevis pin |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(Break pedal) |
|
13 |
175-3279
|
Pedal pad |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(Parking break bracket) |
|
15 |
N/A
|
Not available |
1 |
(Release lever) |
|
16 |
999-0114
|
Washer 1/2 SAE flat |
3 |
|
|
17 |
N/A
|
Not available |
1 |
(Compression spring) |
|
18 |
475-8020
|
PIN, ROLL, .187D X 0.75L, .187/.192 (Tennant Industrial) |
2 |
|
|
19 |
N/A
|
Not available |
1 |
(Parking break rod) |
|
