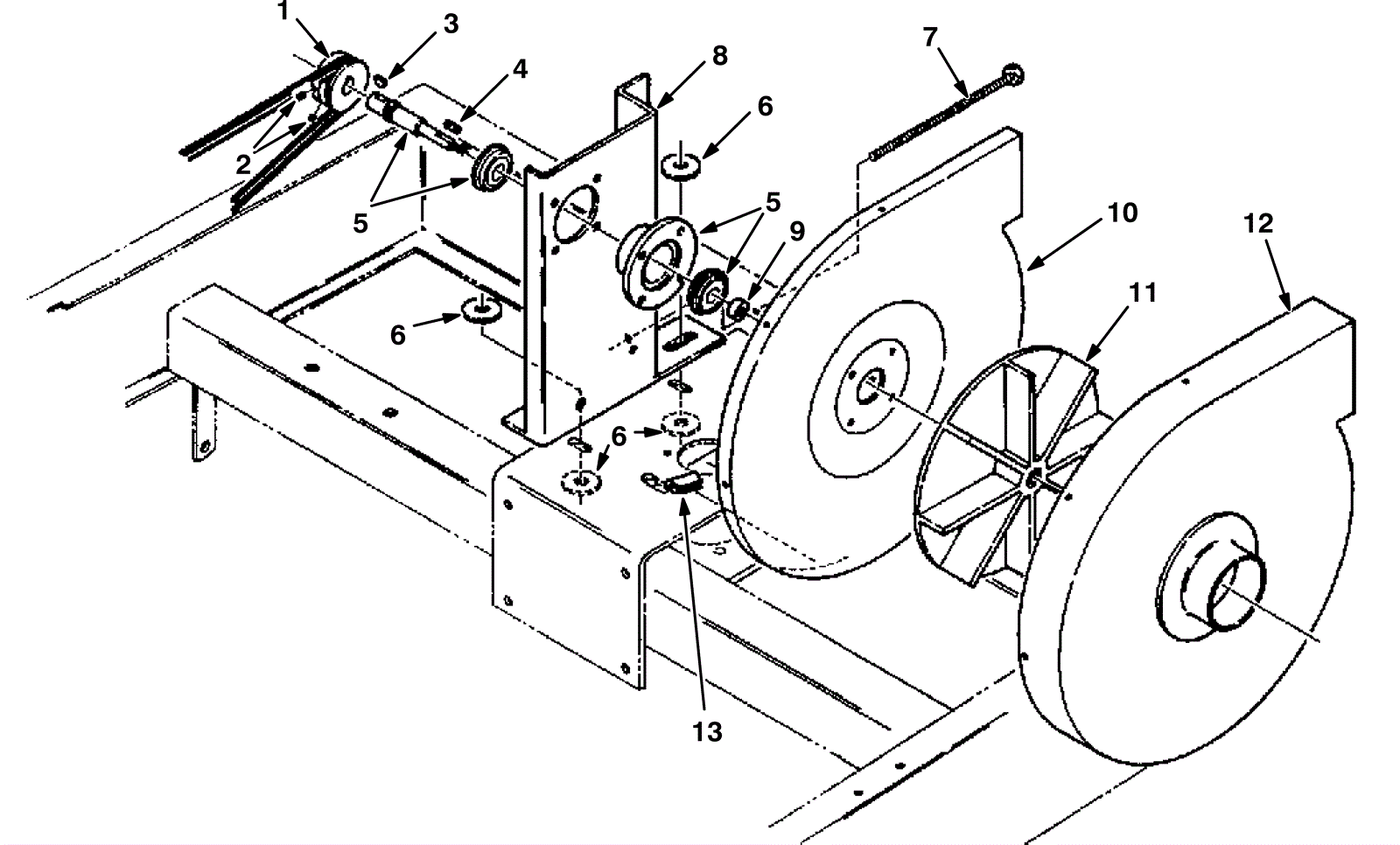

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
1 |
(Fan sheave) |
usually ships 3-26 days |
2 |
275-0724
|
Screw M1/4 - 20 x 5/16 socket set |
$5.28
|
2 |
|
usually ships 1-5 days |
3 |
175-9159
|
Woodruff key |
$3.04
|
1 |
|
usually ships 1-5 days |
4 |
175-9158
|
Square key 1/8 x 1/8 inch |
$4.09
|
1 |
|
usually ships 1-5 days |
5 |
175-9157
|
Shaft |
$271.48
|
1 |
|
usually ships 10-16 days |
6 |
275-3214
|
WASHER, FLAT, 0.39B 1.38D .19, STL, PL (Tennant Industrial) |
$6.17
|
4 |
|
usually ships 1-5 days |
7 |
N/A
|
Not available |
Call for price
|
1 |
(Full thread screw) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
Call for price
|
1 |
(Fan mount bracket) |
usually ships 3-26 days |
9 |
175-9155
|
Spacer |
$14.30
|
1 |
|
usually ships 1-5 days |
10 |
N/A
|
Not available |
Call for price
|
1 |
(Housing backing plate) |
usually ships 3-26 days |
11a |
N/A
|
Not available |
Call for price
|
1 |
(Impeller) |
usually ships 3-26 days |
11b |
175-9154
|
Impeller 9 x 3/8 |
$92.40
|
1 |
|
usually ships 1-5 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(Fan housing) |
usually ships 3-26 days |
13 |
275-8203
|
Molding |
$45.21
|
2 |
|
usually ships 1-5 days |
