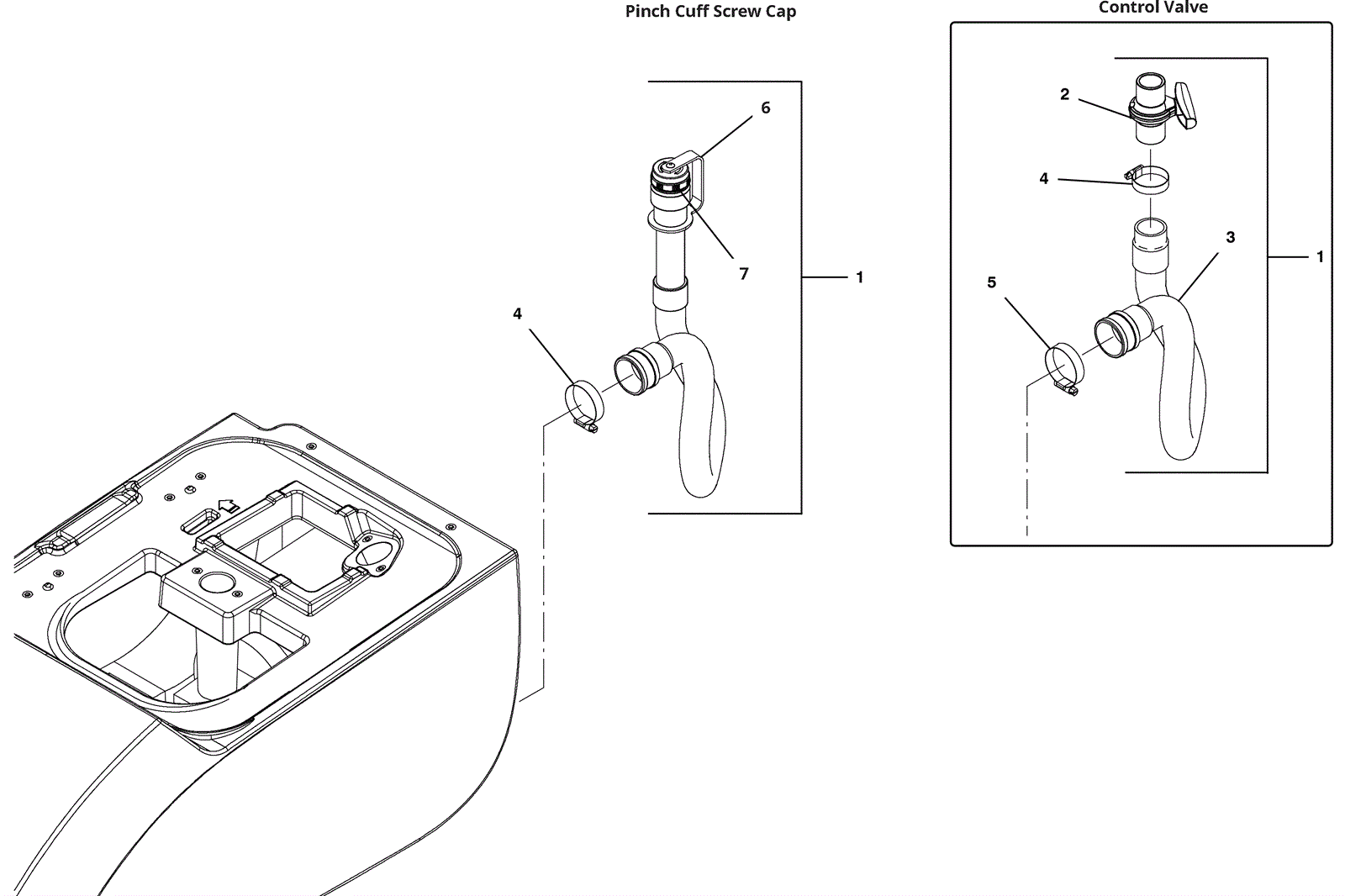

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-3435
|
Drain Hose w/valve kit (OBSOLETE) |
1 |
(includes 2-4) (before SN 10948943) (replaced by 1b) (control valve) |
|
1b |
375-3216
|
Drain hose assembly (black) |
1 |
(includes 6a and 7a) (after SN 10984820) (pinch cuff screw cap) |
|
2 |
375-0212
|
2 way ball valve (OBSOLETE) |
1 |
(before SN 10948943) (replaced by 1b) (control valve) |
|
3 |
375-3436
|
Hose assembly with 2 cuffs (gray) (OBSOLETE) |
1 |
(before SN 10948943) |
|
4 |
997-2000
|
Hose clamp |
1 |
(before SN 10948943) |
|
5 |
997-2003
|
Hose clamp |
1 |
|
|
6a |
375-0214
|
Drain cap assembly (black) |
1 |
(includes 7) (pinch cuff screw cap) |
|
6b |
375-0213
|
Drain cap assembly (gray) |
1 |
(includes 7) (between SN 10948943 and SN 10984820) (pinch cuff screw cap) |
|
7 |
175-5804
|
O-ring |
1 |
(pinch cuff screw cap) |
|
