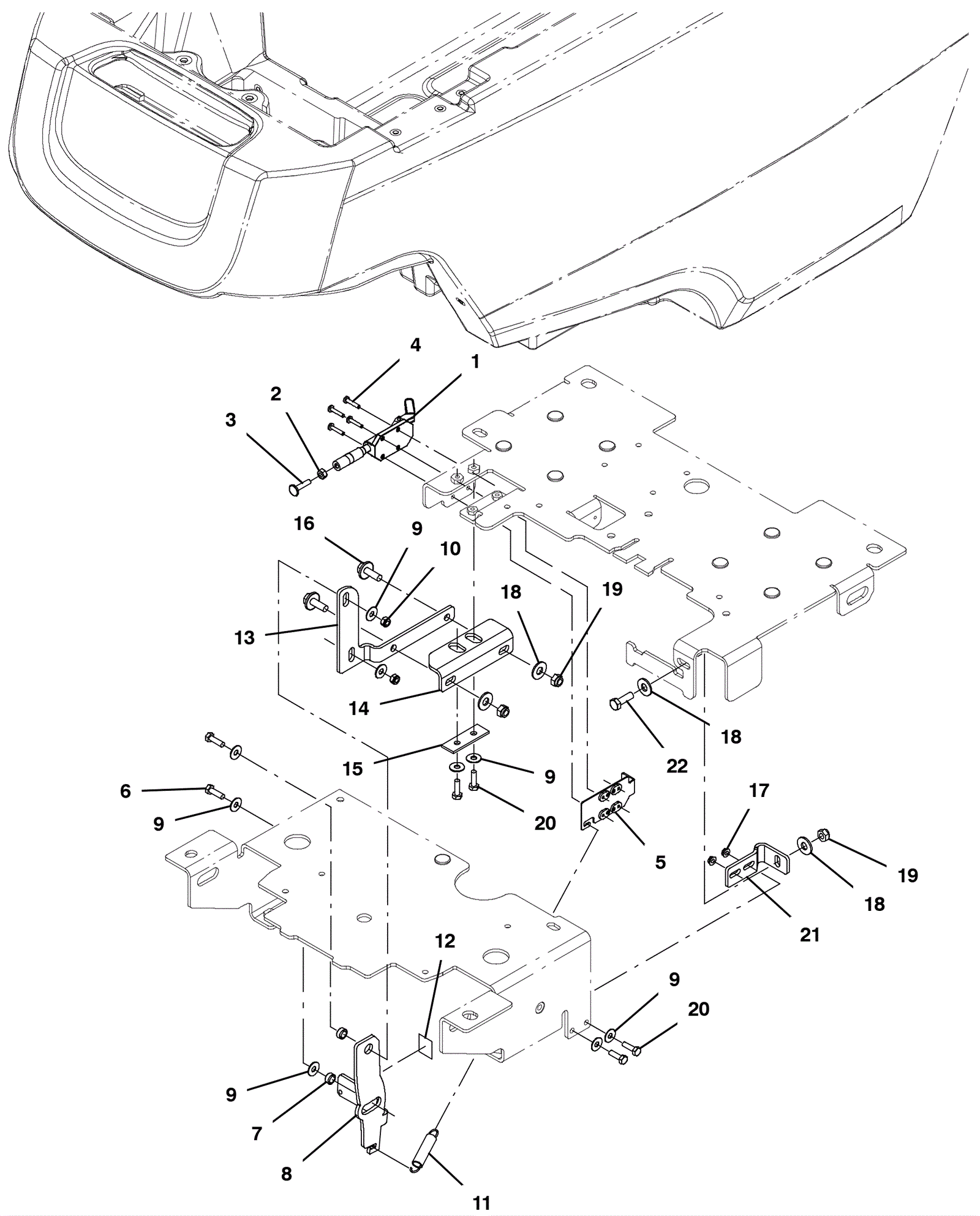

T500 Parking Brake Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3356 Parking brake clamp $64.68 1 usually ships 5-16 days
2 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
3 275-1444 Screw M6 x 25mm stainless steel $5.28 1 usually ships 5-16 days
4 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel $3.19 4 usually ships 5-16 days
5 375-3357 Brake plate weldment $30.69 1 usually ships 5-16 days
6 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 2 (after SN 11064201) ships same day
7 175-0550 Sleeve $3.74 2 ships same day
8a 375-2553 Parking shoe brake $39.93 1 (after SN 11064201) usually ships 5-16 days
8b 375-3358 Parking brake shoe $25.41 1 (before SN 11064202) usually ships 5-16 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 (qty 2 before SN 11064202) ships same day
10 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
11 175-7129 Tension spring $7.48 1 ships same day
12 375-3359 Parking brake decal $33.00 1 usually ships 5-16 days
13 375-2543 Spanning vertical bracket $36.52 1 (after SN 11064201) usually ships 5-16 days
14 375-2544 Spanning angle bracket $33.88 1 (after SN 11064201) usually ships 5-16 days
15 375-2545 Spanning bracket plate $26.07 1 (after SN 11064201) usually ships 5-16 days
16 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 2 (after SN 11064201) ships same day
17 275-5085 Nut M6-1 x 16 hex head stainless steel $2.42 2 (after SN 11064201) ships same day
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 (after SN 11064201) ships same day
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 (after SN 11064201) usually ships 11-24 days
20 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 (qty 2 before SN 11064202) ships same day
21 375-2546 Spanning bracket $40.70 1 (after SN 11064201) usually ships 5-16 days
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 (after SN 11064201) ships same day
