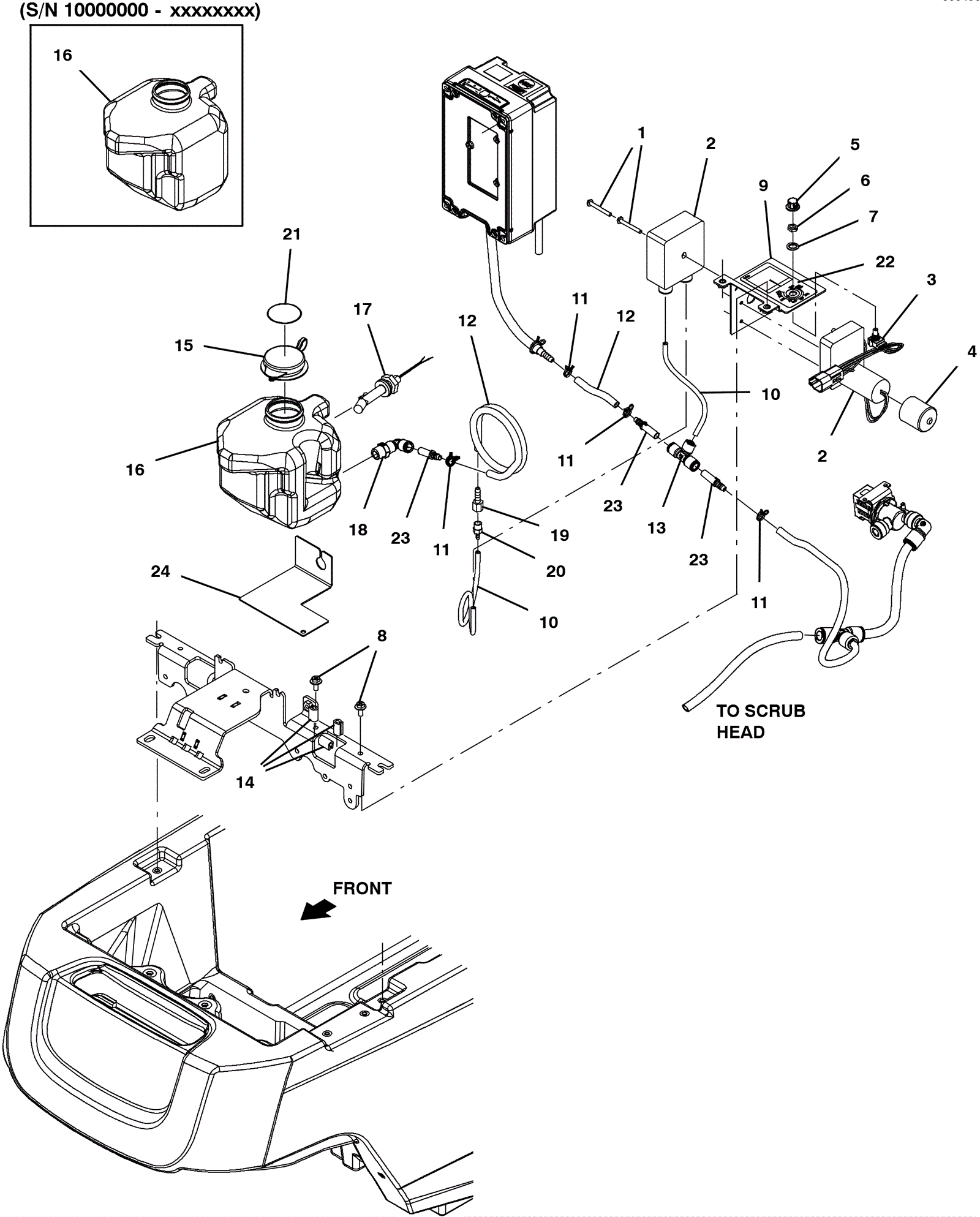

T500 Severe Environment Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-3145 Screw M5-.8 x 40mm pan head phillips stainless steel $6.01 2 usually ships 1-5 days
2a 375-0159 24V pump assembly $654.61 1 (includes 2b-3) usually ships 5-16 days
2b 375-0160 24V pump $384.89 1 usually ships 1-5 days
2c 375-0161 Hose kit $48.62 1 ships same day
3 375-0162 Potentiometer $67.21 1 usually ships 1-5 days
4 175-8773 Vinyl cap $5.83 1 usually ships 1-5 days
5 175-4281 Potentiometer knob $13.75 1 usually ships 5-16 days
6 175-2277 Nut hex head $3.30 1 usually ships 5-16 days
7 175-4494 Washer M10 $3.30 1 ships same day
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
9 375-3340 Pump bracket weldment $36.85 1 usually ships 5-16 days
10 375-3341 Clear PVC Hose $18.04 1 usually ships 5-16 days
11 175-5304 Hose clamp $3.30 4 ships same day
12 175-5305 Hose 1/4 x 3 foot $51.48 1 usually ships 5-16 days
13 375-0148 Plastic tee fitting $23.54 1 ships same day
14 275-8203 Molding $44.22 1 usually ships 1-5 days
15 275-5569 Snap cap (Tennant Industrial) $9.52 1 usually ships 1-5 days
16 375-9390 2.3L trimmed tank $70.95 1 usually ships 5-16 days
17 375-0163 Liquid level sensor $81.07 1 ships same day
18 375-0154 90 degree elbow $17.05 1 usually ships 5-16 days
19 175-3529 Brass fitting $4.95 1 ships same day
20 275-4818 Barb fitting $3.96 1 usually ships 1-5 days
21 375-3344 Detergent metering tank decal $30.25 1 usually ships 5-16 days
22 375-0245 Detergent metering decal $23.76 1 usually ships 1-5 days
23 375-1138 Plastic fitting $3.85 3 usually ships 5-16 days
24 375-9009 Sheild plate $44.33 1 usually ships 5-16 days
