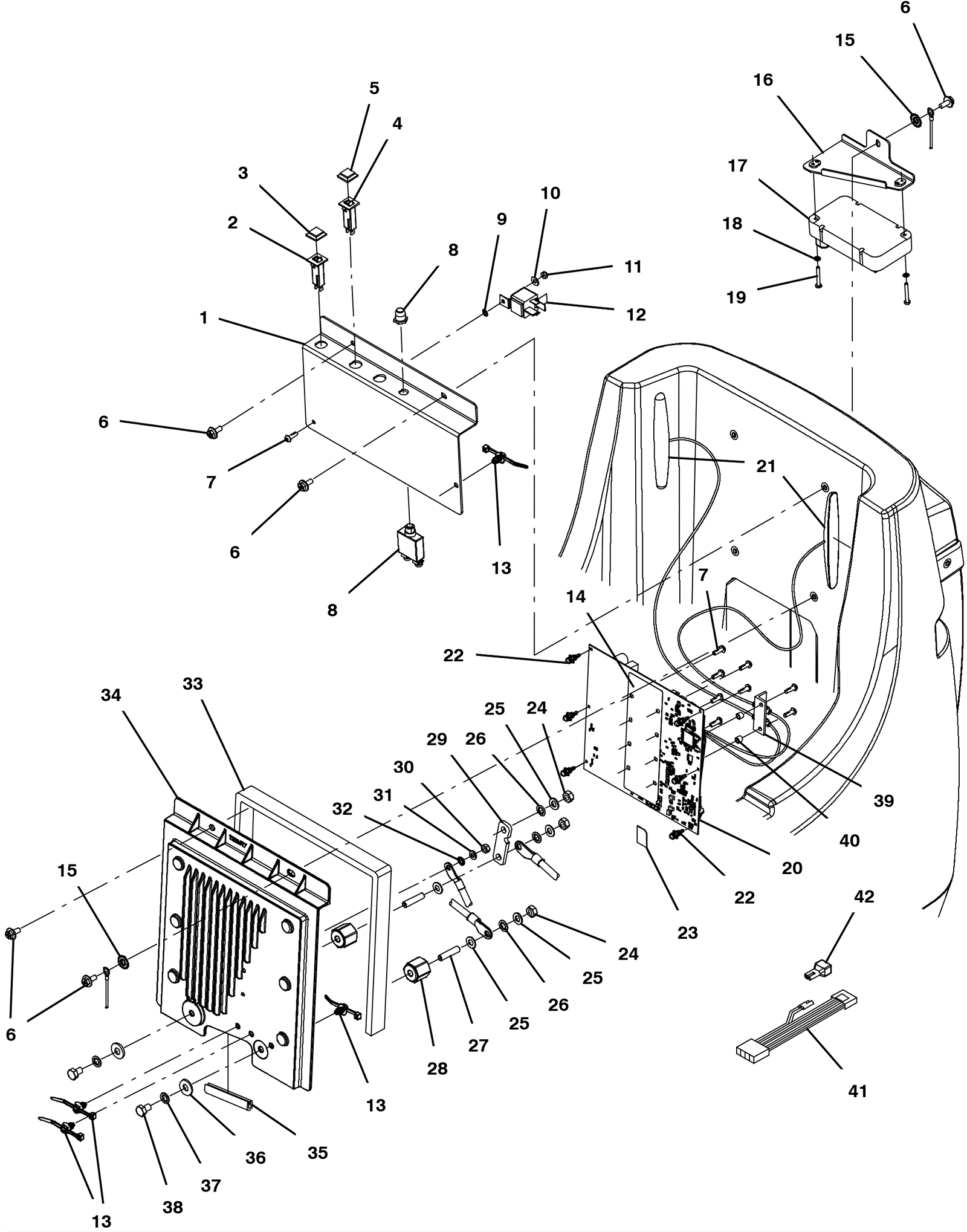

T500 Telemetry Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3231 Bracket $47.63 1 usually ships 5-16 days
2 375-0170 Circuit breaker $8.25 1 ships same day
3 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 ships same day
4 275-9986 10amp circuit breaker (Tennant Industrial) $7.52 1 ships same day
5 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 ships same day
6 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 5 ships same day
7 999-1403 Screw M8 x 16mm torx head $2.90 9 ships same day
8 375-3232 60amp circuit breaker $25.63 1 ships same day
9 999-1026 Washer #10 internal lock stainless steel $0.99 1 ships same day
10 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
11 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
12 375-3233 24V relay $19.80 1 ships same day
13 275-5197 Fir tree clip $1.65 4 usually ships 5-16 days
14 375-3236 Control board pad $19.80 1 usually ships 5-16 days
15 275-0288 Washer 1/4 internal-external lock $3.19 2 ships same day
16 375-3180 Bracket $57.64 1 usually ships 5-16 days
17 375-3234 Drive module kit $388.74 1 (requires Tennant True service or an authorized Tennant service provider) ships same day
18 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
19 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 11-24 days
20a 475-4183 KIT, CONTROL BOARD, TELEM, CI [T500] $2,122.67 1 (includes 20b-21a) (requires Tennant True service or an authorized Tennant service provider) usually ships 5-16 days
20b 275-1425 Static ground strap (Tennant Industrial) $11.19 1 ships same day
20c 375-1351 USB to USB mini cable $14.96 1 usually ships 5-16 days
22d 175-7795 Cable tie $3.85 1 ships same day
21a 375-9391 Telem antenna $59.07 2 (after SN 10997157) usually ships 5-16 days
21b 375-0171 18 inch antenna (Tennant Industrial) $89.68 1 (before SN 10994158) usually ships 1-5 days
22 275-5465 Standoff $1.43 1 usually ships 5-16 days
23 375-3337 Telemetry sim kit (USA) $157.30 1 usually ships 5-16 days
24 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.01 6 usually ships 5-16 days
25 275-5475 Washer M8-.4 x 1.6mm brass $2.42 3 usually ships 1-5 days
26 999-1053 Washer 5/16 internal star lock stainless steel $0.99 5 ships same day
27 175-4271 Screw M8 x 35mm set $3.96 3 usually ships 5-16 days
28 375-0176 Insulated stand-off $12.87 2 usually ships 1-5 days
29 375-0181 Fuse $17.60 2 usually ships 1-5 days
30 275-5479 Nut M6 x 1 (Tennant Industrial) $2.17 1 usually ships 5-16 days
31 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
32 175-4544 Washer M6 locking $4.62 1 ships same day
33 375-3237 Circuit board cover gasket $52.36 1 usually ships 5-16 days
34 375-4562 Circuitboard heatsink $98.45 1 usually ships 5-16 days
35 275-1269 3 foot trim molding $66.33 1 usually ships 1-5 days
36 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
37 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
38 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
39 375-4266 Bracket $50.27 1 usually ships 5-16 days
40 375-4267 Aluminum spacer $8.80 2 usually ships 5-16 days
41 375-4013 Electrical harness adapter $36.52 1 usually ships 5-16 days
42 175-2216 Diode plug $12.87 1 ships same day
