T500

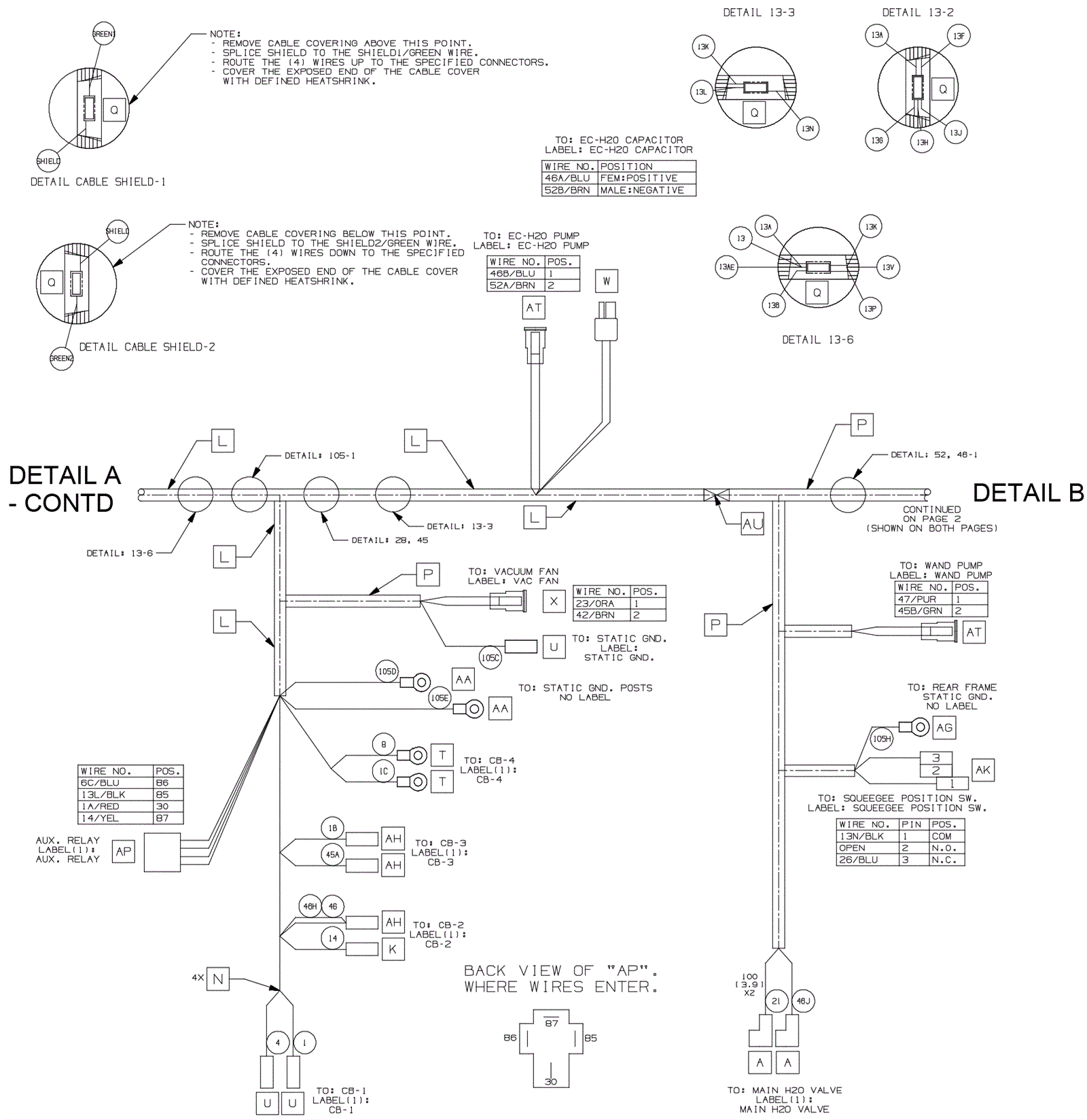

Main Electrical Harness Diagram - 2
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
375-3326
Main electrical harness
$841.06
1
usually ships 5-16 days
2
375-3327
Operator electrical harness
$179.08
1
usually ships 5-16 days
