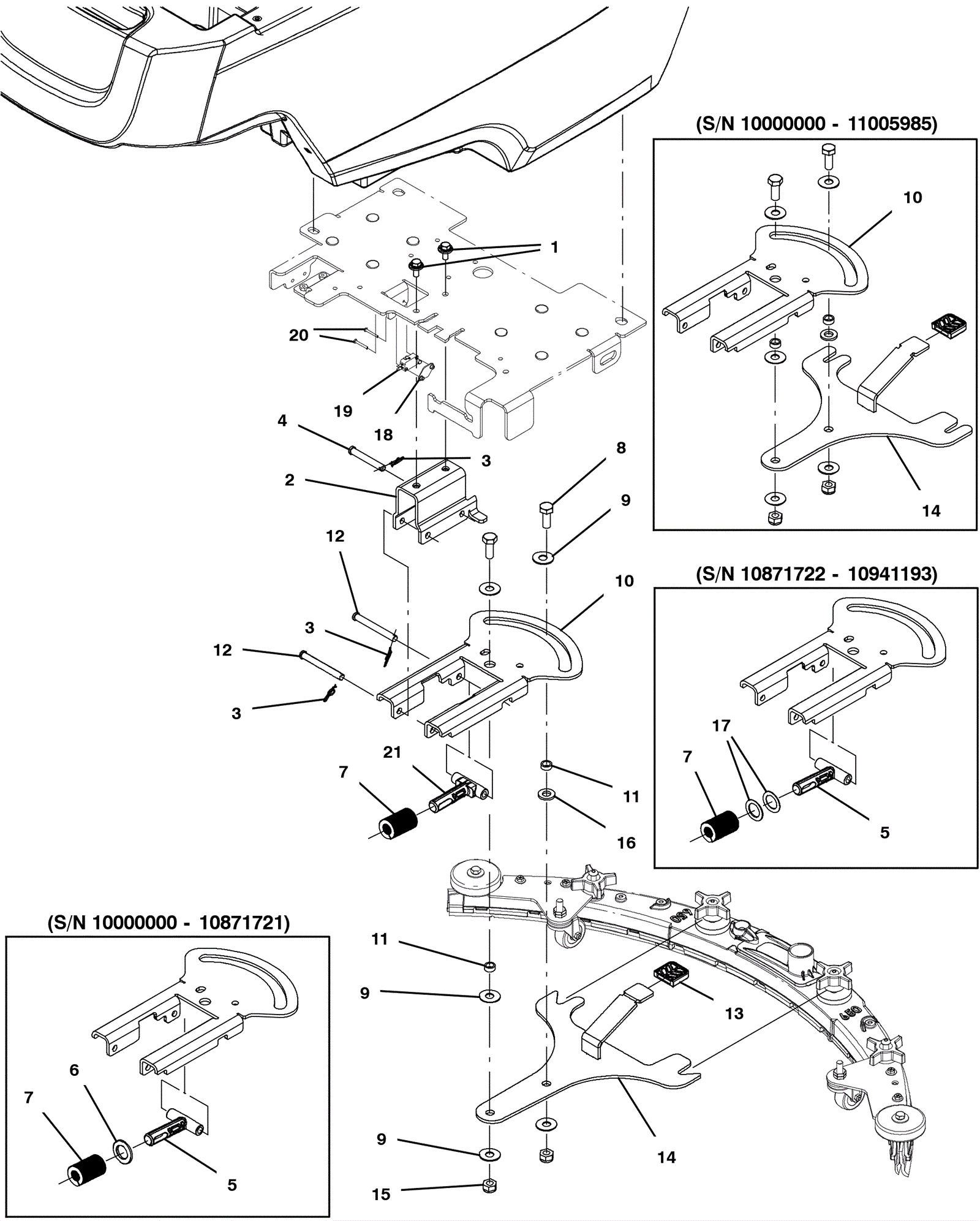

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$3.30
|
2 |
|
ships same day |
2 |
375-3268
|
Squeegee lift weldment bracket |
$58.96
|
1 |
|
ships same day |
3 |
375-0071
|
Cotter hair pin |
$1.43
|
3 |
|
ships same day |
4 |
175-3341
|
Clevis pin |
$3.96
|
1 |
|
ships same day |
5 |
375-3269
|
Spring guide |
$34.76
|
1 |
|
ships same day |
6 |
375-3259
|
Thrust washer |
$3.41
|
1 |
(before SN 10871722) |
ships same day |
7 |
375-3270
|
Compression spring |
$27.39
|
1 |
|
ships same day |
8 |
999-6696
|
Bolt M12-1.75 x 30mm stainless steel hex cap screw |
$5.19
|
2 |
|
ships same day |
9 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
$0.99
|
5 |
|
ships same day |
10 |
375-3271
|
Squeegee pivot bracket |
$87.78
|
1 |
|
ships same day |
11 |
175-7890
|
Sleeved bushing |
$3.96
|
2 |
|
ships same day |
12 |
275-8362
|
PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) |
$13.69
|
2 |
|
ships same day |
13 |
375-0266
|
Lift pedal cover |
$11.00
|
1 |
|
ships same day |
14 |
375-3272
|
Squeegee mounting weldment bracket |
$117.81
|
1 |
|
ships same day |
15 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
$2.12
|
2 |
|
ships same day |
16 |
175-0939
|
Thrust washer |
$4.95
|
1 |
|
ships same day |
17 |
175-3217
|
Washer .91b x 1.38d x .06 steel plated |
$3.96
|
2 |
(between SN 10871722 and SN 10941193) |
usually ships 5-16 days |
18 |
175-7839
|
Switch plate |
$33.00
|
1 |
|
usually ships 5-16 days |
19 |
375-0226
|
Mircroswitch |
$10.12
|
1 |
|
ships same day |
20 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
$0.99
|
2 |
|
ships same day |
21 |
375-4606
|
Spring guide |
$11.11
|
1 |
(after SN 10941193) |
ships same day |
