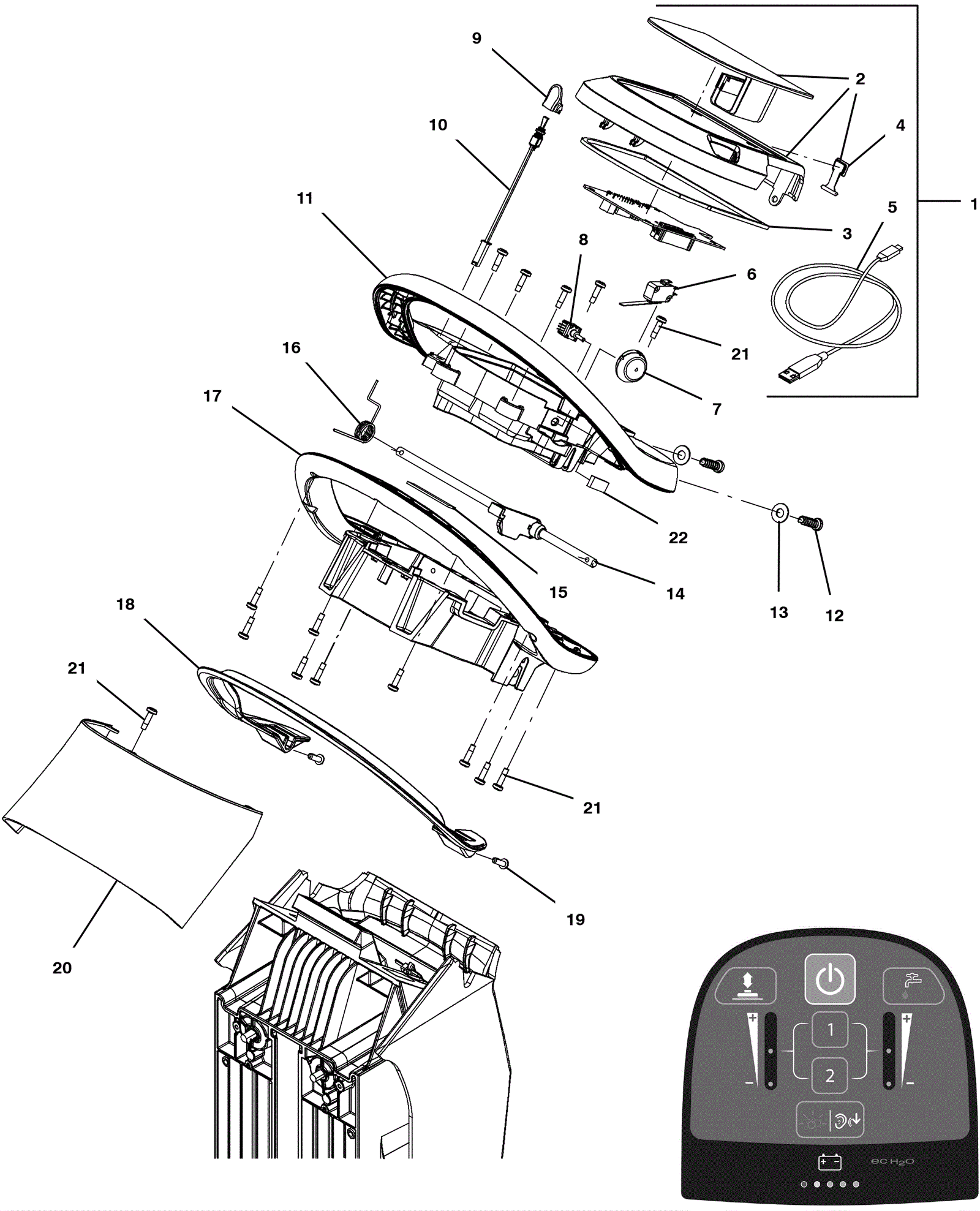

T500 Console Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-2547 Membrane bezel kit $520.52 1 (includes 2a, 3-5) (pro-membrane panel without telemetry) (requires Tennant True service or an authorized Tennant service provider) (after SN 11062241) usually ships 10-16 days
1b 375-3266 Membrane bezel kit $625.24 1 (inclues 2b, 3-5) (pro-membrane panel) (requires Tennant True service or an authorized Tennant service provider) (before SN 11062242) ships same day
1c 375-0241 LCD bezel kit $1,852.84 1 (includes 3-5) (pro-panel LCD) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
2a 375-2548 Membrane scren kit $105.82 1 (includes 3-4) (pro-membrane panel without telemetry) (after SN 11062241) usually ships 10-16 days
2b 375-3267 Screen kit (OBSOLETE) $175.45 1 (includes 3-4) (pro-membrane panel) (before SN 11062242) usually ships 10-16 days
3 375-9374 Console gasket $39.82 1 (after 02/2020) usually ships 10-16 days
4 275-5430 USB cap $7.37 1 usually ships 10-16 days
5 375-1351 USB to USB mini cable $16.39 1 usually ships 10-16 days
6 275-5433 Switch $10.34 1 usually ships 10-16 days
7 375-4600 Speed range dial $8.80 1 ships same day
8 275-5452 Potentiometer $87.56 1 ships same day
9 275-5453 Toggle cap $7.37 1 ships same day
10 275-5454 Toggle switch assembly $81.84 1 usually ships 10-16 days
11 275-5434 Top handle housing $91.30 2 usually ships 10-16 days
12 375-3186 Screw $9.79 2 usually ships 10-16 days
13 999-0024 Washer 5/16 flat stainless steel $1.34 3 usually ships 12-18 days
14 275-5436 Handle shaft assembly $20.35 1 usually ships 10-16 days
15 275-5893 Seal $27.61 1 usually ships 1-5 days
16 275-5435 Spring $31.35 1 usually ships 1-5 days
17 275-5437 Bottom handle housing $91.85 1 usually ships 10-16 days
18 275-5438 Bail $49.61 1 usually ships 10-16 days
19 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
20 275-5439 Handle cover $19.36 1 usually ships 10-16 days
21 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.30 15 ships same day
22 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT $3.43 1 (after 02/2020) usually ships 10-16 days
